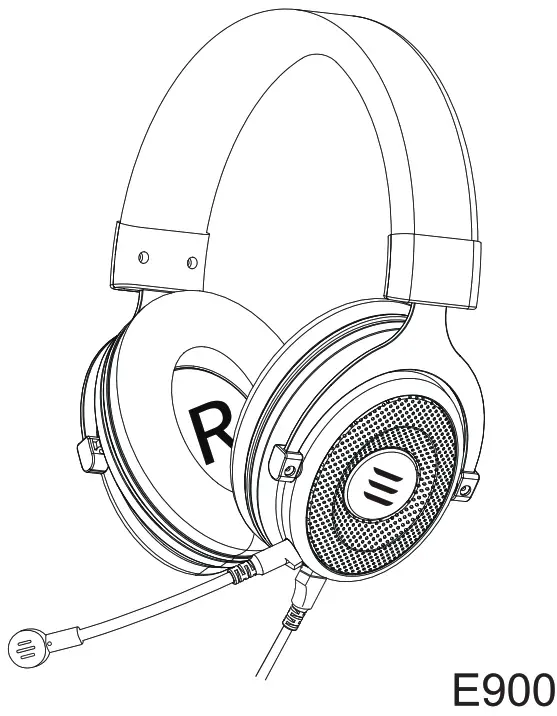

E900
User Manual Guide
Introduction
Designed for gamers, E900 Gaming Headset includes the detachable noise-canceling microphone, stereo sound, and mute button for a better gaming experience.

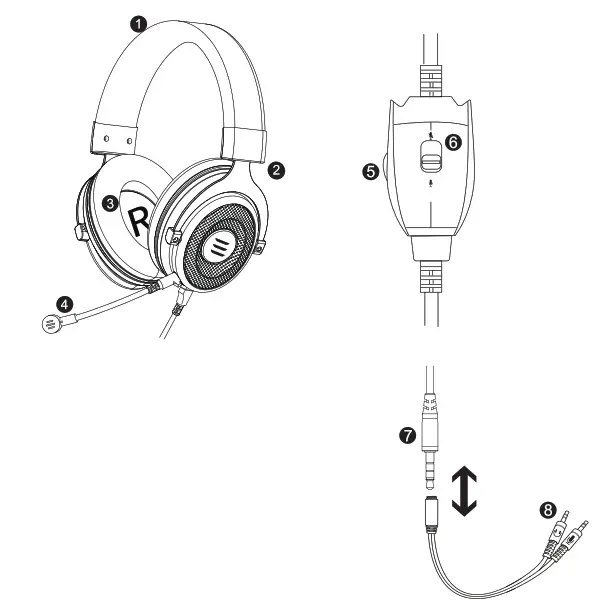

At a Glance
- Leatherette headband
- Adjustable steel arm headband
- Replaceable earmuffs
- Detachable microphone
- Volume up/down dial
- Microphone mute button
- 3.5mm audio cable
- PC splitter cable for separate mic and audio jacks

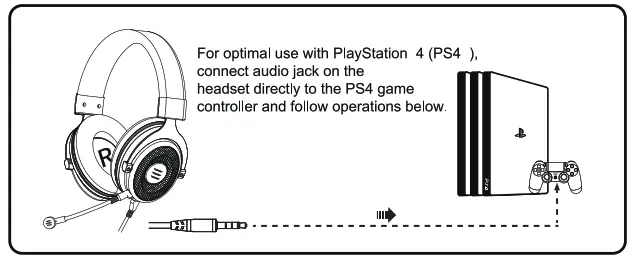

Usage ( PlayStation 4 )
For 3.5mm Audio Cable
Usage (Xbox One S/X)
To work on the old version of the Xbox One controller, you need a Microsoft adapter (sold separately). To work on the new version of the Xbox One S/X controller, you can directly connect the E900 headset to the controller via a 3.5mm jack.
Note: The headset isn’t compatible with Xbox 360.
| Information for Xbox User | |
| The controller has a 3.5mm jack: Headset adapter not required | The controller has no 3.5mm jack: Microsoft stereo headset adapter required |
 |  |
| For the Xbox One S/X controller | For the Xbox One controller ( old version ) |
Usage (PC)

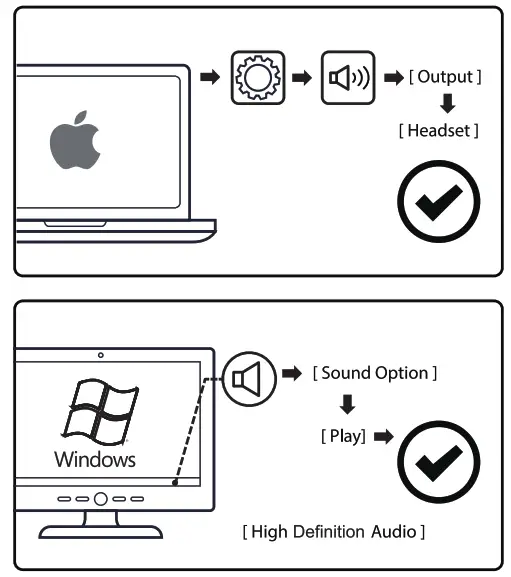

PC Sound Setting
Q&A
Q: Why can’t I use the microphone?
A: 1. You need to disable the computer’s onboard mic by accessing your sound devices in the hardware section of the control panel. And choose the mic of the headset.
2. Check whether the mute switch on the microphone is on.
Q: What if the microphone is silent?

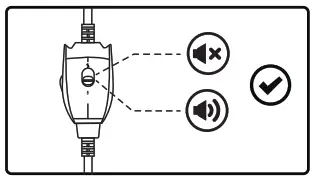

Al: Please make sure the microphone is not muted.

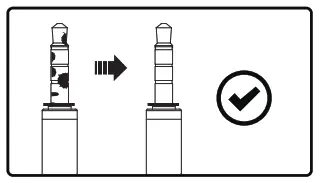

A2: 1. Wipe off the dirt and reinsert the 3.5 mm interface.

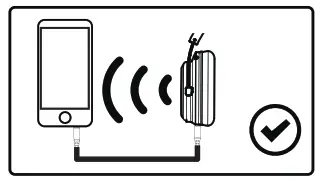

2. Connect the headset directly to the phone to test if it is good.
Product Parameters
2. Connect the headset directly to the phone to test if it is good.
Product ParametersHeadset:
Interface Type: 3.5mm
Diver Diameter: 050 mm
Sensitivity: 118dB±3dB
Speaker Impedance: 32Ω
Frequency Range: 20Hz-20KHz
Microphone:
Sensitivity: -42±3dB
Size: 96.0*2.7MM
Microphone Impedance: 2.2KΩ
Supply Voltage: 3V
Current Consumption: max 0.5mA
Package List
1 x EKSA E900 Gaming Headset
1 x Detachable Microphone
1 x 3.5mm Audio Cable
1 x 3.5mm Cable Splitter
1 x Operating Instruction
l x Safety Instruction
1 x Carry Pouch
Limited Warranty
EKSA offers a one-year limited warranty for this product. We will repair or replace any defective products free of charge. Feel free to contact us:
Global:
+852 6940 4955(Mon to Fri 9:00 am-6:30 pm, UTC +8 HKT)
[email protected]
www.eksa.net/warranty
India: +91 8929369620(Mon to Fri 9:30 am-5:30 pm, 1ST)[email protected]
