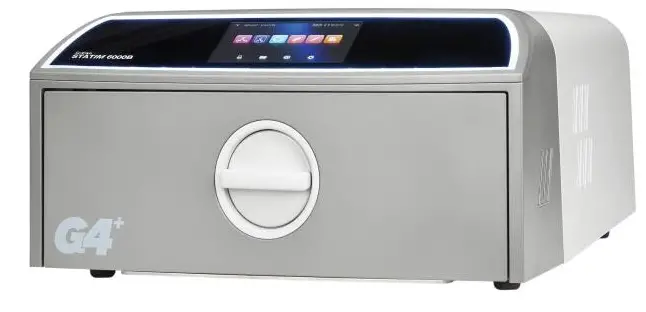

SciCan G4-700001 STATIM B G4+ Optimises Sterilisation Processes

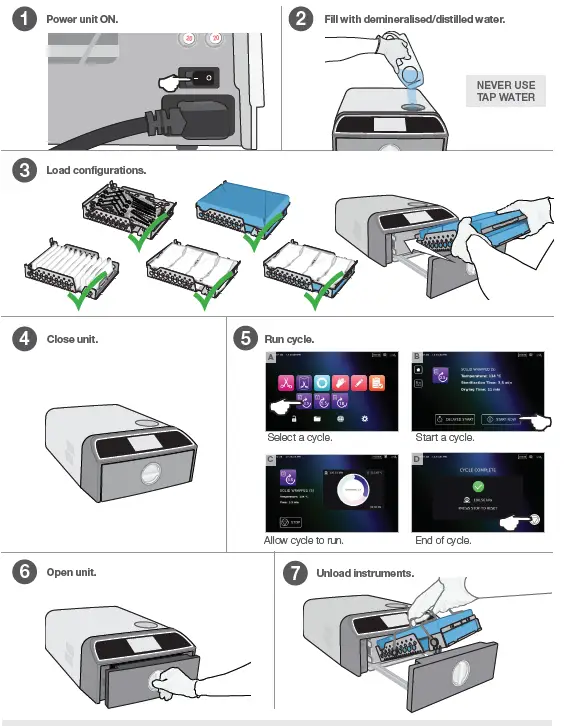

BASIC OPERATION

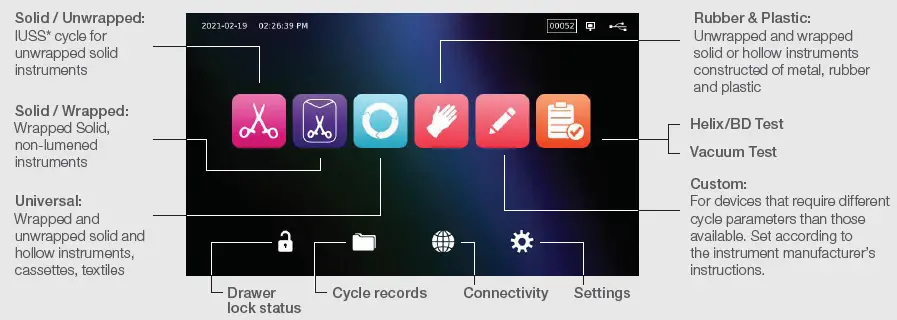

TOUCHSCREEN
MAINTENANCE SCHEDULE
|
Weekly | Clean the chamber and trays. |
| Drain water reservoir. | |
| Disinfect external surfaces. | |
| Inspect and clean the chamber filter (or replace if necessary). |
| Monthly or 160 Cycles | Inspect the water reservoir filter (clean or replace). |
| Clean the external fill water tank. |
| Every 6 Months or 1,000 Cycles | Perform all monthly cleaning tasks. |
| Replace bacteriological air filter. | |
| Replace drawer seal. |

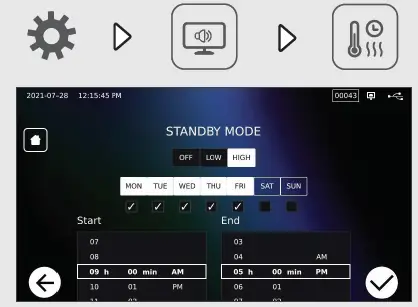

WARM-UP MODE
- STAND-BY LOW – For low to average use: 70°C / 158°F
- STAND-BY HIGH – For high use: 120°C / 248°F
- STAND-BY OFF (default) – For infrequent use. The wait time will be longer (up to 12 minutes from a cold start)

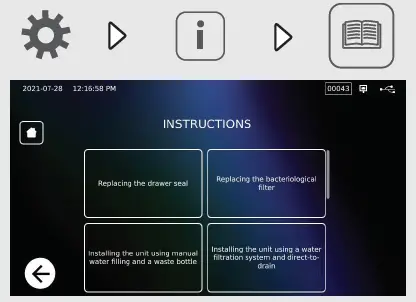

INSTRUCTIONAL VIDEOS

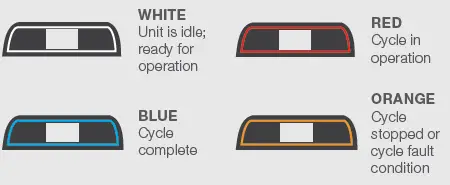

LED COLOUR
LOCK ICON
- Drawer is locked; the chamber is still under pressure
- Drawer remains locked; not safe to open
- Drawer is safe to open
- Drawer remains unlocked; unsafe to start cycle
Spare Parts and Accessories
| Spare Parts and Accessories | |
| 01-116292S | Air Filter |
| 01-116293S | Drawer Seal, 6L |
| 01-116294S
| Tray, 6L |
| 01-116296S | Exhaust Tube |
| 01-116297S | Extended Exhaust Tube |
| 01-116298S | Direct-to-Drain |
| 01-116299S | Water Filling |
| 01-116300S | Waste Bottle |
| 01-116301S | USB Memory Stick |
| 01-116302S | Water Reservoir Cap |
| SCI-BDSK134V | Bowie-Dick Test Kit |
| 97902001 | Helix Test Kit with 100 Chemical Indicators |
| 97902002 | Helix Text Kit with 400 Chemical Indicators |
| 01-110282S | Power Cord EU 16A/250V |
| 01-110285S | Power Cord UK IND plug 16A/250V |
| 01-116496 | StatMat Silicone Mat STATIM B |
| 01-116497S | Reservoir Chamber Filter |
| 01-116498S | Pouch Rack Kit |
