Scigiene ST15014 Infrared Sterilizer
Brief Introduction
Scigiene infrared sterilizer adopts international advanced design concepts and manufacturing technology, with firm structure, high versatility and simple operation. This instrument is mainly used for high-temperature sterilization and disinfection of small items such as inoculation loops and inoculation needles. It can replace alcohol lamps and is convenient and quick.

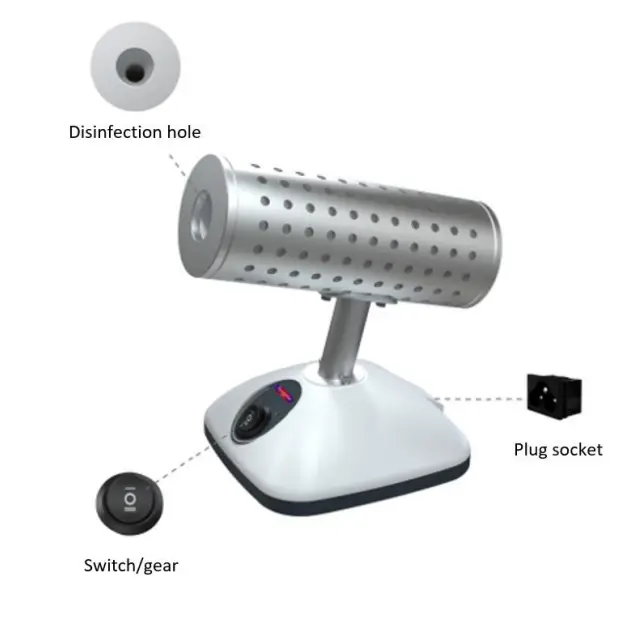

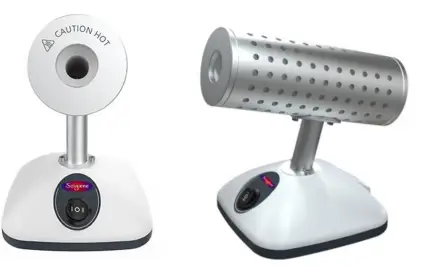

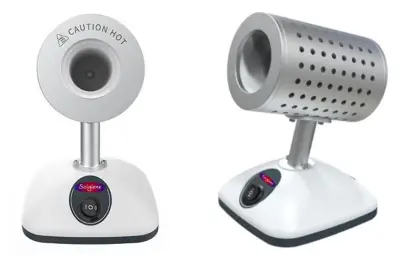

Products Overview
Part: ST10035
Part: ST15014
Products Introduction
Technical Data
| Part # | ST15014 | ST10035 |
| Picture |
|  |
| Power | 110V/220V;150W | 110V/220V;240W |
| The Center High-Temperature | 825 ˚C ± 50 ˚C | |
| Standby Constant Temperature | Heating with two gears 400 ˚C / 850 ˚C | |
| The Max-Diameter Of Sterilizer Goods | φ 14mm | φ 35mm |
| The Length Of Sterilizer | 150mm | 100mm |
| Heating Time | 10 minutes | |
| Working Condition Temperature | 5 ~ 40 ˚C | |
| Relative Humidity | ≤90% | |
| Dimensions | 175 x 130 x 185mm | 147 x 130 x 200mm |
| Weight | 1.3kg | 1.4kg |
Operation Guide
Application
- It is mainly used for microbiological experiments in biological safety cabinets, purification workbenches, mobile vehicles and other environments.
Applied Area
- Used for high-temperature sterilization of small items such as inoculation loops and inoculation needles.
Using Steps
- Place the instrument on a stable workbench, put the switch in the OFF position
- Plug in
- Turn the switch to the required position
- Turn the switch to the OFF position when done using, then plug out the instrument and let cool down.
Instrument Use Environment
- Indoor use only
- The working environment of the instrument is suitable for the temperature range of +5˚C~+40˚C
- The applicable temperature range of the instrument is <80%
- There should be no vibration and airflow that affect the performance of the instrument
- There should be no conductive dust, explosive gas or corrosive gas in the surrounding air
- Keep a safety distance of 10cm before and after the instrument is working
Safety Precautions
- Do not plug in the power connector and toggle the power button when your hands are wet with liquid
- Do not unplug the power plug when the instrument is powered on
- Do not clean the instrument when it is powered on
- Do not install the instrument on an uneven, swaying and vibrating work surface

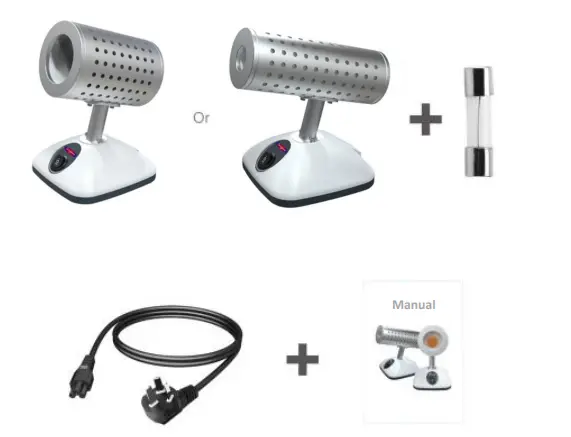

Package List
