59S® UVC LED STERILZER

P30R User Manual

INTRODUCTION

This is a high-power underwear dryer powered by UVC LED disinfection technology-P3OR. The product adopts an external 220V AC power adapter and is built-in with 12pcs edging UVC LEDs. It’s integrated with a high-efficiency fan and PTC heating module, designed with two modes- [3 minutes Sterilization + Heating] & [1-hour Sterilizing+Drying I, and qualified with disinfection rate up to 99.9%. The main body of P3OR Is made of environment-friendly cloth externally and food-grade reflective material internally, it’s available for a one-stop process of quick disinfection, heating, and drying. Meanwhile, the P3OR also serves as a fashionable, portable, and very easy-to-use storage bag. This product is absolutely free of mercury, chemical residue, and ozone during the process of disinfection.

HOW TO USE

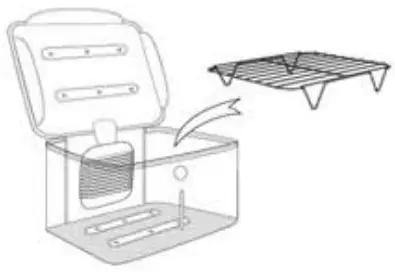

1. Unzip tne product, and put the Stainless steel rack inside.

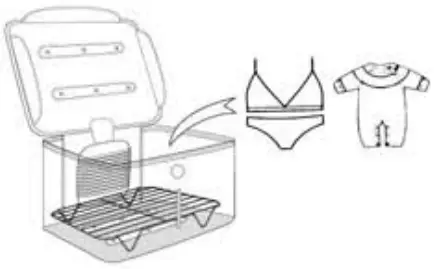

2. Place items on the rack, and make sure them tiling without stacking.

3. Zip up the product, plug in the power adapter.

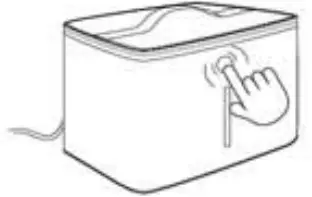

4. A single press on the sterilization button to start the mode of [3 minutes sterilization + heating), the ring indicator will keep flickering for 6mins. Double press on the sterilization button to start the mode of (1 hour sterilizing 4-drying ), the ring indicator will be progressing from 0 to 100% lighting-up gradually


5. Take out items when the process completes with indicator stop flickering

APPLICATION
Sterilization for any of surfaces
SAFETY PROTECTION
Built-in particular safety switch, the UVC LED light will be shut off once the sterilizing bag is opened
STERILIZATION PRINCIPLE
UVC LED light kills bacteria by destroying DNA or RNA, to stop them from reproducing and generating_
UVC LED DEODORIZATION
UVC waves can be used for deodorizing by disintegrating the molecule of odors.
INTRODUCTION OF BACTERICIDAL FACTORS AND MICROORGANISM CATEGORIES
The main bactericidal factor and its intensity UVC light, The average irradiance at a vertical distance of 13 cm below the top UVC LEDs 100 p W/cm7; killing microorganisms. Escherichia coli, Staphylococcus aureus.

INDICATOR STATEMENT

PACKING LIST

1. Sterilizing Bag *1
2. User Manual *1
3. Stainless Steel Rack *1
4. AC Cable *1

TECHNICAL PARAMETERS

PRODUCT FEATURE

Top and bottom UVC LED assembly, 360′ coverage, disinfection rate is up to 99.9%.
Intended to sterilize and dry the underwear, towel, beauty tool, feeding bottle, and phone, etc.
UVC LED light can kill almost all bacteria and prevent y.) cross-infection.
UVC LED sterilization is Hg and Ozone, it’s a safe and environmentally-friendly sterilization method.

WARM TIPS

1. Keep operation away from strong magnetic field objects
2. Study the manual carefully and thoroughly, keep it properly
3. UVC sterilizing process can reduce odors and moldy smells. Repeating sterilization cycle as needed for better performance.
   • In order to improve user experience, there will be changes in product features without prior written notice, please refer to actual contents in the package

NOT EXPOSE TO EYES & SKIN
CHILDREN PROHIBITED
NO WASHING & SOAKING
DO NOT BLOCK THE MR OWLET DURING OPERATION

NAME AND CONCENTRATION OF HARMFUL SUBSTANCE OR ELEMENTS

0: It means that the concentration of the toxic and harmful substance in all homogeneous materials of the component is in compliance with the limitation stipulated in GB/26572-2011
X: The concentration of the toxic and hazardous substances in certain homogeneous material of the component exceeds the limitation specified in GB/26572-2011
Note: Components marked “X` stands for no alternative technologies or components available at this stage
The EFUP refers to the safety lifespan of using the product without hazardous material leakage under the conditions specified in the manual.

For the battery: 5 years EFUP under normal use conditions
For the product 10 years EFUP under normal use conditions

WARRANTY

Warranty Details

Thank you for purchasing our product. While we aimed to provide the highest user experience, this warranty card is for you to retain and use when warranty service is needed

The following circumstances are not covered by warranty:

• Warranty expires.
• Malfunction or damage resulted from failure to use, maintain or keep the machine as instructed by the User Manual.
• Disassemble the machine by customers without permission.
• Malfunction or damage caused by human errors (such as misuse, collision or wrong voltage input).

Product Model:_______________
Date of purchase:_____________
Retailer:_____________________
Customer Name:_____________
Phone number:______________
Address:____________________
♦ This warranty card and proof of purchase from a retailer, serve as an important record of your purchase and warranty service Please keep it properly

Manufacturer/Importer: Shenzhen UVLED Optical Technology Co, Ltd.
Address. Room 301, FL 3, Phase 1, Bangkai Science and Technology Park, West of Bangkai Road & South of Guanguang Road, Guangming Hi-Tech Industrial Zone, Tangiia Community, Phoenix Street Admin, Guangming District, Shenzhen, China
Commissioned Manufacturer: Shenzhen UV Guard Technology Co, Ltd Factory
Address: 3-4/F, Building 2A, No.9, Bangkal Road, High-tech Industrial Park, Guangming District, Shenzhen, China
Hygienic License: YWXZZ(2018)-02-No.9142
Post Code: 518132
Executive Standard: Q/YCHC 002
