Scican Statim B G4+ Vacuum Autoclave User Guide

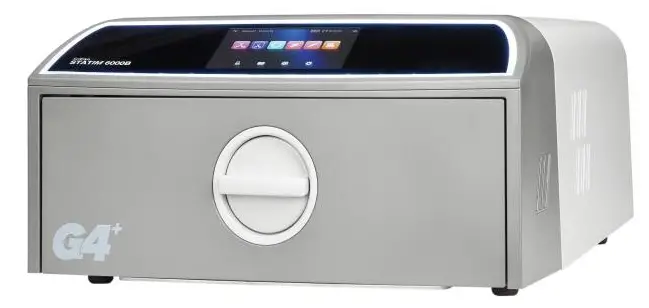

SciCan STATIM B G4+ Vacuum Autoclave

BASIC OPERATION

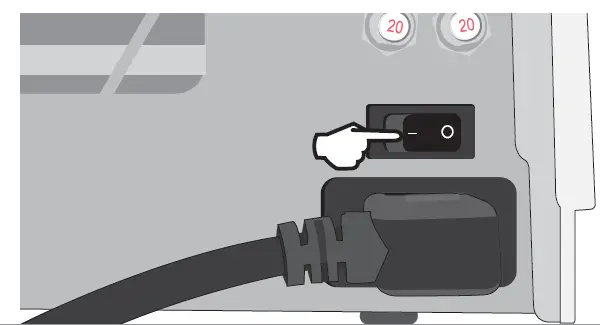

1. Power unit ON.

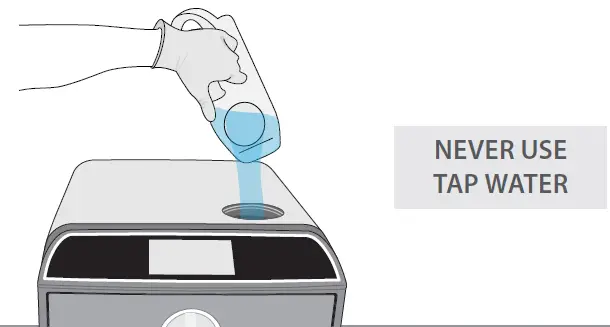

2. Fill with demineralised/distilled water.

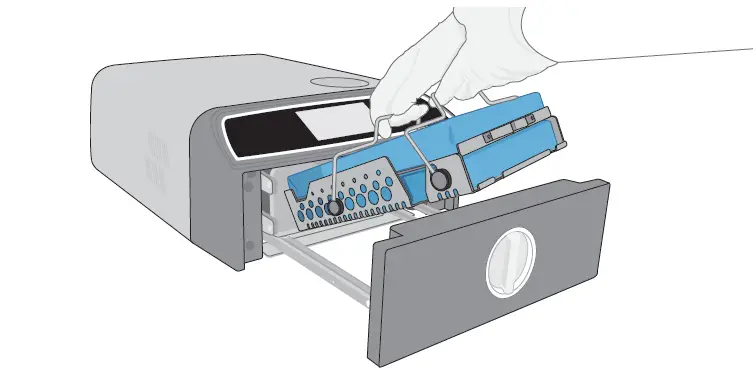

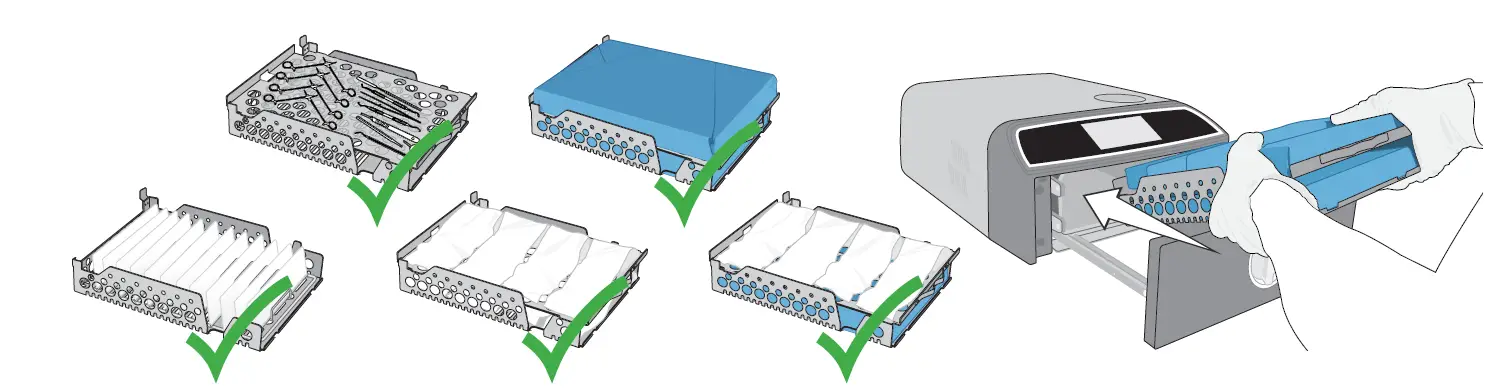

3. Load configurations.

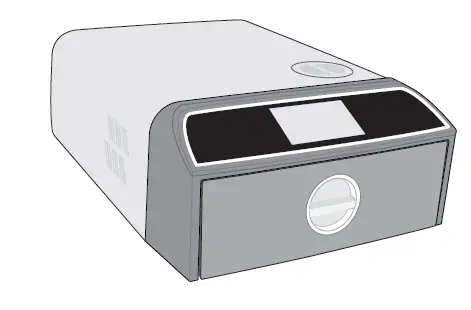

4. Close unit.

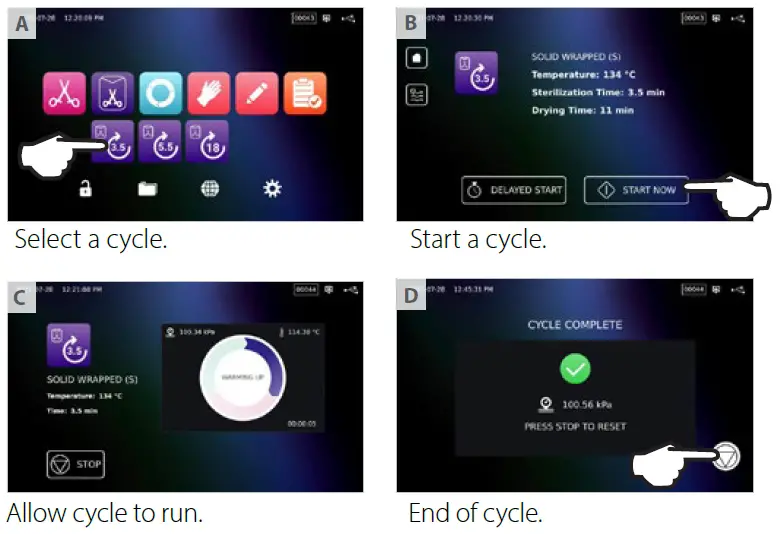

5. Run cycle.

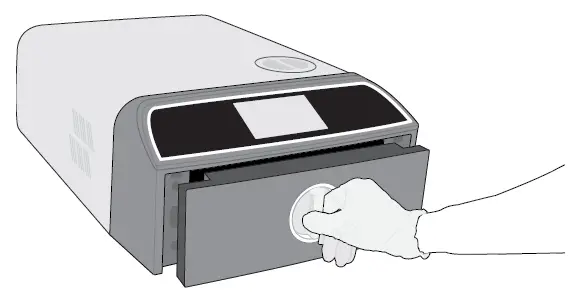

6. Open unit.
7. Unload instruments.

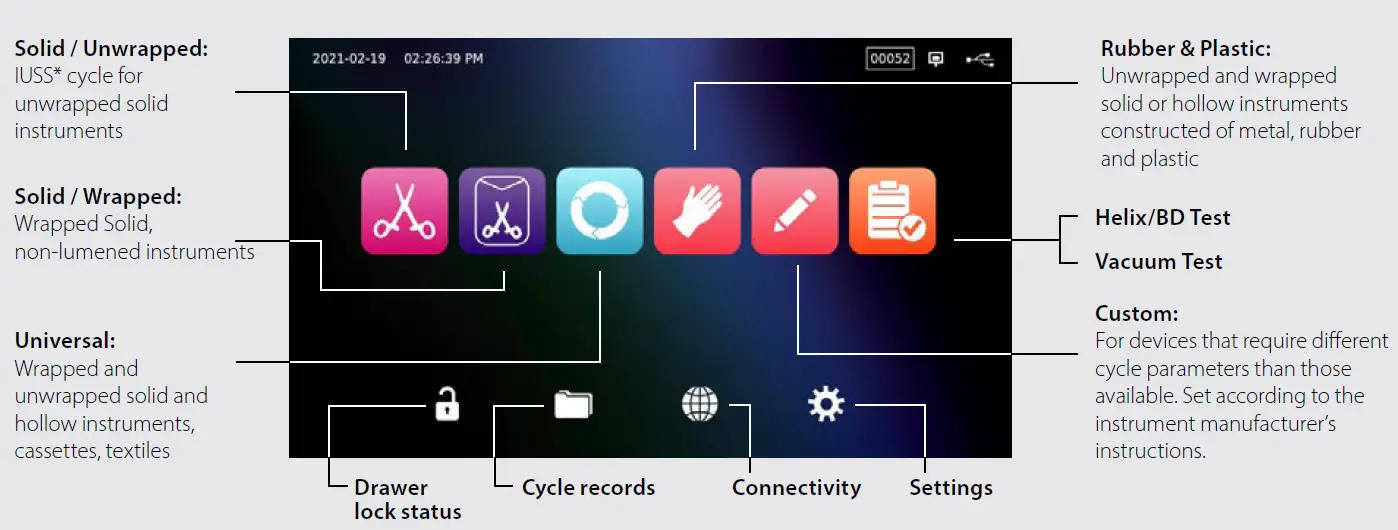

TOUCHSCREEN

MAINTENANCE SCHEDULE

• Daily
  • Wipe the drawer seal.
  • Clean external surfaces.
• Weekly
  • Clean the chamber and trays.
  • Drain water reservoir.
  • Disinfect external surfaces.
  • Inspect and clean the chamber filter (or replace if necessary).
• Every 2 Years or 2,000 Cycles
  • A complete maintenance of the autoclave including testing of the pressure relief valve and the power failure mode (by a SciCan-approved technician) is recommended.
• Monthly or 160 Cycles
  • Inspect the water reservoir filter (clean or replace).
  • Clean the external fill water tank.
• Every 6 Months or 1,000 Cycles
  • Perform all monthly cleaning tasks.
  • Replace bacteriological air filter.
  • Replace drawer seal.

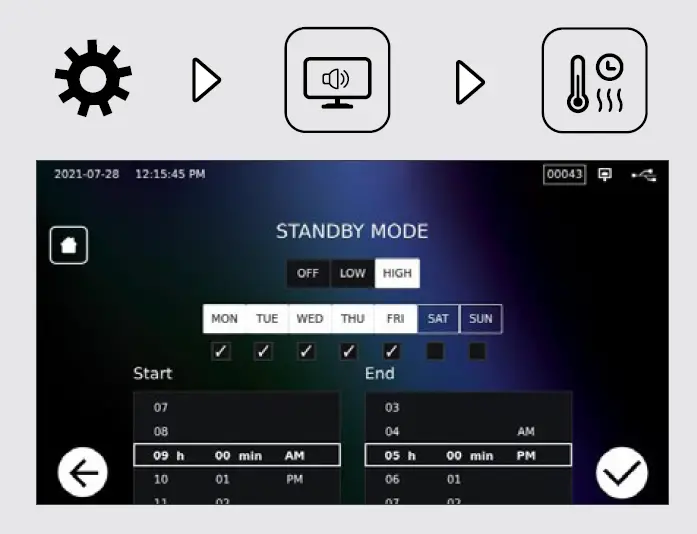

WARM-UP MODE

• STAND-BY LOW – For low to average use: 70°C / 158°F
• STAND-BY HIGH – For high use: 120°C / 248°F
• STAND-BY OFF (default) – For infrequent use. The wait time will be longer (up to 12 minutes from a cold start)

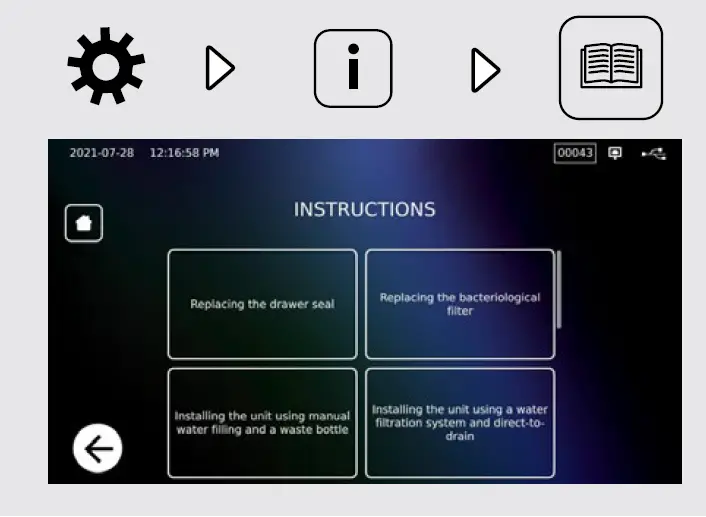

INSTRUCTIONAL VIDEOS

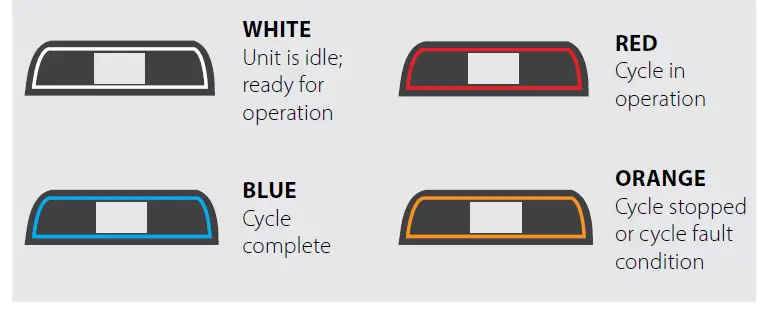

LED COLOUR

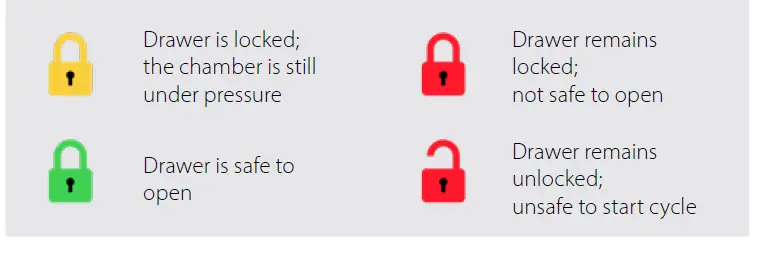

LOCK ICON

Spare Parts and Accessories

• 01-116292S
  • Air Filter
• 01-116293S
  • Drawer Seal, 6L
• 01-116294S
  • Tray, 6L
• 01-116296S ‘
  • Exhaust Tube
• 01-116297S
  • Extended Exhaust Tube
• 01-116298S
  • Direct-to-Drain
• 01-116299S
  • Water Filling
• 01-116300S
  • Waste Bottle
• 01-116301S
  • USB Memory Stick
• 01-116302S
  • Water Reservoir Cap
• SCI-BDSK134V
  • Bowie-Dick Test Kit
• 97902001
  • Helix Test Kit with 100 Chemical Indicators
• 97902002
  • Helix Text Kit with 400 Chemical Indicators
• 01-110282S
  • Power Cord EU 16A/250V
• 01-110285S
  • Power Cord UK IND plug 16A/250V
• 01-116496
  • StatMat Silicone Mat STATIM B
• 01-116497S
  • Reservoir Chamber Filter
• 01-116498S
  • Pouch Rack Kit

IMPORTANT!
Users of this device must be sure to select the most appropriate sterilization cycle according to the recommendations of the leading infection control authorities and local regulatory guidelines/recommendations.

www.scican.com EU +49 (0) 7561 98 343 – 0
