GE Profile PLD621RTSS 21-Inch Drop-In Gas Range

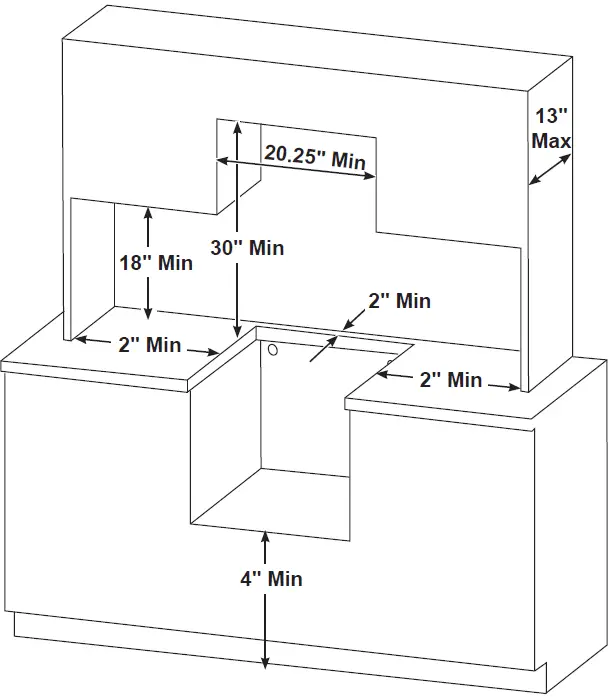

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE:
This appliances has been approved for 0″ spacing to the rear of the cooktop. However, a 5″ minimum spacing to each side is r ed for surfaces less than 18″ above the cooktop.
- For overhead cabinets depths exceeding 13″, refer to NFPA 1192 Table 5.6.6.5 for hood requirements.
| NOMINAL VOLTAGE | |
| 12 VDC | |
| OPERATING RANGE | |
| 10.5 VDC – 15.5 VDC | |
| FUSE (MAX) | |
| 15 AMP | |
| POSITION | BURNER RATING BTU/HR>) |
| FRONT CENTER | 8,000 |
| REAR LEFT | 6,500 |
| REAR RIGHT | 6,500 |
| OVEN | 7,100 |
- Dimension and installation information are shown in inches.

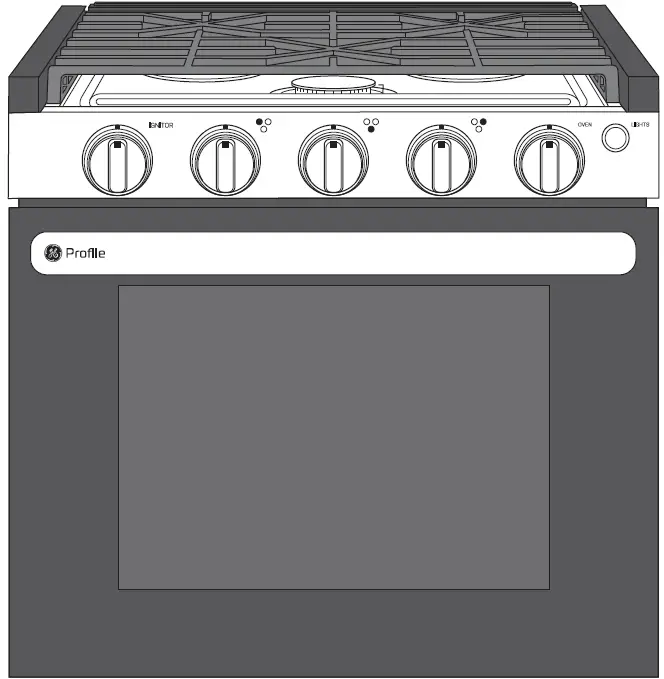

PLD621RTSS
GE Profile™ 21″ Drop-In Gas Range
FEATURES AND BENEFITS
21″ Drop-In Range – Discover how this 21″ drop-in RV stove fits perfectly into your camper for easy on-the-go cooking 12V DC Voltage Rating – Conveniently use your 12V DC range with your RV’s 12 volt system for power thanks to this hardwired range
Liquid Propane Fuel – Utilize liquid propane in your RV for easy mobile cooking on your propane gas range
Spark Ignition System – Easily light each burner by simply turning on the burner and creating a spark with the spark ignition knob
White Backlit Range Knobs – White backlit range knobs can conveniently be turned on and off for easy visibility any time of day
RV Range with Cast Metal Knobs – These cast metal knobs offer the feel, fit and finish of stainless steel without sacrificing the durability of an RV range with heavy duty knobs
Edge-to-Edge Grates – Easily move cookware on this seamless surface cooktop with continuous black matte grates
Profile Handle – These RV range door handles have been completely redesigned for an improved look
Easy-Clean Enamel Oven – Wipe away messes and grime with one simple swipe in this enamel easy-clean oven
Nickel Oven Rack with Multiple Positions – This durable and fully adjustable nickel rack has 3 flexible oven rack positions to accommodate a variety of cookware
Model PLD621RTSS – Stainless Steel
