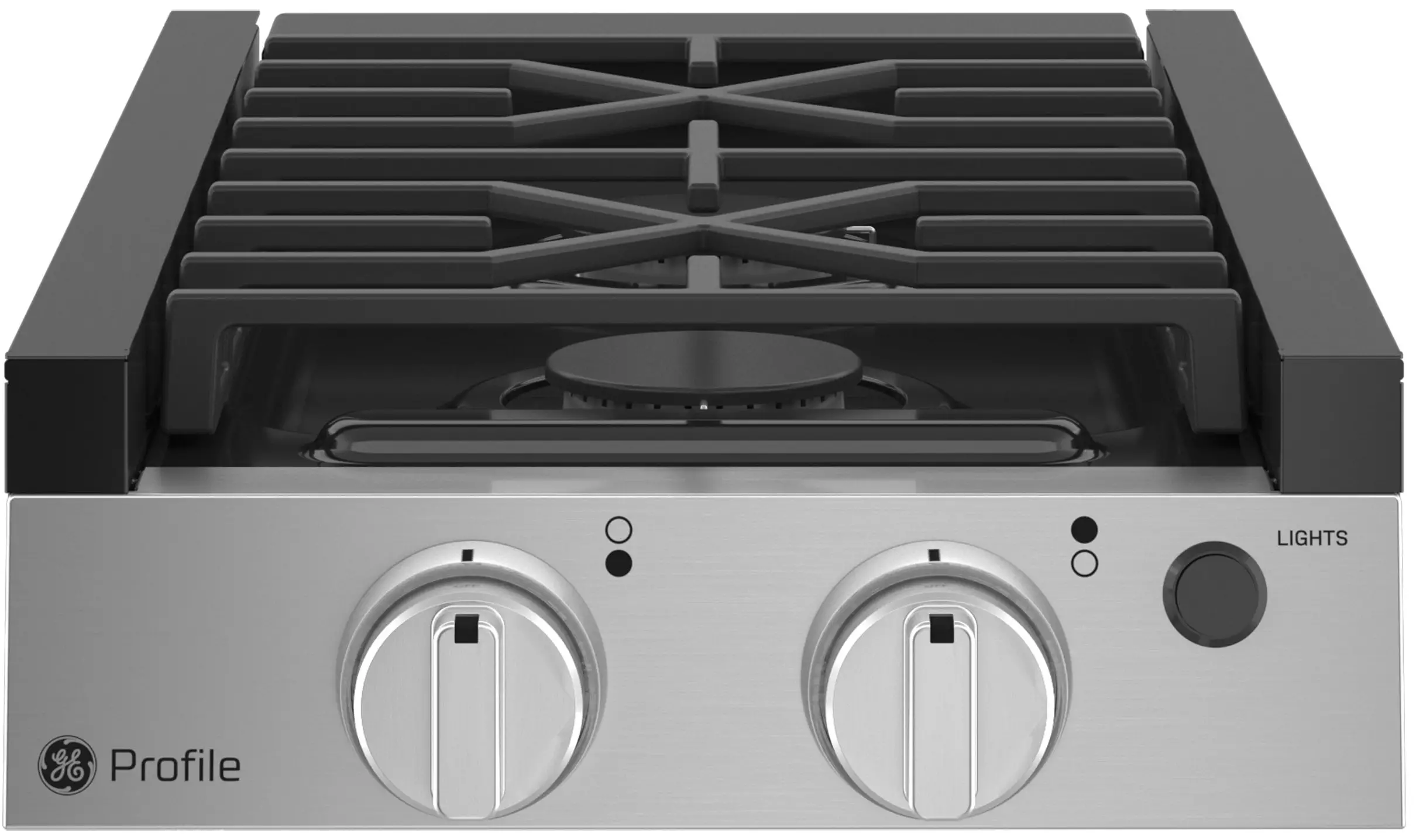

GE Profile PLU612RTSS 12 Inch RV Rangetop

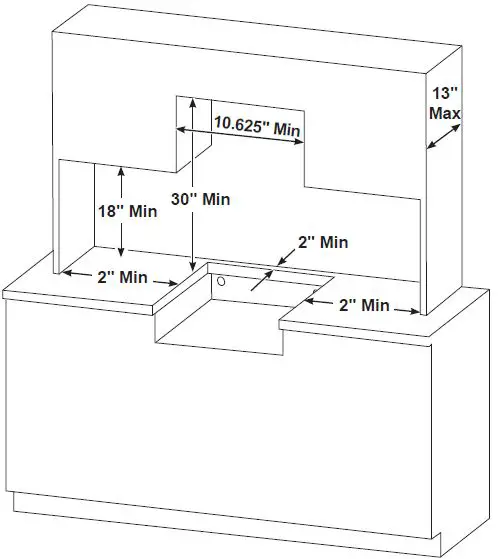

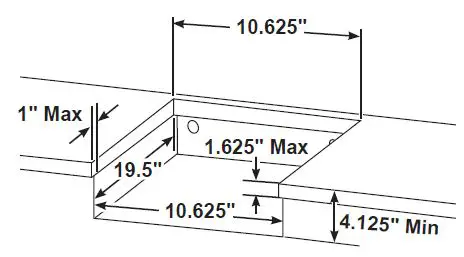

DIMENSIONS AND INSTALLATION INFORMATION IN INCHES
NOTE:
This appliance has been approved for 2″ spacing to the rear of the cooktop. However, a 2″ minimum spacing to each side is required for surfaces less than 18″ above the cooktop.
For overhead cabinet depths exceeding 13″, refer to NFPA 1192 Table 5.6.6.5 for hood requirements.
| NOMINAL VOLTAGE | |
| 12 VDC | |
| OPERATING RANGE | |
| 10.5 VDC – 15.5 VDC | |
| FUSE (MAX) | |
| 15 AMP | |
| POSITION | BURNER RATING BTU/HR>) |
| Front | 6,500 |
| Rear | 6,500 |
Dimension and installation information are shown in inches.
FEATURES AND BENEFITS
- 12″ Rangetop – Discover how this 12″ RV rangetop fits perfectly into your camper for easy on-the-go cooking
- 12V DC Voltage Rating – Conveniently use your 12V DC rangetop with your RV’s 12 volt system for power thanks to this hardwired rangetop
- Spark Ignition System – Easily light the burners with push-to-turn knobs that start the flow of propane and create the spark, just like the knobs on a household gas range
- White Backlit Range Knobs – White backlit rangetop knobs can conveniently be turned on and off for easy visibility any time of day
- RV Rangetop with Cast Metal Knobs – The heavy cast metal knobs offer ultimate durability with high-end fit, feel, and finish of stainless steel
- Edge-to-Edge Grates – Easily move cookware on this seamless surface cooktop with continuous black matte grates
- Two RV Burners – The two-burner RV rangetop has two 6,500-BTU burners that deliver quick, consistent heat and let you cook more than one dish at a time
- Liquid Propane Fuel – Fully contain liquid propane in your RV for easy mobile cooking on your propane gas rangetop
- Sealed Cooktop Burners – Sealed cooktop burners contain cooking spills so cleanup is quick and easy
- Secure, Removable RV Rangetop Grates – Rubber feet keep the RV rangetop grates fixed in place and eliminate noise, but each grate is easily removable for quick cleaning
- RV Cooktop Cover (Sold Separately) – The glass rangetop cover has rubber feet on the bottom to fit perfectly and silently on the grates. Use it as a cutting board or for extra countertop space while cooking.
- Model PLU612RTSS – Stainless Steel.
ANSI Z21.57-2010 Recreational Vehicle Cooking Gas Appliances ANSI Z21.57a-2012 Addenda to recreational Vehicle Cooking Gas Appliances CAN1-1.16-M79 (reaffirmed 2016) Propane Fired Cooking Appliance For Recreational Vehicles.
