JGB635REK
GE® 30″ Free-Standing Gas Range
Instruction Manual

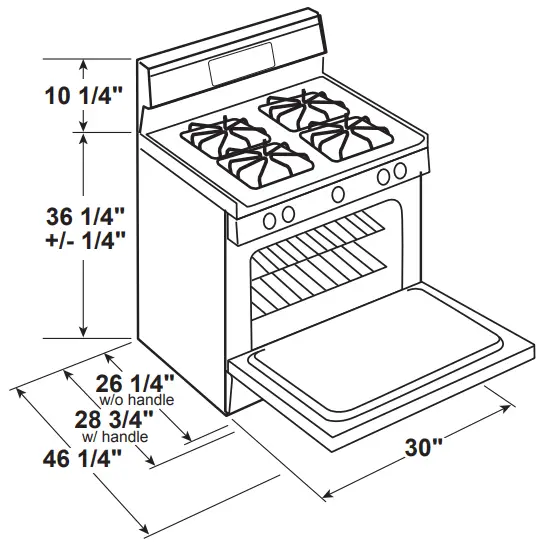

DIMENSIONS AND INSTALLATION INFORMATION
ELECTRICAL RATING: 120V, 60Hz, 15A
INSTALLATION INFORMATION: Before installing, consult installation instructions packed with product for current dimensional data.

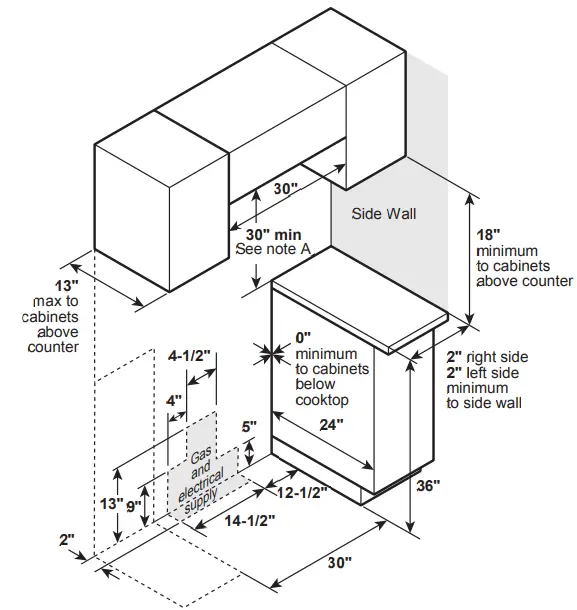

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS

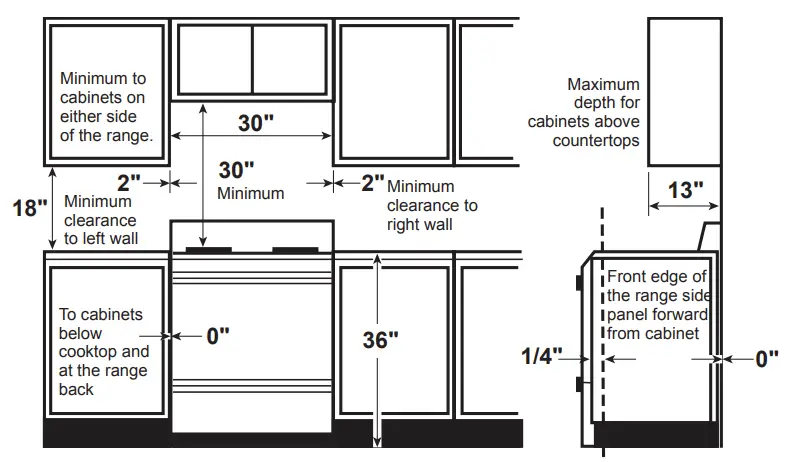

Note A: 30″ Minimum to bare cabinet, see installation instructions heights less than 30″
To cabinets below cooktop and at the range back

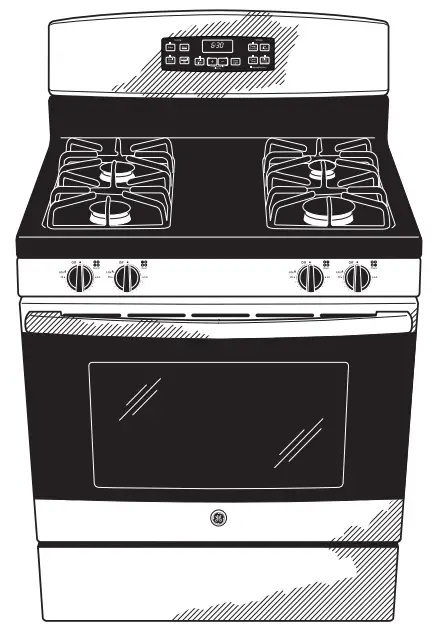

FEATURES AND BENEFITS
13,000 BTU burner – Delivers a wide range of heat output ideal for most cooking requirements
Black matte steel grates – Enjoy a high-end look with a durable, matte coating
Precise Simmer burner – Delicate foods don’t burn with low, even heat Self-clean oven – Cleans the oven cavity without the need for scrubbing 5.0 cu. ft. oven capacity – Cook more dishes at once Sealed cooktop burners – Contain spills and make cleaning quick and easy
In-oven broil – Healthy meals are hassle-free with in-oven broiling Sabbath Mode
Model JGB635REKSS – Stainless steel
For answers to your Monogram, GE Café, GE Profile or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
All GE Appliances ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.
Specification Revised 10/22
