JGBS60REK 30 Inch Free-Standing Gas Range
Owner’s Manual
JGBS60REK 30 Inch Free-Standing Gas Range
JGBS60REK GE ®
30″ Free-Standing Gas Range

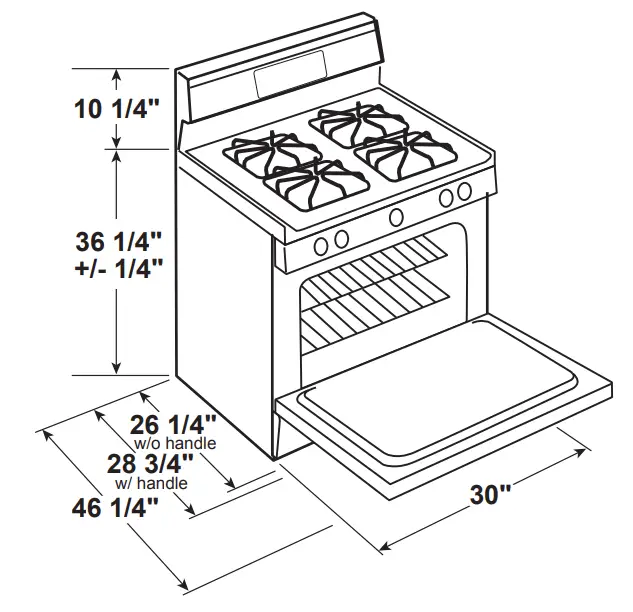

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)5A
ELECTRICAL RATING: 120V, 60Hz, 1
INSTALLATION INFORMATION: Before installing, consult installation instructions packed with product for current dimensional data.

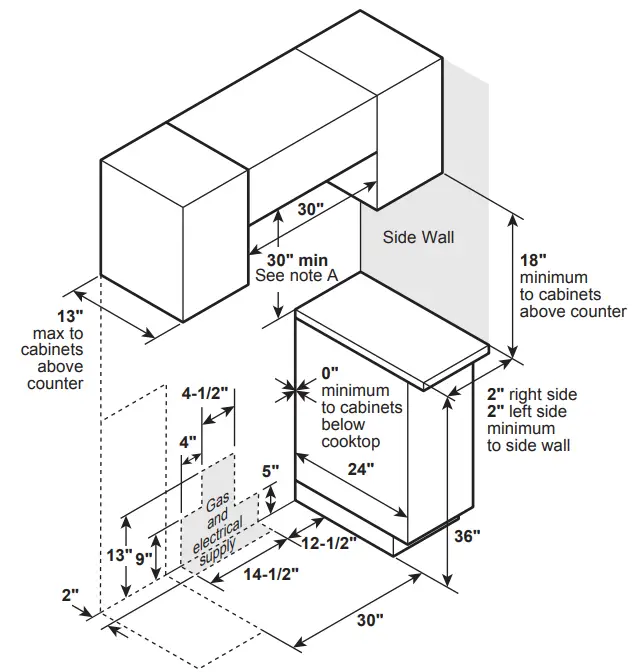

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS

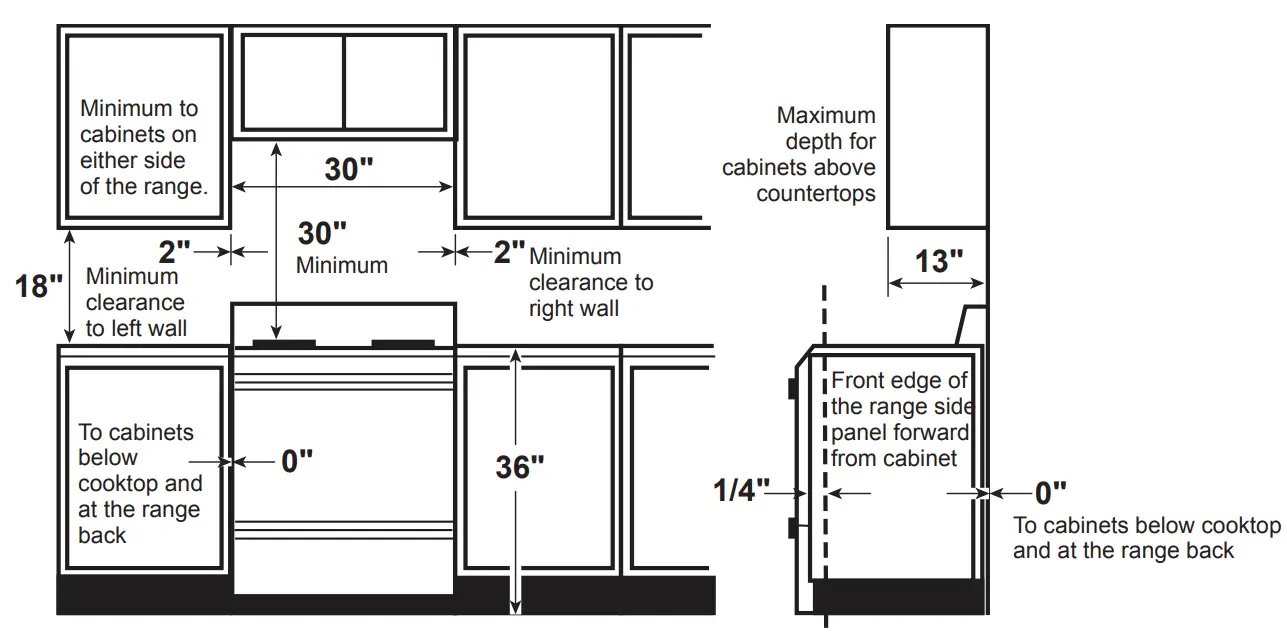

Note A: 30″ Minimum to bare cabinet, see installation instructions heights less than 30″
FEATURES AND BENEFITS
13,000 BTU burner – Delivers a wide range of heat output ideal for most cooking requirements
Precise Simmer burner – Delicate foods don’t burn with low, even heat Sealed cooktop burners – Contain spills and make cleaning quick and easy
Black matte steel grates – Enjoy a high-end look with a durable, matte coating
Standard clean oven – Smooth surface makes cleaning by hand easier 4.8 cu. ft. oven capacity – Enough room to cook an entire meal at once
Flexible broiling – Use any sized pan under the broiler for maximum broil flexibility
Sabbath Mode
Model JGBS60REKSS – Stainless steel
For answers to your Monogram, GE Café™ , GE Profile ™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
All GE ranges are equipped with an Anti-Tip device.
The installation of this device is an important, required step in the installation of the range.
