JGB635REK 30 Inch Free Standing Gas Range

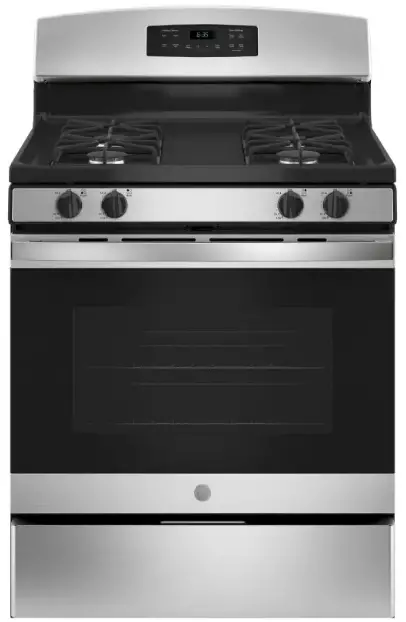

JGB635REK -30-Inch-Free-Standing-Gas-Range-PRODUCT

DIMENSIONS AND INSTALLATION INFORMATION

ELECTRICAL RATING: 120V, 60Hz, 15A

INSTALLATION INFORMATION: Before installing, consult installation instructions packed with product for current dimensional data.

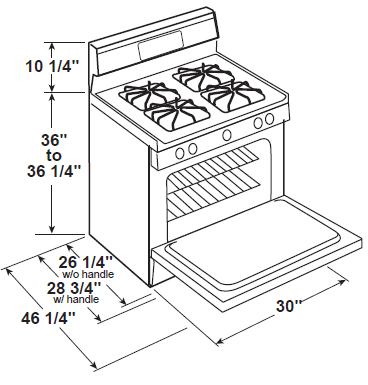

JGB635REK -30-Inch-Free-Standing-Gas-Range-FIG-1

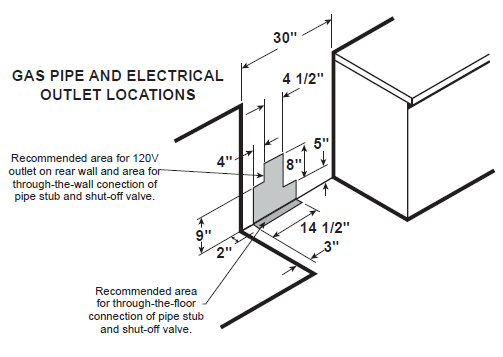

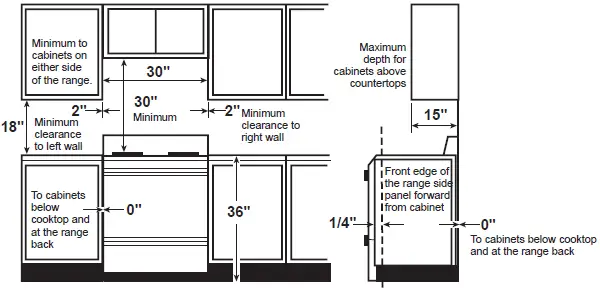

GAS PIPE AND ELECTRICAL OUTLET LOCATIONSJGB635REK -30-Inch-Free-Standing-Gas-Range-FIG-2JGB635REK -30-Inch-Free-Standing-Gas-Range-FIG-3

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000

FEATURES AND BENEFITS

13,000 BTU burner – Delivers a wide range of heat output ideal for most cooking requirements Black matte steel grates – Enjoy a high-end look with a durable, matte coating Precise Simmer burner – Delicate foods don’t burn with low, even heat Self-clean oven – Cleans the oven cavity without the need for scrubbing 5.0 cu. ft. oven capacity – Cook more dishes at once Sealed cooktop burners – Contain spills and make cleaning quick and easy In-oven broil – Healthy meals are hassle-free with in-oven broiling Sabbath Mode Model JGB635REKSS – Stainless steel Specification Revised 2/22
