solstice ILAHP Air to Water Heat Pump Installation Guide
Typical System Diagram

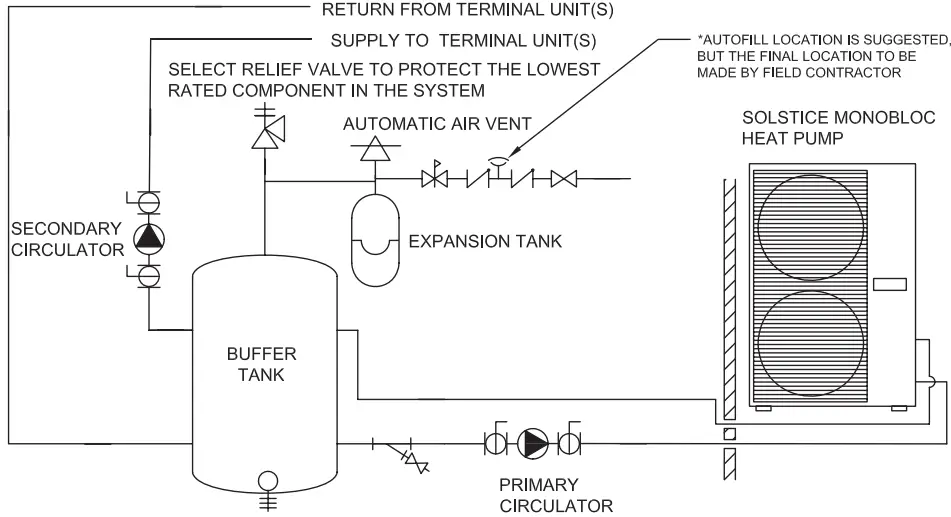

Basic Heat Pump Installation

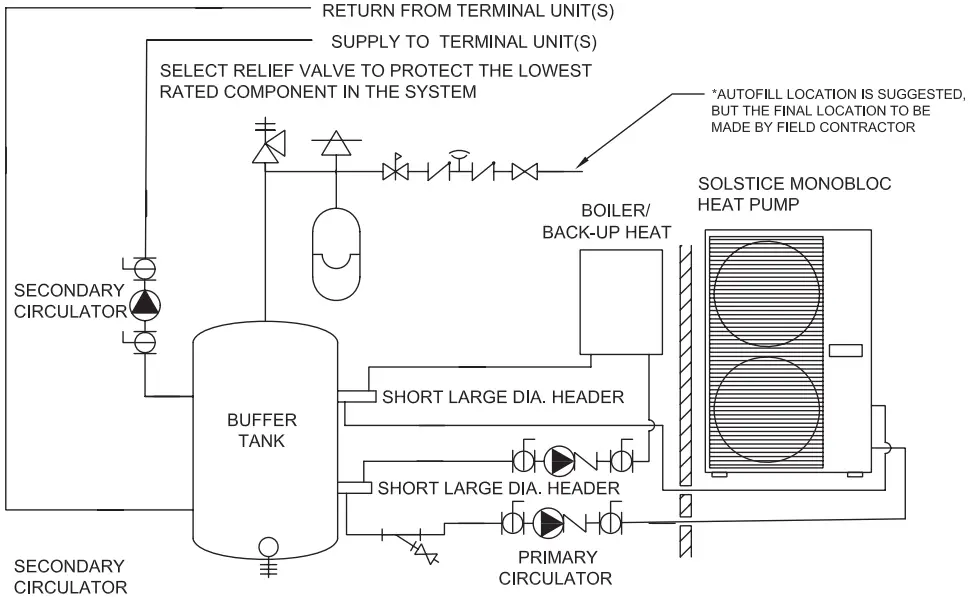

Heat Pump Installation with Auxiliary Back-Up Heat
CIRCULATOR CIRCULATOR WITH INTEGRAL FLOW-CHECK
DRAIN VALVE
STRAINER
EXPANSION TANK
AUTOMATIC AIR VENT
HUT-OFFVALVE
PRESSURE RELIEF VALVE
BACKFLOW-PREVENTION DEVICE
PRESSURE REDUCING VALVE
ISOLATION BALL VALVE

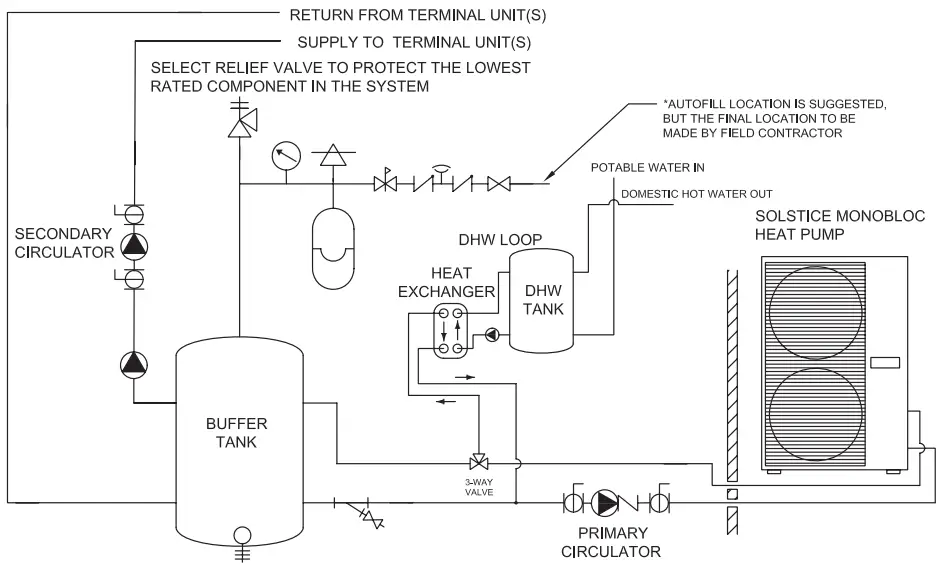

Heat Pump Installation with Domestic Hot Water Offset
*Autofill system is suggested but not required by Space Pak. If suchin stallation is desired or required by local code, the Autofill MUST draw from a reservoir of pre-mixed glycol/water solution. Filling directly from a well or municipal water source may introduce contaminants and will dilute the glycol solution in the event of a system leak. This may impact warranty coverage.
