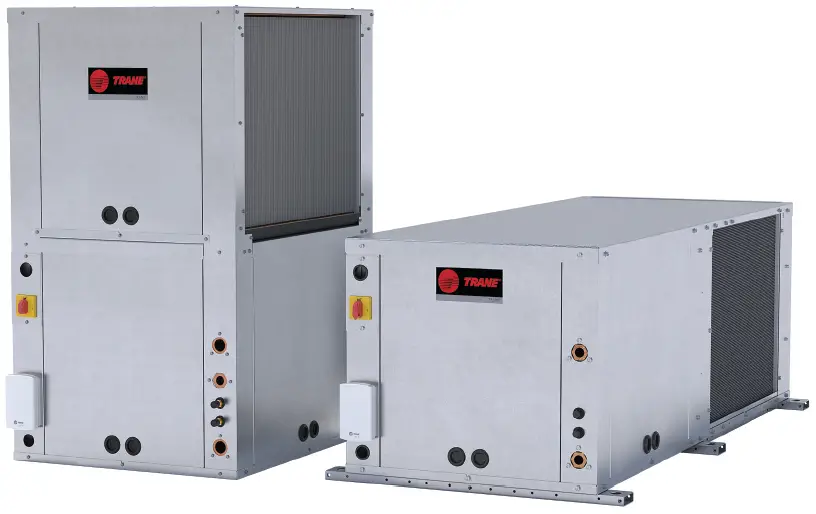

TRANE WSHP-PRC029C-EN Water Source Heat Pump Axiom
Copyright
This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.
Trademarks
All trademarks referenced in this document are the trademarks of their respective owners.
Revision History
- Updated GEHG006-0024 and 030-060 models general data tables.
- Updated ANSI/AHRI/ASHRAE/ISO13256-1 WLHP, GWHP and GLHP performance – 0.5 to 5 tons table.
- Updated Clearances GEHG 0.5 to 5 tons.
List of options
| Factory Installed Options | Field Installed Options |
| 1-inch or 2-inch Ducted Filter Rack | 2-inch or 4-inch Ducted Filter Rack |
| Air-Fi® Wireless Communications | Ducted Panel |
| Deluxe 24V, UC400B Controls | Hose Kits (or ship separate hoses and valves) |
| Factory-mounted Isolation Valve | Low, Medium and High Electric Heat |
| Hot Gas Reheat | Pump Module |
| Matte or Foil Face Insulation | Pump Module Hose Kit |
| MERV 8 or 13 Filters | Thermostats or Zone Sensors |
| Polymer or Stainless Steel IAQ Drain Pan | Waterside Economizer |
| Recessed Unit Mounted Disconnect Switch | |
| Standard or Deluxe Sound Package |
General data
models: GEHG006-024
| Model GEHG | 006 | 009 | 012 | 015 | 018 | 024 |
| Unit size width x depth x height (in.) | 23 x 41 x 15.75 | 23 x 41 x 15.75 | 23 x 41 x 15.75 | 25.5 x 46 x 17.75 | 25.5 x 46 x 17.75 | 25.5 x 49 x 18.75 |
| Compressor type | Rotary | Rotary | Rotary | Rotary | Rotary | Scroll |
| Net weight (lbs.) | 165 | 165 | 165 | 173 | 173 | 269 |
| Ship weight (lbs.) | 255 | 255 | 255 | 297 | 297 | 393 |
| Filter size nominal (in.) | 14 x 16 | 14 x 16 | 14 x 16 | 16 x 19 | 16 x 19 | 17 x 20 |
| Water in/out size (FPT) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.75 |
| Condensate size (NPTI) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Blower wheel Size (in.) | 9 x 6 | 9 x 6 | 9 x 6 | 9 x 8 | 9 x 8 | 10 x 8 |
models: GEHG030-060
| Model GEHG | 030 | 036 | 042 | 048 | 060 |
| Unit size width x depth x height (in.) | 25.5 x 49 x 18.75 | 25.5 x 55 x 19.75 | 25.5 x 55 x 19.75 | 28 x 68 x 21.75 | 28 x 68 x 21.75 |
| Compressor type | Scroll | Scroll | Scroll | Scroll | Scroll |
| Net weight (lbs.) | 269 | 313 | 313 | 381 | 394 |
| Ship weight (lbs.) | 393 | 437 | 437 | 526 | 539 |
| Filter size nominal (in.) | 17 x 20 | 18 x 23 | 18 x 23 | 20 x 30 | 20 x 30 |
| Water in/out size (FPT) | 0.75 | 0.75 | 0.75 | 1.00 | 1.00 |
| Condensate size (NPTI) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Blower wheel Size (in.) | 10 x 8 | 10 x 9 | 10 x 9 | 11 x 11 | 11 x 11 |
models: GEVG006-024
| Model GEVG | 006 | 009 | 012 | 015 | 018 | 024 |
| Unit size width x depth x height (in.) | 19 x 19 x 30 | 19 x 19 x 30 | 19 x 19 x 30 | 21.5 x 21.5 x 34 | 21.5 x 21.5 x 34 | 21.5 x 23 x 36 |
| Compressor type | Rotary | Rotary | Rotary | Rotary | Rotary | Scroll |
| Net weight (lbs.) | 149 | 149 | 149 | 155 | 157 | 210 |
| Ship weight (lbs.) | 201 | 201 | 201 | 210 | 212 | 268 |
| Filter size nominal (in.) | 14 x 16 | 14 x 16 | 14 x 16 | 16 x 19 | 16 x 19 | 16 x 19 |
| Model GEVG | 006 | 009 | 012 | 015 | 018 | 024 |
| Water in/out size (FPT) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.75 |
| Condensate size (NPTI) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Blower wheel Size (in.) | 9 x 6 | 9 x 6 | 9 x 6 | 9 x 8 | 9 x 8 | 10 x 8 |
models: GEVG030-060
| Model GEVG | 030 | 036 | 042 | 048 | 060 |
| Unit size width x depth x height (in.) | 21.5 x 23 x 36 | 21.5 x 26 x 38 | 21.5 x 26 x 38 | 24 x 32.5 x 42 | 24 x 32.5 x 42 |
| Compressor type | Scroll | Scroll | Scroll | Scroll | Scroll |
| Net weight (lbs.) | 214 | 220 | 252 | 280 | 285 |
| Ship weight (lbs.) | 272 | 280 | 312 | 343 | 348 |
| Filter size nominal (in.) | 16 x 19 | 18 x 23 | 18 x 23 | 20 x 30 | 20 x 30 |
| Water in/out size (FPT) | 0.75 | 0.75 | 0.75 | 1.00 | 1.00 |
| Condensate size (NPTI) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Blower wheel Size (in.) | 10 x 8 | 10 x 9 | 10 x 9 | 11 x 11 | 11 x 11 |
ANSI/AHRI/ASHRAE/ISO13256-1
WLHP, GWHP and GLHP performance – 0.5 to 5 Tons
|
Model |
Rated GPM |
Rated CFM | Water Loop Heat Pump | Ground Water Heat Pump | Ground Loop Heat Pump | |||||||||
| Cooling 86°F | Heating 68°F | Cooling 59°F | Heating 50°F | Full Cool 77°F | Full Heat 32°F | |||||||||
| Capacity Btuh | EER | Capacity Btuh | COP | Capacity Btuh | EER | Capacity Btuh | COP | Capacity Btuh | EER | Capacity Btuh | COP | |||
| GEH/VG006 | 1.50 | 190 | 7,000 | 13.70 | 9,300 | 4.70 | 8,100 | 21.30 | 7,500 | 4.10 | 7,400 | 16.00 | 5,600 | 3.30 |
| GEH/VG009 | 2.25 | 285 | 8,700 | 15.50 | 11,200 | 5.50 | 9,600 | 23.80 | 9,100 | 4.70 | 8,900 | 17.80 | 6,700 | 3.70 |
| GEH/VG012 | 3.00 | 380 | 11,400 | 14.90 | 15,300 | 5.30 | 13,300 | 24.20 | 12,400 | 4.60 | 12,100 | 17.60 | 9,400 | 3.70 |
| GEH/VG015 | 3.75 | 475 | 14900 | 15.3 | 18700 | 5.10 | 16600 | 23.00 | 15400 | 4.30 | 15500 | 17.40 | 12300 | 3.60 |
| GEH/VG018 | 4.50 | 570 | 17400 | 15.6 | 22200 | 5.00 | 19300 | 23.50 | 18400 | 4.40 | 18100 | 17.70 | 14300 | 3.60 |
| GEH/VG024 | 6.00 | 760 | 23,900 | 16.10 | 31,100 | 5.30 | 26,600 | 24.40 | 25,300 | 4.60 | 24,800 | 18.50 | 19,600 | 3.80 |
|
Model |
Rated GPM |
Rated CFM | Water Loop Heat Pump | Ground Water Heat Pump | Ground Loop Heat Pump | |||||||||
| Cooling 86°F | Heating 68°F | Cooling 59°F | Heating 50°F | Full Cool 77°F | Full Heat 32°F | |||||||||
| Capacity Btuh | EER | Capacity Btuh | COP | Capacity Btuh | EER | Capacity Btuh | COP | Capacity Btuh | EER | Capacity Btuh | COP | |||
| GEH/VG030 | 7.50 | 950 | 29,000 | 15.40 | 37,900 | 5.10 | 32,300 | 23.00 | 30,800 | 4.50 | 30,200 | 17.70 | 23,300 | 3.70 |
| GEH/VG036 | 9.00 | 1140 | 36,000 | 15.40 | 45,100 | 5.00 | 39,900 | 22.60 | 36,900 | 4.40 | 37,300 | 17.60 | 28,700 | 3.60 |
| GEH/VG042 | 10.50 | 1330 | 40,900 | 14.90 | 55,600 | 4.70 | 45,500 | 22.00 | 45,600 | 4.20 | 42,600 | 17.10 | 35,300 | 3.50 |
| GEH/VG048 | 12.00 | 1520 | 49,500 | 15.10 | 62,600 | 4.90 | 55,700 | 22.80 | 50,000 | 4.20 | 51,800 | 17.40 | 37,600 | 3.30 |
| GEH/VG060 | 15.00 | 1900 | 55,200 | 14.50 | 75,400 | 4.60 | 61,700 | 21.30 | 61,200 | 4.10 | 57,300 | 16.50 | 47,000 | 3.50 |
Notes
- Rated in accordance with ANSI/AHRI/ASHRAE/ISO13256-1. Certified conditions are 80.6°F DB/66.2°F WB EAT in cooling and 68F DB/59°F WB EAT in heating.
- Models with capacities greater than 135,000 Btuh are not included in the ANSI/AHRI/ASHRAE/ISO13256-1 water-to-air and brine-to-air heat pump certification program.
Electrical data
ECM motors – GE* 0.5 to 5 tons
| Model No. | Unit Volts | Blower Motor HP | Minimum Circuit Ampacity | Maximum Overcurrent Protective Device |
| GEH/GEV006 | 208-230/60/1 | 1/3 | 5/5 | 15/15 |
| GEH/GEV006 | 265/60/1 | 1/3 | 5 | 15 |
| GEH/GEV009 | 208-230/60/1 | 1/3 | 6/6 | 15/15 |
| GEH/GEV009 | 265/60/1 | 1/3 | 5 | 15 |
| GEH/GEV012 | 208-230/60/1 | 1/3 | 9/9 | 15/15 |
| GEH/GEV012 | 265/60/1 | 1/3 | 7 | 15 |
| GEH/GEV015 | 208-230/60/1 | 1/3 | 10/10 | 15/15 |
| GEH/GEV015 | 265/60/1 | 1/3 | 7 | 15 |
| GEH/GEV018 | 208-230/60/1 | 1/3 | 12/12 | 20/20 |
| GEH/GEV018 | 265/60/1 | 1/3 | 10 | 15 |
| GEH/GEV024 | 208-230/60/1 | 1/2 | 19/19 | 30/30 |
| GEH/GEV024 | 265/60/1 | 1/2 | 13 | 20 |
| GEH/GEV024 | 208-230/60/3 | 1/2 | 11/11 | 15/15 |
| GEH/GEV024 | 460/60/3 | 1/2 | 6 | 15 |
| GEH/GEV030 | 208-230/60/1 | 3/4 | 20/20 | 30/30 |
| GEH/GEV030 | 208-230/60/3 | 3/4 | 13/13 | 20/20 |
| GEH/GEV030 | 265/60/1 | 3/4 | 16 | 25 |
| GEH/GEV030 | 460/60/3 | 3/4 | 7 | 15 |
| GEH/GEV036 | 208-230/60/1 | 3/4 | 24/24 | 40/40 |
| GEH/GEV036 | 265/60/1 | 3/4 | 20 | 30 |
| GEH/GEV036 | 208-230/60/3 | 3/4 | 16/16 | 25/25 |
| GEH/GEV036 | 460/60/3 | 3/4 | 9 | 15 |
| GEH/GEV042 | 208-230/60/1 | 3/4 | 26/26 | 40/40 |
| GEH/GEV042 | 208-230/60/3 | 3/4 | 21/21 | 30/30 |
| GEH/GEV042 | 460/60/3 | 1 | 10 | 15 |
| GEH/GEV048 | 208-230/60/1 | 1 | 31/31 | 50/50 |
| GEH/GEV048 | 208-230/60/3 | 1 | 23/23 | 35/35 |
| GEH/GEV048 | 460/60/3 | 1 | 10 | 15 |
| GEH/GEV060 | 208-230/60/1 | 1 | 38/38 | 60/60 |
| GEH/GEV060 | 208-230/60/3 | 1 | 25/25 | 40/40 |
| GEH/GEV060 | 460/60/3 | 1 | 13 | 20 |
Clearances

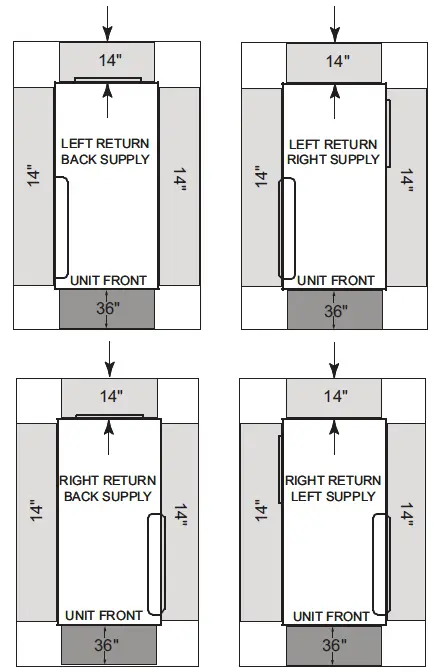

GEHG 0.5 to 5 tons
A minimum 14–inch clearance for servicing the unit is required for all 0.5 to 5 tons configurations from other mechanical and electrical equipment (where shown) to enable panel removal from the unit for service/maintenance ability. The optimum clearance required is 20 inches.

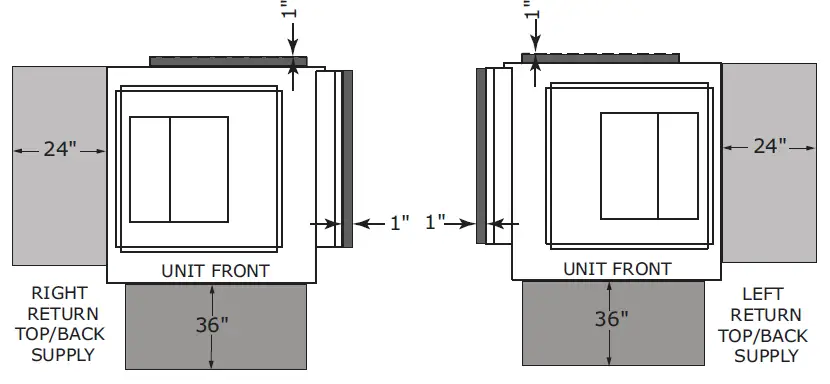

- A 24-inch clearance from other mechanical and electrical equipment (where shown) is recommended for most unit configurations. This will enable panel removal from
the unit for service/maintenance. - The 24-inch side clearance on GEVG 0.5-5T models is for optimal access only. Side clearance is not a requirement as most components can be accessed from the
front of the unit. - A 1-inch minimum clearance between the filter rack and any obstacle is required for units in a free return application to provide proper air flow to the air-to-refrigerant
coil. A 12-inch minimum clearance between the filter rack and any obstacle should be provided to properly attached ductwork. - The 1-inch dimension shown in the back of the unit represents the supply duct collar for the back supply option. This clearance is needed to clear these flanges.
Trane: by Trane Technologies (NYSE: TT), a global climate innovator – creates comfortable, energy efficient indoor environments for commercial and residential applications. For more information, please visit trane.com or tranetechnologies.com.
Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.
WSHP-PRC029C-EN 01 Mar 2023
Supersedes WSHP-PRC029B-EN (Oct 2021)
©2023 Trane
