TRANE EXVG Water Source Heat Pump

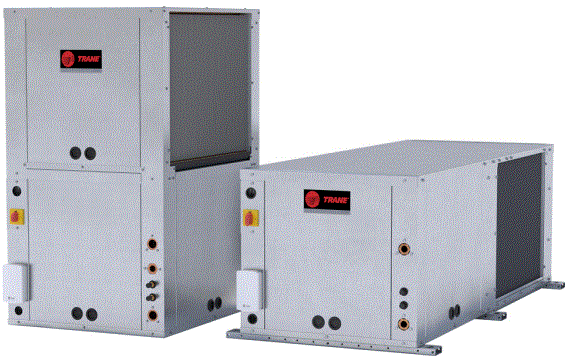

TRANE EXVG Water Source Heat Pump-PRODUCT

Product Information: Water Source Heat Pump AxiomTM

The Water Source Heat Pump AxiomTM is a heating and cooling system that uses water as its heat source. It comes in various models, including EXVG009-030, EXVG036-070, DXHG024-070, EXHG009-024, and EXHG030-070. Each model has a different size, compressor type, net weight, ship weight, filter size nominal, water in/out size (FPT), condensate size (NPTI), and blower wheel size (inches). The system comes with various factory-installed and field-installed options such as ducted filter rack, deluxe controls, hot gas reheat, pump module, insulation, MERV filters, thermostats, drain pan, waterside economizer, and sound package.

Product Usage Instructions:

Before using the Water Source Heat Pump AxiomTM, ensure that it is installed correctly as per the installation manual. Ensure that the water source is connected to the system and that the system is powered on.

To control the system, use the provided thermostat or zone sensors. Set the desired temperature and mode (heating or cooling) using the controls. The system will automatically adjust its operation to maintain the set temperature.

Regular maintenance is necessary to ensure optimal performance of the system. Replace the air filters as per the manufacturer’s recommendations. Check the drain pan and clean it if necessary  Inspect the blower wheel and clean it if necessary. Check the water source and ensure that it is clean and free of debris.

If you encounter any issues with the system, refer to the troubleshooting section of the user manual or contact a qualified technician for assistance.

Copyright

This document and the information in it are the property of Trane, and may not be used or reproduced in whole or in part without written permission. Trane reserves the right to revise this publication at any time, and to make changes to its content without obligation to notify any person of such revision or change.

Trademarks

All trademarks referenced in this document are the trademarks of their respective owners.

Revision History

Added Symbio™ 400-B to the table 1 List of option.

Table 1.List of options

Factory Installed OptionsField Installed Options
1-inch or 2-inch Ducted Filter Rack2-inch or 4-inch Ducted Filter Rack
Air-Fi® Wireless CommunicationsDucted Panel
Deluxe 24V, Symbio™ 400-B/UC400-B ControlsHose Kits (or ship separate hoses and valves)
Factory-mounted Isolation ValveLow, Medium and High Electric Heat
Hot Gas ReheatPump Module
Matte or Foil Face InsulationPump Module Hose Kit
MERV 8 or 13 FiltersThermostats or Zone Sensors
Polymer or Stainless Steel IAQ Drain PanWaterside Economizer
Recessed Unit Mounted Disconnect Switch
Standard or Deluxe Sound Package

Table 2.General data – models EXHG009-024

Model EXHG009012015018024
Unit size width x depth x height (in.)25.5 x 46 x 17.7525.5 x 46 x 17.7525.5 x 49 x 18.7525.5 x 55 x 19.7525.5 x 55 x 19.75
Compressor typeRotaryRotaryRotaryRotaryScroll
Net weight (lbs.)173173173269269
Ship weight (lbs.)297297297393393
Filter size nominal (in.)16 x 1917 x 1917 x 2018 x 2319 x 23
Water in/out size (FPT)1/21/21/23/43/4
Condensate size (NPTI)3/43/43/43/43/4
Blower wheel Size (in.)9 x 89 x 810 x 810 x 910 x 9

Table 3.General data – models EXHG030-070

Model EXHG030036042048060070
Unit size width x depth x height (in.)28 x 68 x 21.7528 x 68 x 21.7529.38 x 77.75 x 22.1329.38 x 77.75 x 22.1329.38 x 86.75 x 22.1329.38 x 86.75 x 22.13
Compressor typeScrollScrollScrollScrollScrollScroll
Net weight (lbs.)313313381381434434
Ship weight (lbs.)458458560560613613
Filter size nominal (in.)20 x 3020 x 3020 x 20 (qty-2)20 x 20 (qty-2)30 x 20

20 x 20

30 x 20

20 x 20

Water in/out size (FPT)3/43/41.001.001.001.00
Condensate size (NPTI)3/43/43/43/43/43/4
Blower wheel Size (in.)11 x 1111 x 1111 x 1111 x 1111 x 1111 x 11

Table 4.General data – models EXVG009-03

Model EXVG009012015018024030
Unit size width x depth x height (in.)21.5 x 21.5 x 3421.5 x 21.5 x 3421.5 x 23 x 3621.5 x 26 x 3821.5 x 26 x 3824 x 32.5 x 42
Compressor typeRotaryRotaryRotaryRotaryScrollScroll
Net weight (lbs.)152152188222236280
Ship weight (lbs.)207207246282296343
Filter size nominal (in.)16 X 1916 X 1917 X 2018 X 2318 X 2320 X 30
Water in/out size (FPT)0.500.500.750.750.751.00
Model EXVG009012015018024030
Condensate size (NPTI)0.750.750.750.750.750.75
Blower wheel Size (in.)9 x 89 x 810 x 810 x 910 x 911 x 11

Table 5.General data – models EXVG036-070

Model EXVG036042048060070
Unit size width x depth x height (in.)24 x 32.5 x 4225.4 x 32.5 x 4925.4 x 32.5 x 4925.4 x 32.5 x 5525.4 x 32.5 x 55
Compressor typeScrollScrollScrollScrollScroll
Net weight (lbs.)281329345367432
Ship weight (lbs.)344394410436501
Filter size nominal (in.)20 X 3027 X 3027 X 3030 X 3330 X 33
Water in/out size (FPT)1.001.001.001.001.00
Condensate size (NPTI)0.750.750.750.750.75
Blower wheel Size (in.)11 x 1111 x 1111 x 1111 x 1111 x 11

Table 6.General data – models DXHG024-070

Model DXHG024036048060070
Unit size width x depth x height (in.)25.5 x 55 x 19.7528 x 68 x 21.7529.38 x 77.75 x 22.1329.38 x 86.75 x 22.1329.38 x 86.75 x 22.13
Compressor typeTwo-Stage ScrollTwo-Stage ScrollTwo-Stage ScrollTwo-Stage ScrollTwo-Stage Scroll
Net weight (lbs.)269313381434434
Ship weight (lbs.)393458560613613
Filter size nominal (in.)18 x 2320 x 3020 x 20 (qty-2)30 x 20

20 x 20

30 x 20

20 x 20

Water in/out size (FPT)3/43/41.001.001.00
Condensate size (NPTI)3/43/43/43/43/4
Blower wheel Size (in.)10 x 911 x 1111 x 1111 x 1111 x 11

Table 7.General data – models DXVG024-070

Model DXVG024036048060070
Unit size width x depth x height (in.)21.5 x 26 x 3824 x 32.5 x 4225.4 x 32.5 x 4925.4 x 32.5 x 5525.4 x 32.5 x 55
Compressor typeTwo-Stage ScrollTwo-Stage ScrollTwo-Stage ScrollTwo-Stage ScrollTwo-Stage Scroll
Net weight (lbs.)236279354371437
Ship weight (lbs.)296342419440506
Filter size nominal (in.)18 x 2323 x 3027 x 3030 x 3330 x 33
Water in/out size (FPT)0.751.001.001.001.00
Condensate size (NPTI)0.750.750.750.750.75
Blower wheel Size (in.)10 x 911 x 1111 x 1111 x 1111 x 11

Table 8.ANSI/AHRI/ASHRAE/ISO13256-1 WLHP, GWHP and GLHP performance – 0.75 to 6 tons





Model





Rated GPM





Rated CFM

Water Loop Heat PumpGround Water Heat PumpGround Loop Heat Pump
Cooling 86°FHeating 68°FCooling 59°FHeating 50°FFull Cool 77°FFull Heat 32°F
Capacity Btuh

EER

Capacity Btuh

COP

Capacity Btuh

EER

Capacity Btuh

COP

Capacity Btuh

EER

Capacity Btuh

COP

EXV/H0092.25285790016.1099005.6880025.082004.8830018.861003.7
EXV/H0123.003801160016.40152005.81370027.9123005.01230019.593004.0
EXV/H0153.754751510016.10187005.31700025.8153004.61580019.0121003.8
EXV/H0184.505701880017.60236005.72110028.7188004.91960020.6146004.1
EXV/H0246.007602460017.40321005.72740027.2259005.02560020.3195003.9
EXV/H0307.509503140017.80384005.83500027.2310005.03280020.7236004.1
EXV/H0369.0011403550017.60431005.83940026.5350005.03710020.4272004.1
EXV/H04210.5013303840018.00480006.44330027.5385005.54050021.1294004.3
EXV/H04812.0015204540017.70556006.15040026.4448005.34710020.3346004.3
EXV/H06015.0019005570017.50690005.96080025.7559005.15770020.1429004.1
EXV/H07017.5022156380017.30821005.406890024.9669004.86610019.80520004.1

Note: Rated in accordance ANSI/AHRI/ASHRAE/ISO13256-1. Certified conditions are 80.6°F DB/66.2°F WB EAT in cooling and 68°F DB/59°F WB EAT in heating. Entering liquid temperature in cooling is 86°F for Water Loop, 77°F for Ground Loop (full load), 68°F for Ground Loop (part load), and 59°F for Ground Water. Entering liquid temperature in heating is 68°F for Water Loop, 32°F for Ground Loop (full load), 41°F for Ground Loop (part load), and 50°F for Ground Water

Table 9.ANSI/AHRI/ASHRAE/ISO13256-1 WLHP, GWHP and GLHP performance – 2 to 6 tons





Model





Load





Rated GPM





Rated CFM

Water Loop Heat PumpGround Water Heat PumpGround Loop Heat Pump
Cooling 86°FHeating 68°FCooling 59°FHeating 50°FFull Cool 77°FFull Heat 32°F
Capacity Btuh

EER

Capacity Btuh

COP

Capacity Btuh

EER

Capacity Btuh

COP

Capacity Btuh

EER

Capacity Btuh

COP

DXV/H024Full6.07602470016.8321005.52750024.4257004.92590019.2194003.9
DXV/H024Part6.06081850017.7241005.92050028.3189004.92000024.5163004.3
DXV/H036Full9.011403300017.3409005.93710025.1329005.13450019.7255004.1
DXV/H036Part9.09122450018.3305006.32760029.3243005.22660025.2211004.5
DXV/H048Full12.015204520017.9552006.15040026.4444005.34660020.6345004.3
DXV/H048Part12.012163280018.7400006.63690031.2319005.33570026.7280004.7
DXV/H060Full15.019005210017.6639006.05660024.8517005.25390019.9398004.2
DXV/H060Part15.015203830018.7473006.64200029.9378005.44100025.8324004.6
DXV/H070Full17.522156440017.3827005.46910023.8674004.86680019.6529004.0
DXV/H070Part17.517724710018.9597006.05110029.7480005.05000025.6420004.4

Note:Performance data EXVG 0.5 Ton or 0.75 Ton Rated in accordance with ANSI/AHRI/ASHRAE/ISO13256-1. Certified conditions are 80.6°F DB/66.2°F WB EAT in cooling and 68°F DB/59°F WB EAT in heating. Entering liquid temperature in cooling is 86°F for Water Loop, 77°F for Ground Loop (full load), 68°F for Ground Loop (part load), and 59°F for Ground Water. Entering liquid temperature in heating is 68°F for Water Loop, 32°F for Ground Loop (full load), 41°F for Ground Loop (part load), and 50°F for Ground Water.

Table 10.Electrical data – 0.75 to 6 tons, EX*009-070

Model No.Unit VoltsBlower Motor HPMinimum Circuit AmpacityMaximum Overcurrent Protective Device
EXH/EXV009208-230/60/11/36/615/15
EXH/EXV009265/60/11/3515
EXH/EXV012208-230/60/11/38/815/15
EXH/EXV012265/60/11/3715
EXH/EXV015208-230/60/11/310/1015/15
EXH/EXV015265/60/11/3715
Model No.Unit VoltsBlower Motor HPMinimum Circuit AmpacityMaximum Overcurrent Protective Device
EXH/EXV070460/60/311320
Model No.Unit VoltsBlower Motor HPMinimum Circuit AmpacityMaximum Overcurrent Protective Device
EXH/EXV018208-230/60/11/212/1220/20
EXH/EXV018265/60/11/21015
EXH/EXV024208-230/60/11/219/1930/30
EXH/EXV024265/60/11/21320
EXH/EXV024208-230/60/31/211/1115/15
EXH/EXV024460/60/31/2615
EXH/EXV030208-230/60/13/420/2030/30
EXH/EXV030265/60/13/41625
EXH/EXV030208-230/60/33/413/1320/20
EXH/EXV030460/60/33/4715
EXH/EXV036208-230/60/13/423/2335/35
EXH/EXV036265/60/13/41725
EXH/EXV036208-230/60/33/415/1520/20
EXH/EXV036460/60/31715
EXH/EXV042208-230/60/13/425/2540/40
EXH/EXV042208-230/60/33/417/1725/25
EXH/EXV042460/60/31915
EXH/EXV048208-230/60/1125/2540/40
EXH/EXV048208-230/60/3120/2030/30
EXH/EXV048460/60/31915
EXH/EXV060208-230/60/1131/3150/50
EXH/EXV060208-230/60/3122/2235/35
EXH/EXV060460/60/311015
EXH/EXV070208-230/60/1139/3960/60
EXH/EXV070208-230/60/3126/2640/40

Table 11.Electrical data – 2 to 6 tons, DX*024-070

Model No.Unit VoltsBlower Motor HPMinimum Circuit AmpacityMaximum Overcurrent Protective Device
DXH/DXV024208-230/60/11/217/1725/25
DXH/DXV024265/60/11/21320
DXH/DXV024208-230/60/31/210/1015/15
DXH/DXV024460/60/31/2615
DXH/DXV036208-230/60/13/419/1930/30
DXH/DXV036265/60/13/41520
DXH/DXV036208-230/60/33/413/1320/20
DXH/DXV036460/60/31715
DXH/DXV048208-230/60/1125/2540/40
DXH/DXV048208-230/60/3121/2130/30
DXH/DXV048460/60/311015
DXH/DXV060208-230/60/1131/3150/50
DXH/DXV060208-230/60/3122/2235/35
DXH/DXV060460/60/311015
DXH/DXV070208-230/60/1139/3960/60
DXH/DXV070208-230/60/3126/2640/40
DXH/DXV070460/60/311215

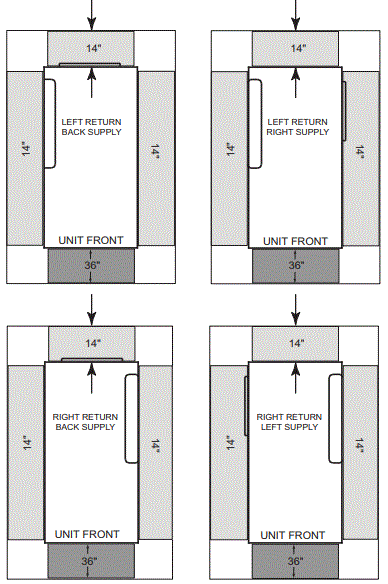

Figure 1.Clearances – EXHG/DXHG 0.75 to 6 tons

TRANE EXVG Water Source Heat Pump-FIG1

A minimum 14-inch clearance for servicing the unit is required for all EXH 0.75 to 6 tons configurations from other mechanical and electrical equipment (where shown) to enable panel removal from the unit for service/maintenance ability. The optimum clearance required is 20 inches.

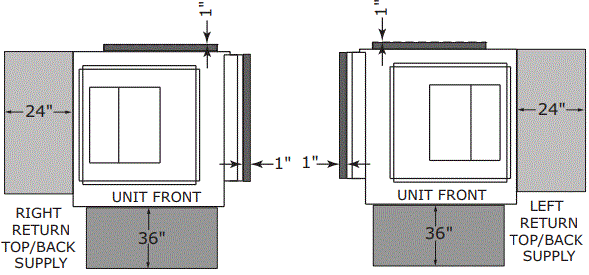

Figure 2.Clearances – EXVG/DXVG 0.75 to 6 tons

TRANE EXVG Water Source Heat Pump-FIG2

A 24-inch clearance from other mechanical and electrical equipment (where shown) is recommended for most unit configurations. This will enable panel removal from the unit for service/maintenance. The 24-inch side clearance on EXVG/DXVG 0.75-6T models is for optimal access only. Side clearance is not a requirement as most components can be accessed from the front of the unit.
A 1-inch minimum clearance between the filter rack and any obstacle is required for units in a free return application to provide proper airflow to the air-to-refrigerant coil. A 12-inch minimum clearance between the filter rack and any obstacle should be provided to properly attached ductwork.The 1-inch dimension shown in the back of the unit represents the supply duct collar for the back supply option. This clearance is needed to clear these flanges.

Trane – by Trane Technologies (NYSE: TT), a global climate innovator – creates comfortable, energy-efficient indoor environments for commercial and residential applications. For more information, please visit trane.com or tranetechnologies.com.

Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice. We are committed to using environmentally conscious print practices.

WSHP-PRC030D-EN 21 Jun 2023
Supersedes WSHP-PRC030C-EN (Mar 2023)
