QUICK INSTALLATION GUIDE

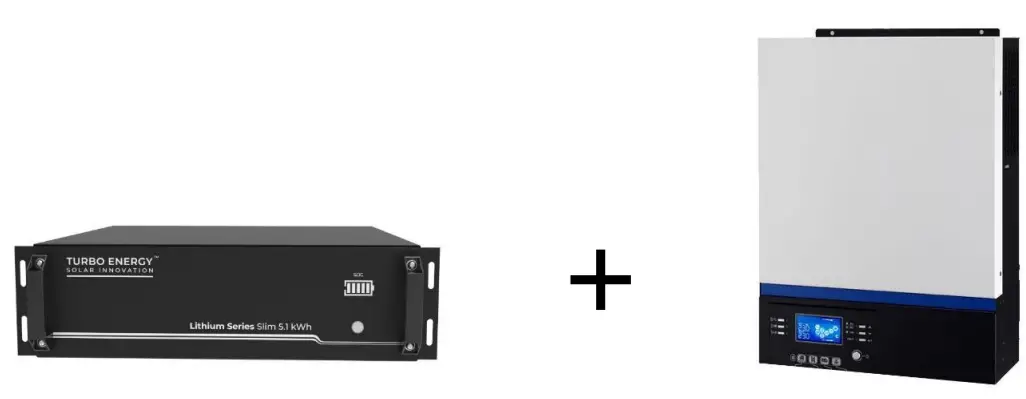

LITHIUM SERIES 48V 5,1kWh Slim
+
INVERTER VOLTRONIC
INVERTER VOLTRONIC VMIII configuration

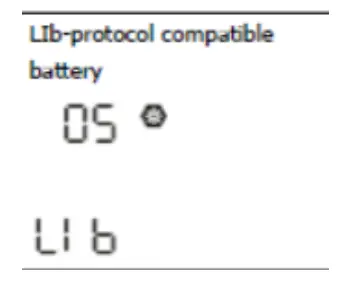

In the Inverter menu it is necessary to change parameter 5 to the LIB configuration.
Each module has 4 DIP (Dual Inline Package) switches that will be configured differently depending on the number of batteries to be connected
| Address | Dial switch position | Explain | |||
| #1 | #2 | #3 | #4 | ||
| 1 | ON | OFF | OFF | OFF | Packl/Master |
| 2 | OFF | ON | OFF | OFF | Pack2 |
| 3 | ON | ON | OFF | OFF | Pack3 |
| 4 | OFF | OFF | ON | OFF | Pack4 |
| …… | |||||
Any changes to the DIPs must be made with the battery turned off.

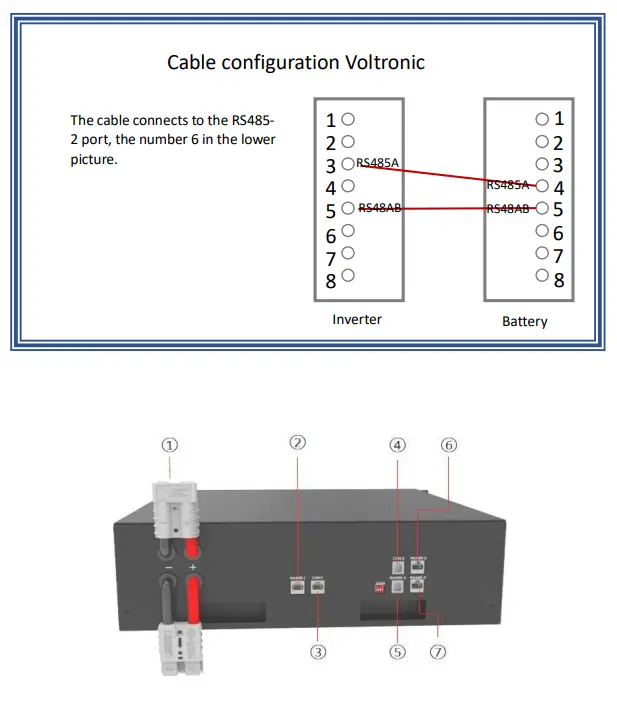

WIRING Configuration (Voltronic VMIII)
The cable needed to make the connection is the RJ45 between the battery group and the Inverter is a special cable that is composed of 8 smaller cables each with a different color configuration. Inside the battery case is the communication cable with the corresponding labeling.
Configuration Without Communications Voltronic MKS (Can also be used in le Voltronic VMIII).
To make a correctly configuration, just four parameters must be changed: 5, 26, 27 and 29. These changes are made from the inverter’s own display.
| PARÁMETRO | CONFIGURACIÓN |
| 5 | USE |
| 26 | 56,8 V |
| 27 | 56,4 V |
| 29 | 43,2 V |
A. DIP configuration
When the battery works by voltage, it is not necessary to communicate the batteries with each other or select a certain DIP configuration.
Connection of the batteries
Each power cord can carry a maximum of 120 A, so every two batteries a new cable would need to be connected to the inverter. However, if the inverter is 5 kW with a cable it would be sufficient to be within the limit of the maximum recommended current.
