TURBO ENERGY SOLAR INNOVATION Lithium Series 48V 5.1kWh Slim Victron Inverter
INVERTER VICTRON configuration

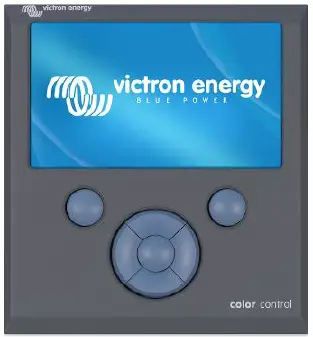

The configuration between the inverter and the battery is quite simple. In fact, to facilitate the control and operation of the installation, a device called COLOR CONTROL GX is used.

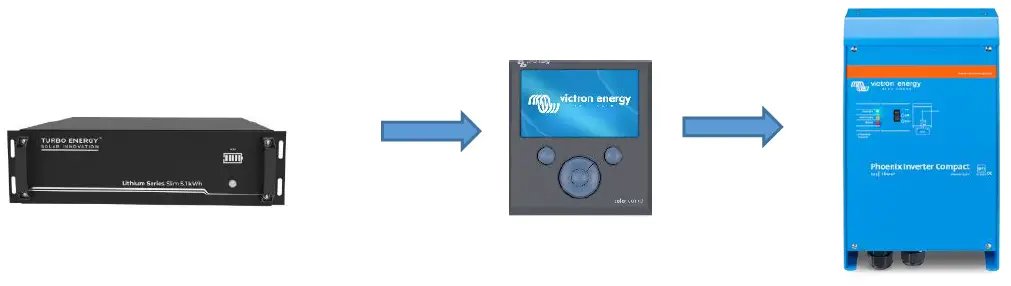

The connection of the communication is made between the master battery and the Color Control, and from the Color Control to the inverter.
Configuration Lithium Series 48V 5.1kWh Slim
Each module has 4 DIP (Dual Inline Package) switches that will be configured differently depending on the number of batteries to be connected
| Address | Dial switch position | Explain | |||
| #1 | #2 | #3 | #4 | ||
| 1 | ON | OFF | OFF | OFF | Pack1/Master |
| 2 | OFF | ON | OFF | OFF | Pack2 |
| 3 | ON | ON | OFF | OFF | Pack3 |
| 4 | OFF | OFF | ON | OFF | Pack4 |
| …… | |||||
Wired configuration

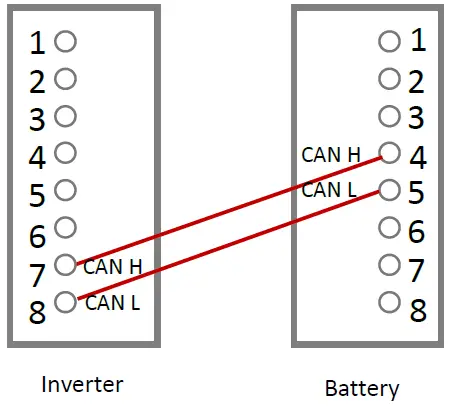

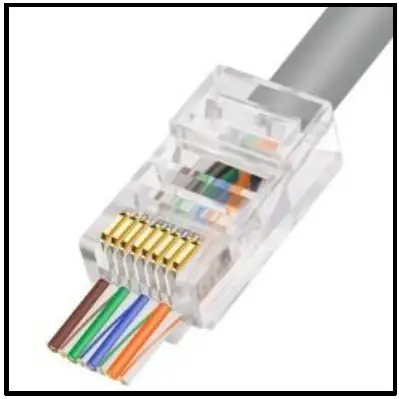

The cable needed to make the connection is the RJ45. It is a special cable that is composed of 8 smaller cables each with a different color configuration. The battery includes the connection cable with the inverter. The cable is included inside the battery box.
The cable must be connected to port CAN-2.
