Victron Energy 3000va Multiplus-ii Inverter Installation Guide

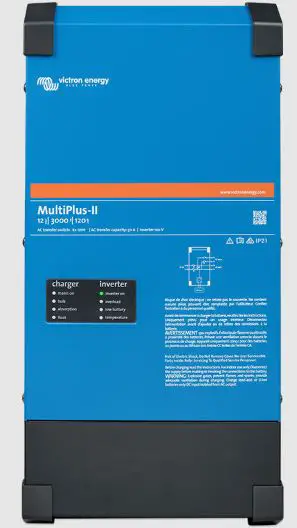

victron energy 3000VA MultiPlus-II Inverter

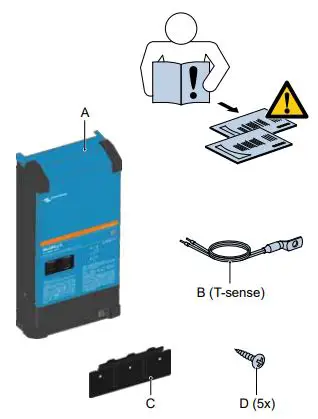

Included

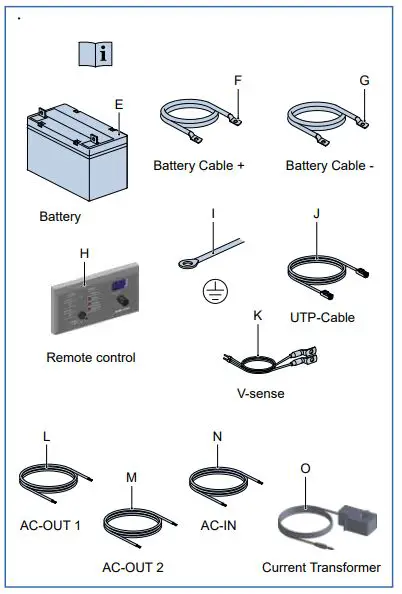

Not included

For fuse values:
refer to the user manual Fuse (not included)

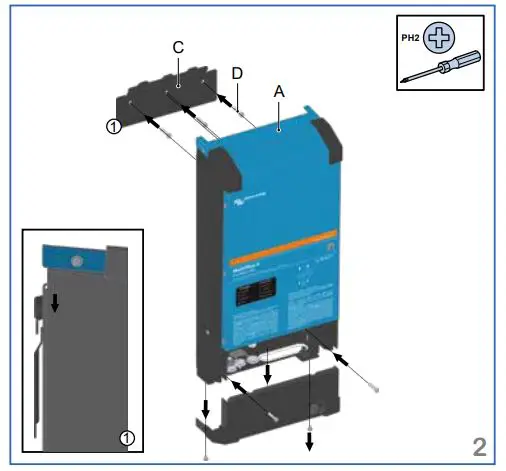

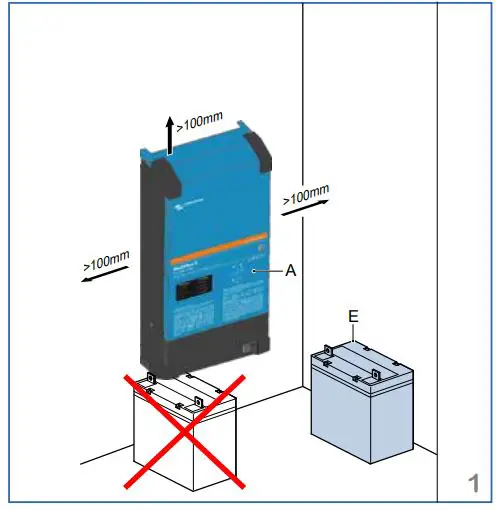

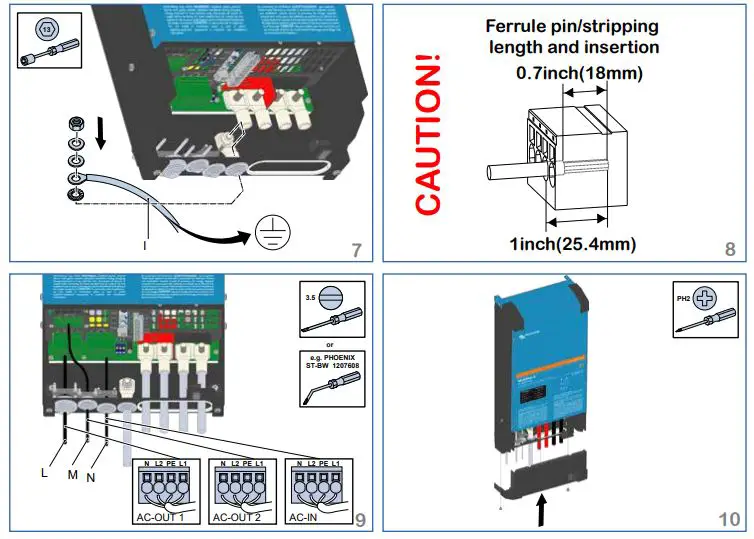

INSTALLATION

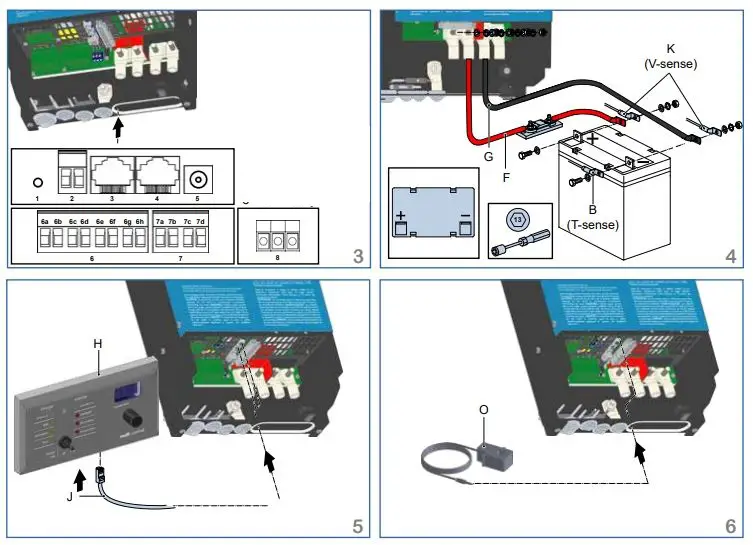

Terminals explanation Read the manual

1. Push-button A
2. Remote On/Off
3. 3,4 – VE.Bus
4. Current Sense
5.  a,b (+,-) K1
   • c,d (+,-) Ext. GND
   • e,f (+,-) Aux2
   • g,h (+,-) Aux1
6. 7 – a,b (+,-) T-Sense
   • c,d (+,-) V-Sense
7. Aux Relay
