QUICK INSTALLATION GUIDE

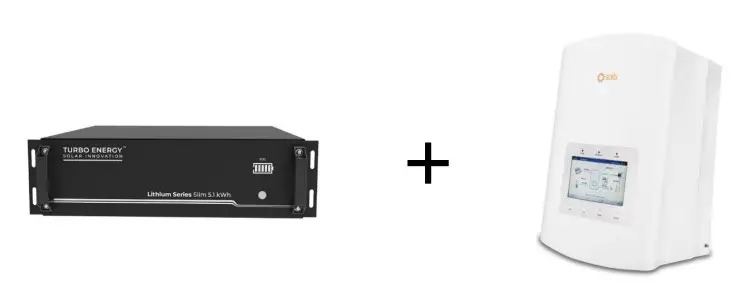

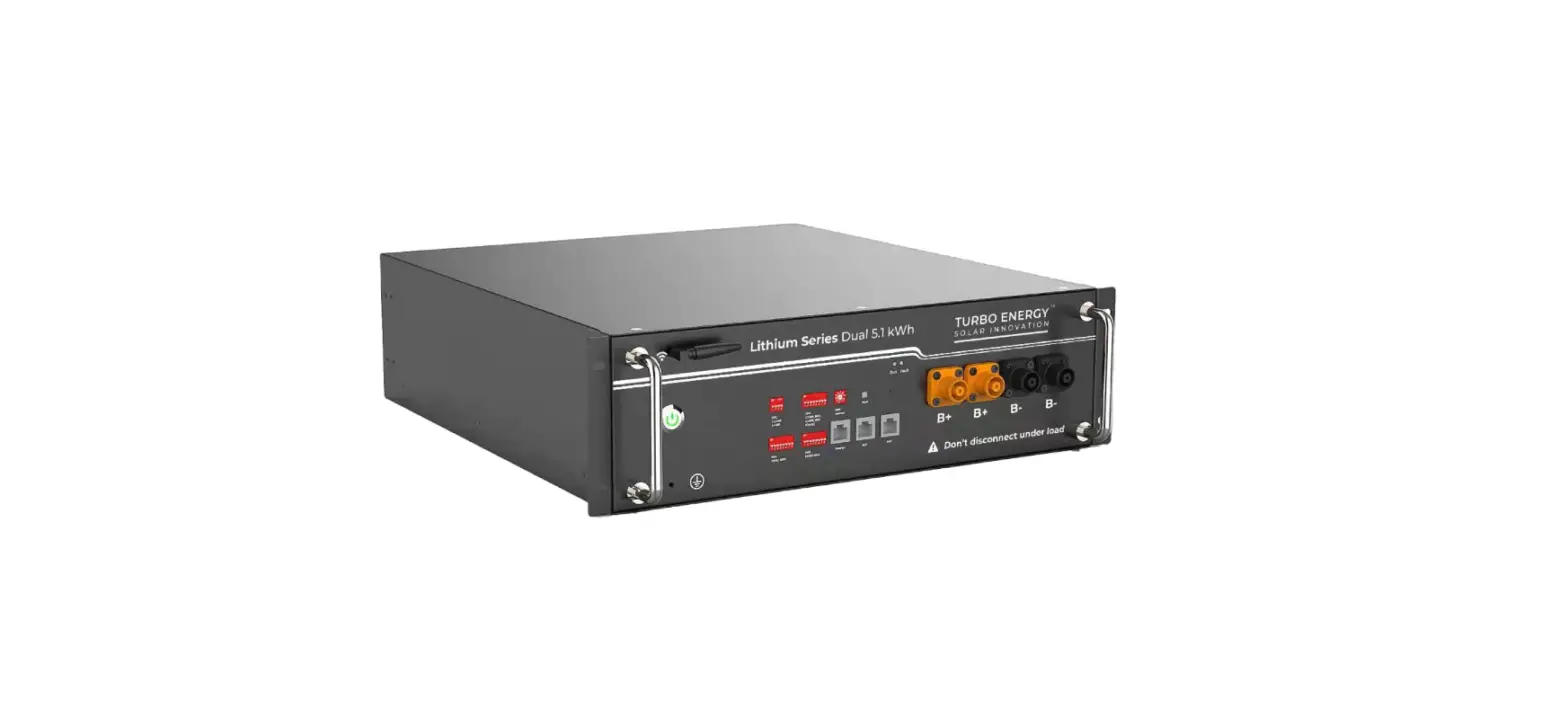

LITHIUM SERIES 48V 5,1kWh Slim +INVERTER SOLIS
1. Battery configuration
Each module has 4 DIP (Dual Inline Package) switches that will be configured differently depending on the number of batteries to be connected.
| Address | Dial switch position | Explain | |||
| #1 | #2 | #3 | #4 | ||
| 1 | ON | OFF | OFF | OFF | Pack1/Master |
| 2 | OFF | ON | OFF | OFF | Pack2 |
| 3 | ON | ON | OFF | OFF | Pack3 |
| 4 | OFF | OFF | ON | OFF | Pack4 |
| …… | |||||
Any changes to the DIPs must be made with the battery turned off.
2. WIRING Configuration (Solis)

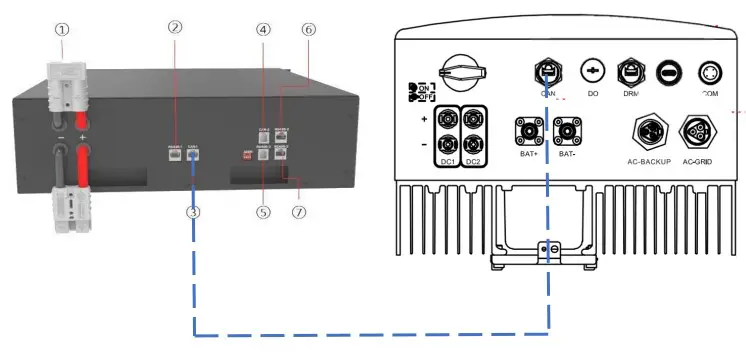

The cable needed to make the connection is the RJ45. It is a special cable that is composed of 8 smaller cables each with a different color configuration.
It must use a standard pin-to-pin cable with RJ45 connector and connect the CAN-1 port of the battery (3) with the CAN port of the inverter.
3. Inverter configuration

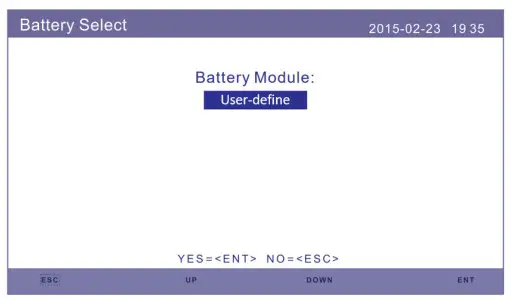

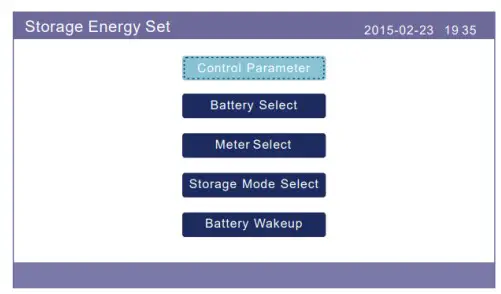

For the configuration of the inverter, it is necessary to select USER-Define in the battery module within battery select.

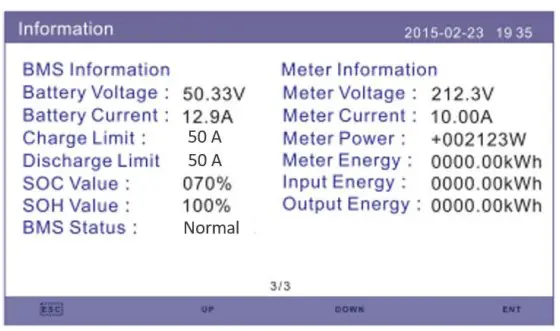

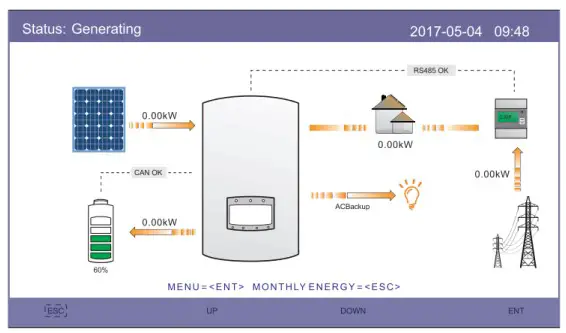

It will be checked that the communication is correct if can OK appears on the main screen between the battery and the inverter. Also, on page 3 of Information the BMS Status has to appear as NORMAL
A. Battery conection
Each power cord can carry a maximum of 120 A, so every two batteries a new cable would need to be connected to the inverter. However, if the inverter is 5 kW with a cable it would be
sufficient to be within the limit of the maximum recommended current.
