Installation Instruction for Axle Scales

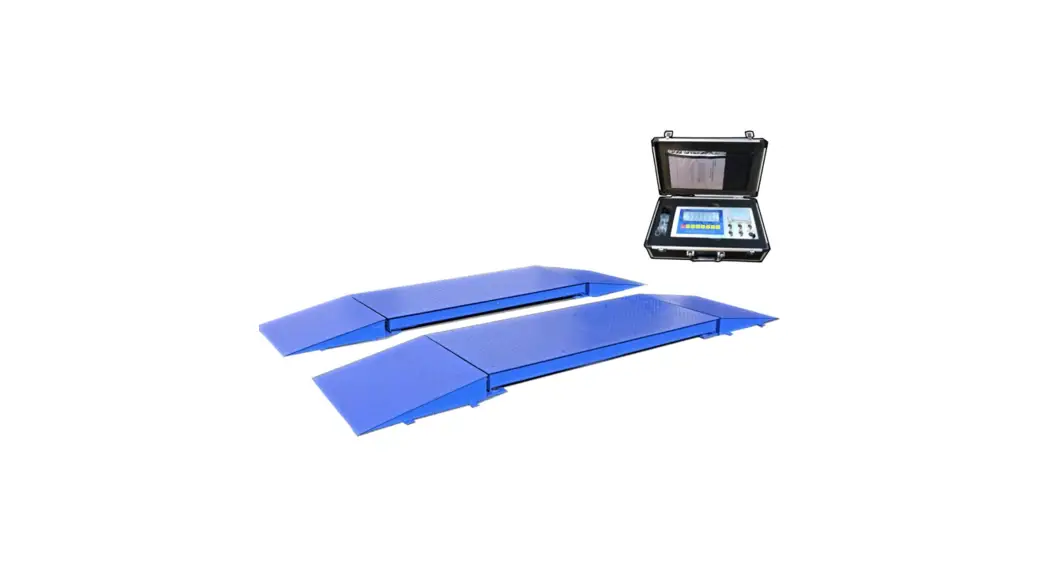

SL-60KX Heavy Duty 7′ Truck Axle Scale

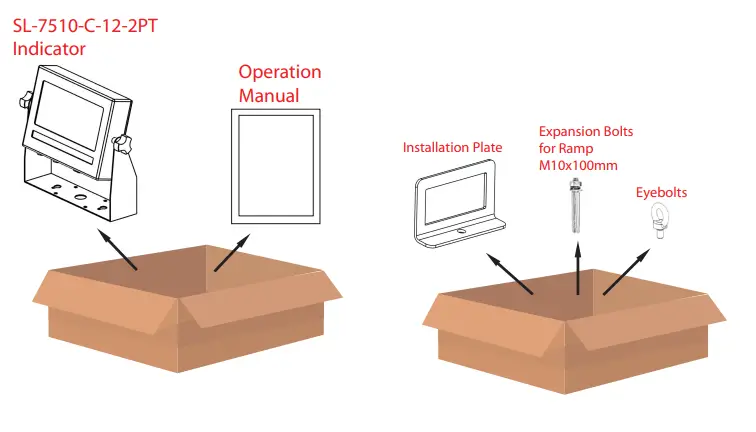

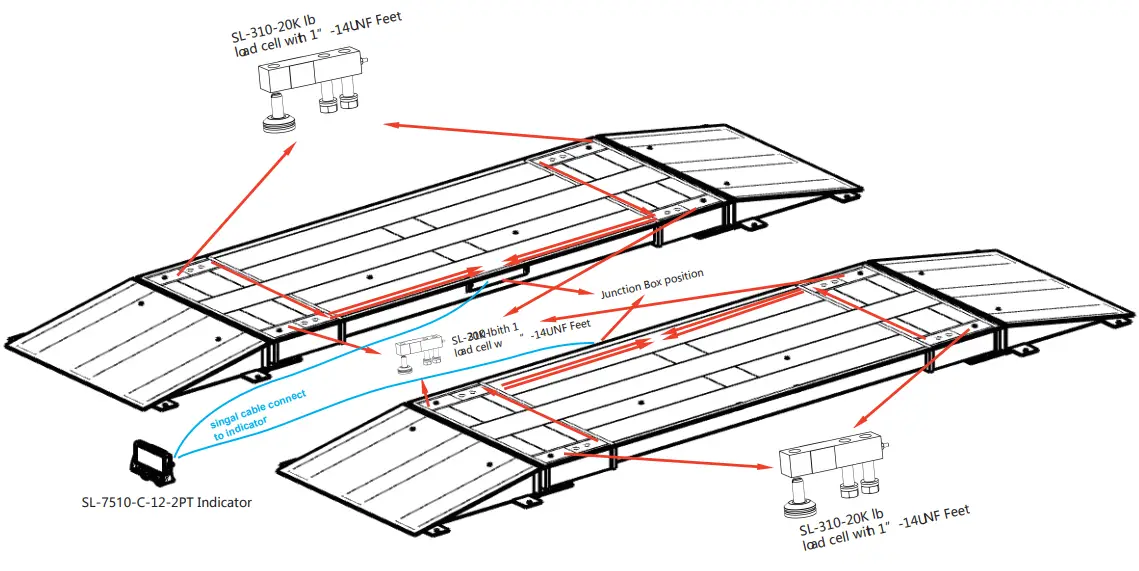

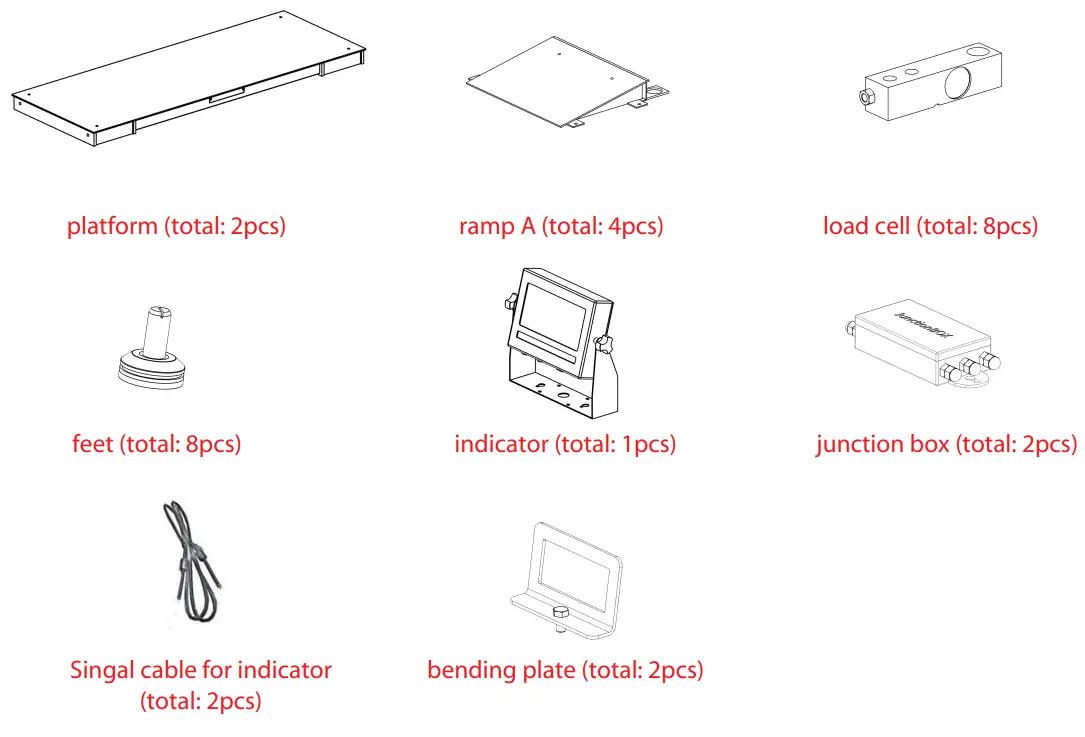

Scale Components
Bolts details
 | bolt for load cell M24 x 75 mm (total: 16 pcs) |
 | expansion bolt M16 x 100 mm (total: 28 pcs) |
 | Limit bolt M20 x 70 mm (total: 8 pcs) |
 | bolt for bending plate (total: 16 pcs) |
 | M16 eyebolt (total: 2 pcs) |
Tools Required for Installation
- Make sure the complete installation is done on a level ground .

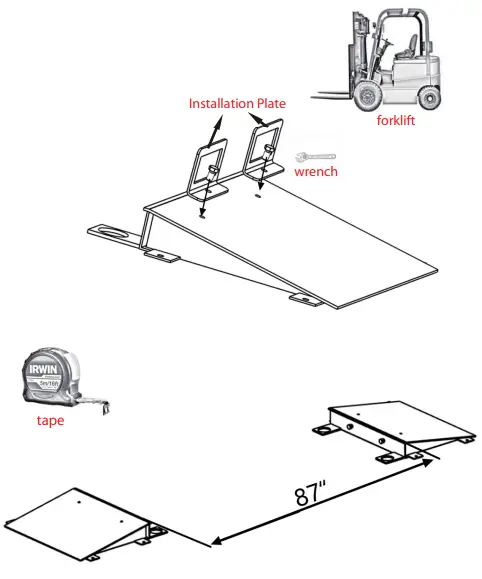

- Bolt the installation plate to the ramps and place the ramps 87″ apart in parallel with forklift .

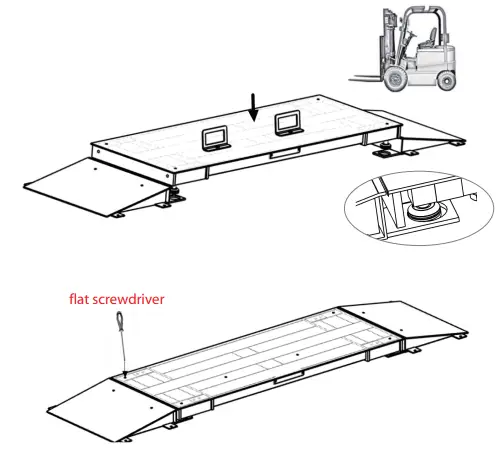

- Bolt the installation plates to the platform and screw the four threaded level feet into the four corners of the platform while lifting it with the forklift .
- Place the platform between the two ramps, making sure all the feet sit inside the rings on the ramps .
If necessary, adjust the height with a screwdriver from the top.

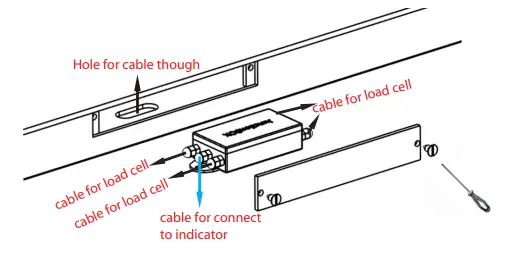

- Pull out the interface cable Open the cover on the side and you will find the junction box with a 50ft long cable nested inside. Run the cable (with connector) through hole on the bottom and pull it out from underneath as long as you need . Close the cover with the original screws after this is finished .

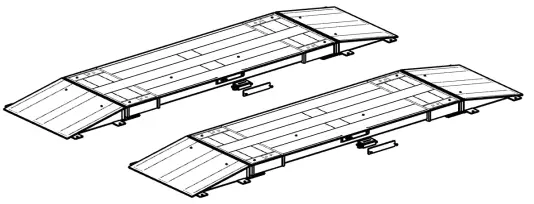

- Follow the same steps to install the other set .

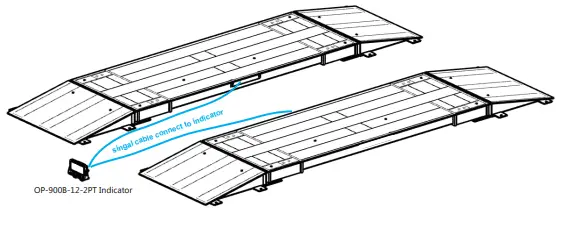

- Plug the connectors on the interface cables to the 2 ports of the indicator .

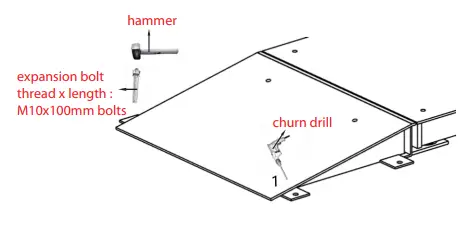

- For permanent use, install anchoring bolts to the ramps .
