RIGHT WEIGH 201-EBT-10B Exterior Digital Spring Suspension Scale
WHAT’S INCLUDED

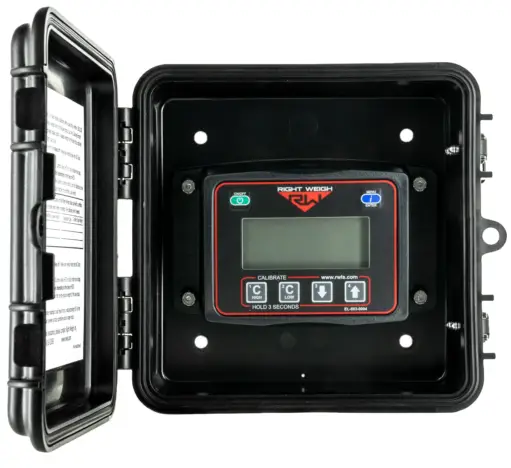

- 1 x 201-217-10 – Gauge and mounting bracket
- 1 x 218-SK – Weld strain sensor installation kit
SENSOR CONFIGURATION

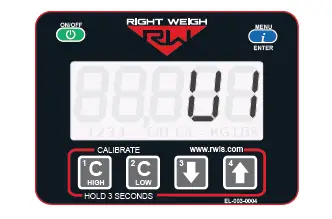

The gauge should be set to detect 1 Spring Sensor. See Spring Suspension Gauge manual for more information on how to set the sensor configuration
APPLICATIONS

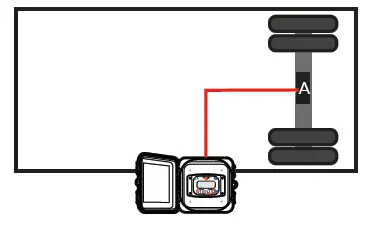

Single Axle Traile
The strain sensor should be located on the top, center of the axle. See 218-SK manual for more information on how to install the sensor

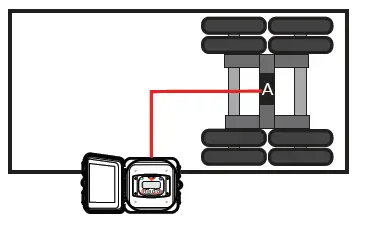

Single Point Trailer Axle
The strain sensor should be located on the top, center of the trunnion tube. See 218-SK manual for more information on how to install the sensor

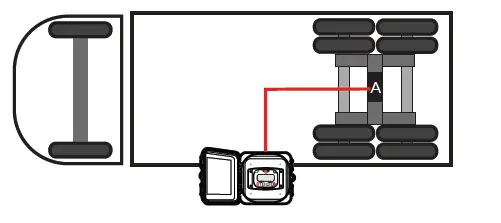

Straight Truck with Trunnion Tube
The strain sensor should be located on the top, center of the trunnion tube. See 218-SK manual for more information on how to install the sensor
Mode:
Set the gauge to average mode (AVG) – gives average weight of all axles on axle group. See Spring Suspension Gauge manual for information on how to set the mode
CONTACT US!
- Smart Truck Solutions
- +61 418 622840
- rightweigh.com.au
- [email protected]
Scan here to see additional resources on our website including full installation manuals, quick set up guides, and video tutorials
