Right Weigh 201-ebt-11b Exterior Digital Scale For Straight Trucks Installation Guide

RIGHT WEIGH 201-EBT-11B Exterior Digital Scale for Straight Trucks

WHAT’S INCLUDED

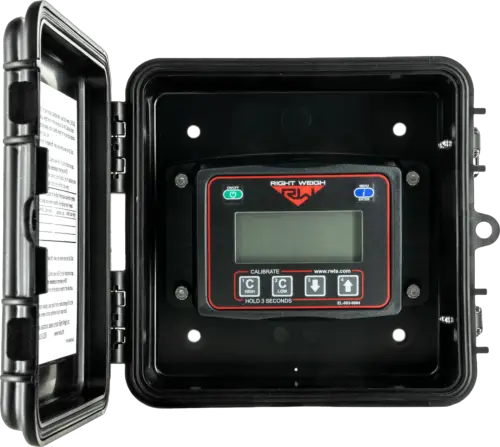

• 1 x 201-217-11 – Gauge and mounting bracket
• 1 x 221-SK – Epoxy strain sensor installation kit

SENSOR CONFIGURATION

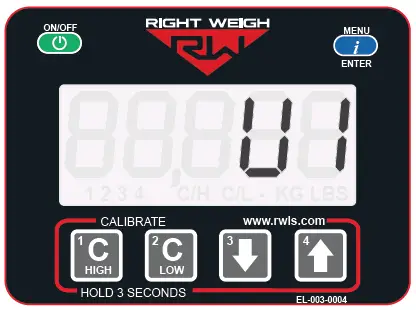

The gauge should be set to detect 1 Spring Sensor. See the Air/Spring Suspension Gauge manual for more information on how to set the sensor configuration.

APPLICATIONS

Straight Truck: Spring Steer and Air Drive Suspension

Sensor Location:

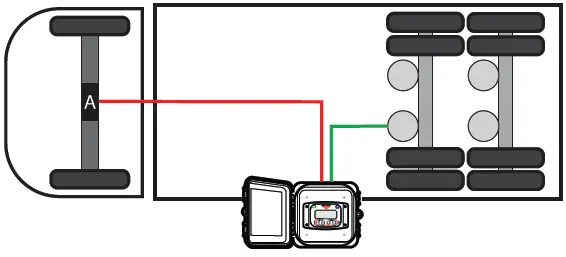

The strain sensor should be located on the top, and center of the steer axle. See the 221-SK manual for more information on how to install the sensor. The air sensor should be connected directly to an airbag on the drive axle group.

Mode:
Set the gauge to Spring Average Air Average (SA AA) mode – separates weight into the front axle group (steer axle) and the back axle group (drive). See Air/Spring Suspension Gauge manual for information on how to set the mode.

CONTACT US

Smart Truck Solutions
+61 418 622840
rightweigh.com.au [email protected].

Scan here to see additional resources on our website including full installation manuals, quick setup guides, and video tutorials!
