RIGHT WEIGH 201-EBT-30B Exterior Digital Spring Suspension Scale
Installation Guide
201-EBT-30B Exterior Digital Spring Suspension Scale
INSTALLATION OVERVIEW
201-EBT-30B
This installation overview is not a substitute for reading the product manuals
WHAT’S INCLUDED
 | 1 x 201-217-30 – Gauge and mounting bracket |
 | 3 x 218-SK – Weld strain sensor installation kit |

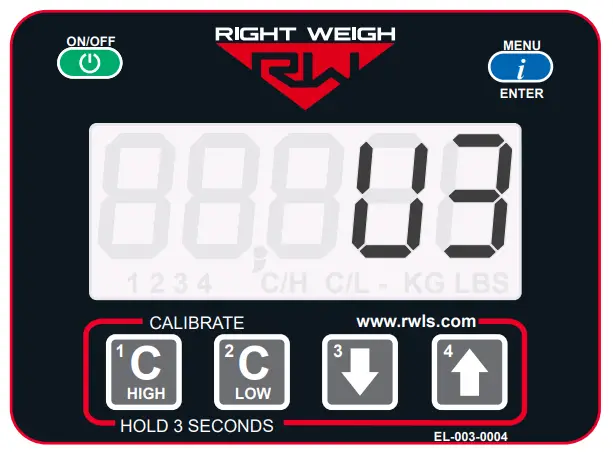

SENSOR CONFIGURATION
The gauge should be set to detect 3 Spring Sensors. See Spring Suspension
Gauge manual for more information on how to set the sensor configuration.
APPLICATIONS
Trailer Axle Group: Tri Axle
Sensor Location:

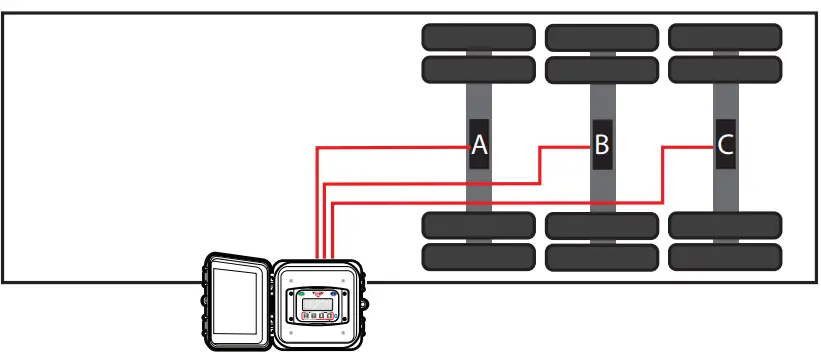

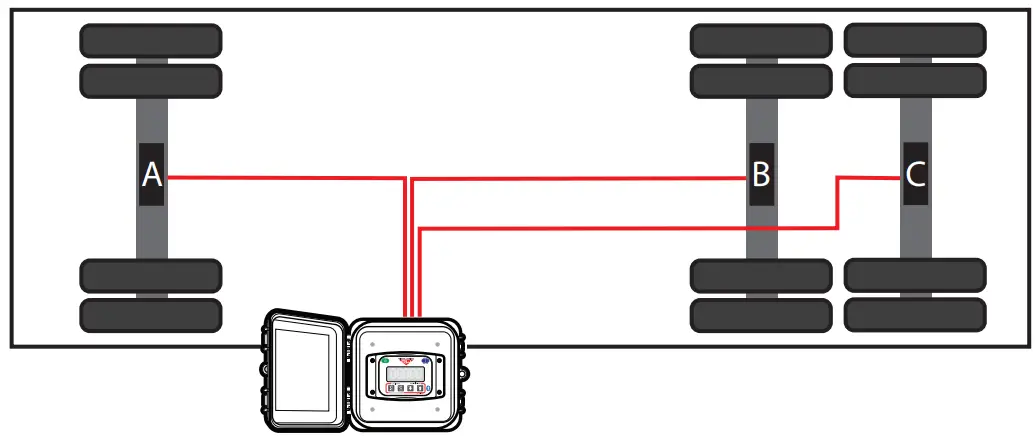

The strain sensors should be located on the top, center of each axle with sensor “A” being the front axle and sensor “C” the rear axle. See 218-SK manual for more information on how to install the sensors.
Mode:
Set the gauge to either Average (AVG) or Independent (IDP) mode. AVG mode gives a single weight for the axle group. IDP mode measures three separate weights for each axle on the trailer. See Spring Suspension Gauge manual for information on how to set the mode.
Mode:
Set the gauge to either Front 1 Back 2 (F1b2) or Independent (IDP) mode. F1b2 mode measures the front axle separately from the back axles. IDP mode will measure three separate weights for each axle on the trailer. See Spring Suspension Gauge manual for information on how to set the mode.
