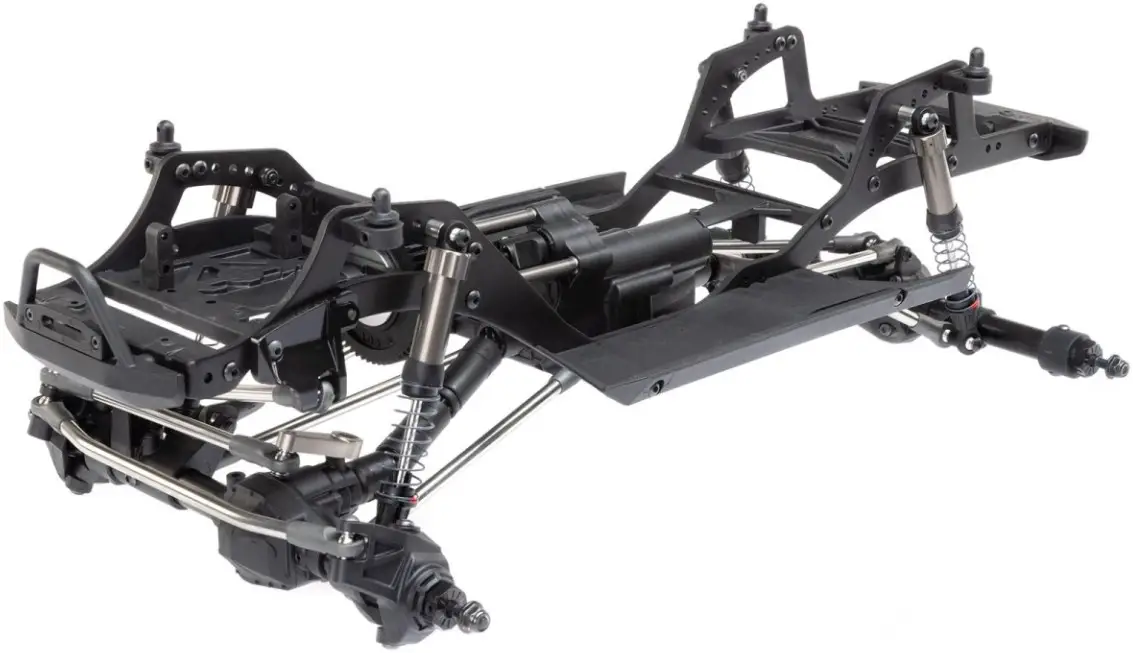

axial AXI03028 Scale Truck Kit User Manual

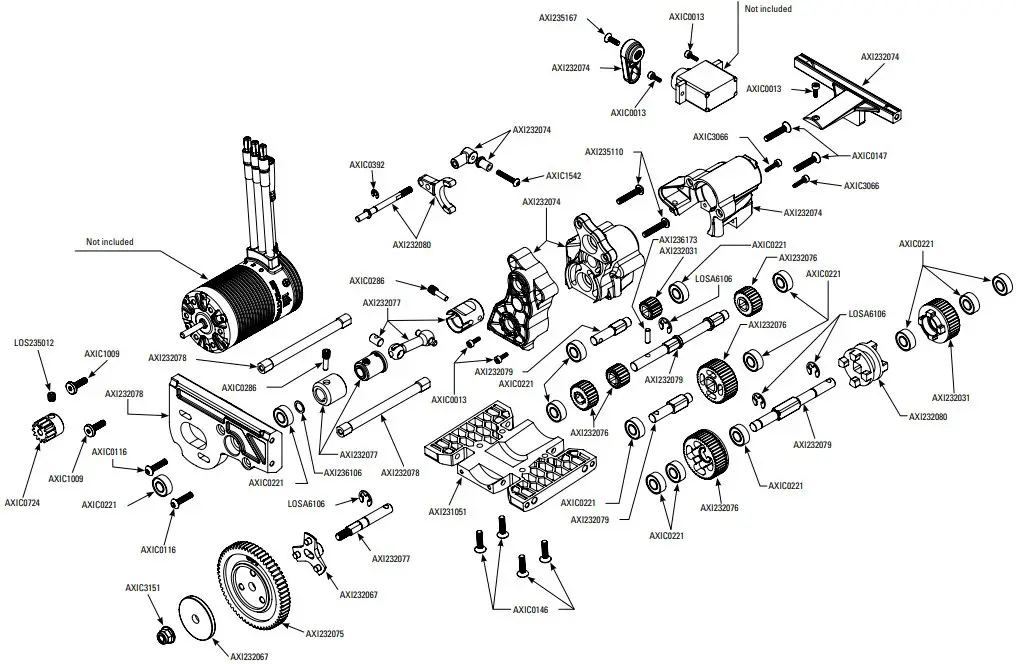

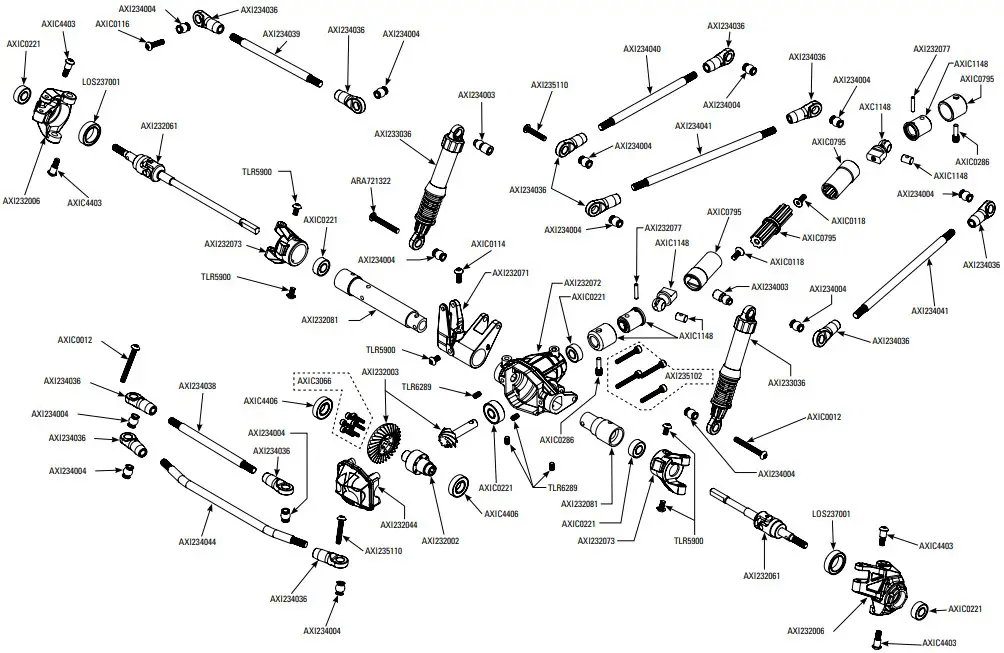

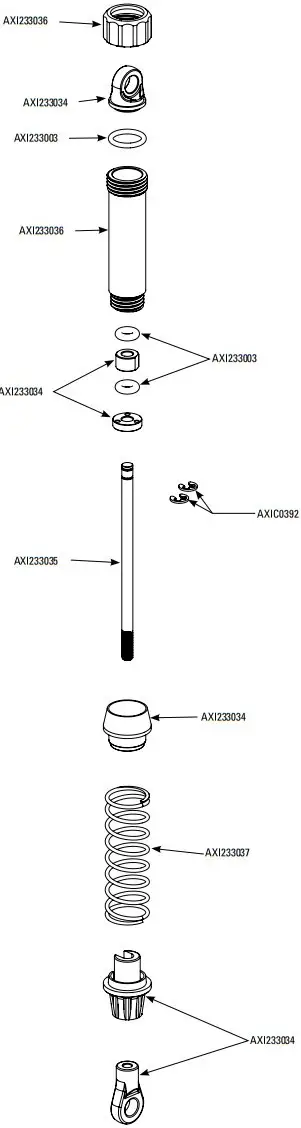

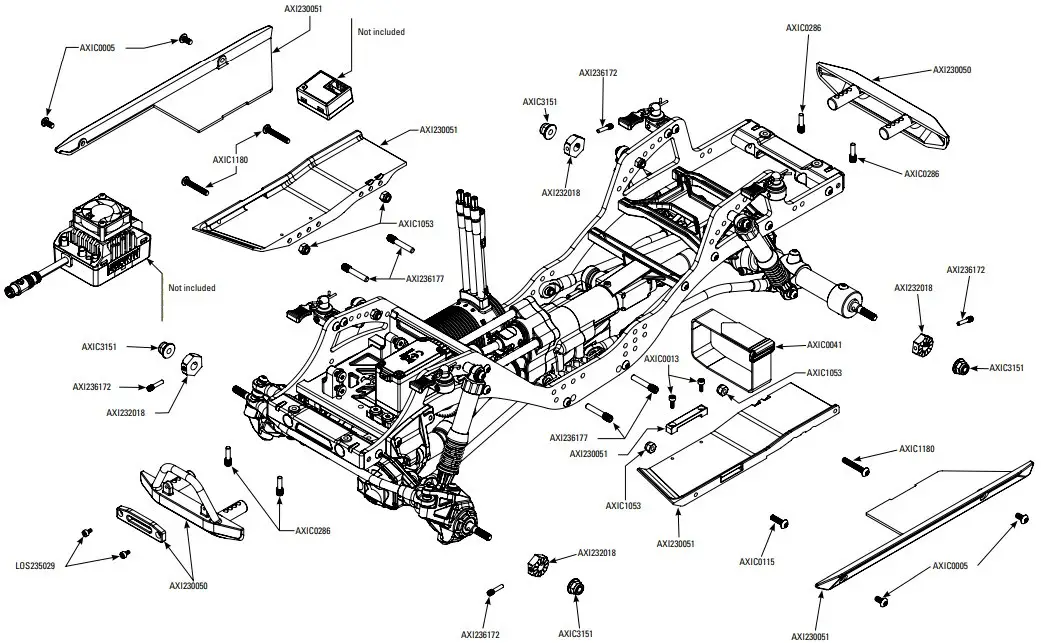

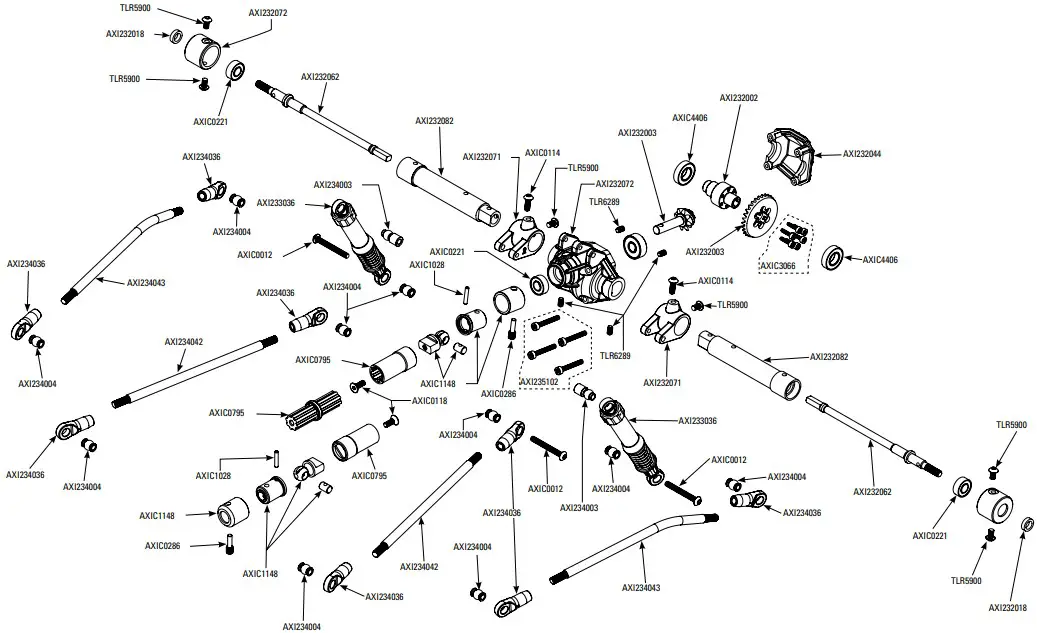

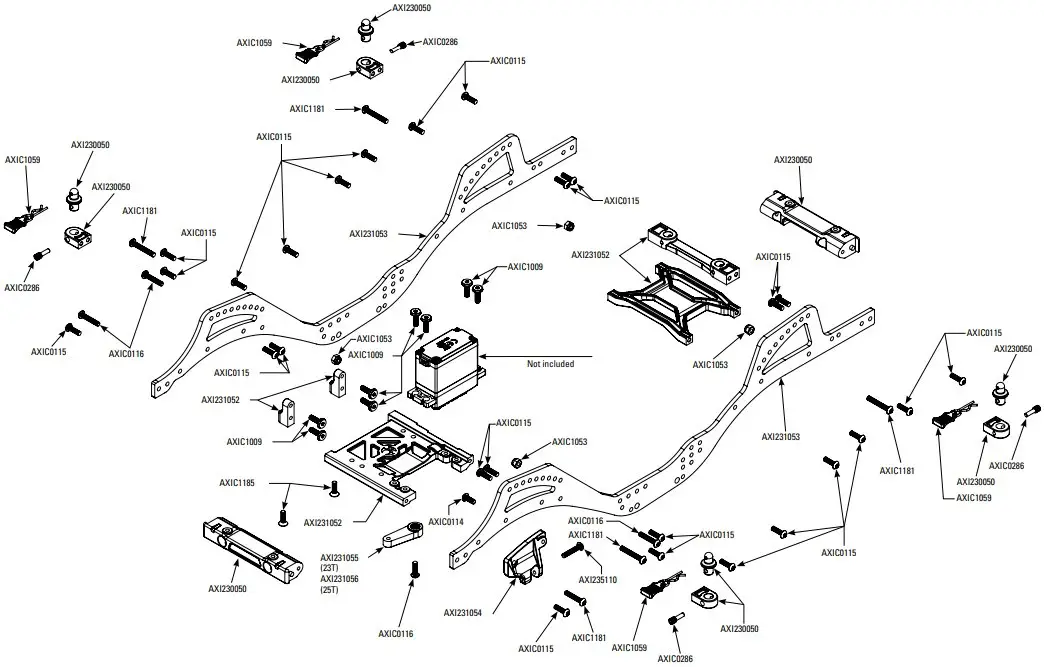

EXPLODED VIEWS
REPLACEMENT PARTS
| Part # | |
| AXI230050 | Bumper & Mounts Set: PRO |
| AXI230051 | Rock Slider Set: PRO |
| AXI231051 | Skid Plate Center: PRO |
| AXI231052 | Servo & Winch Mnt, Chas Brc: PRO |
| AXI231053 | Chassis Rail Set, Alum: PRO |
| AXI231054 | Panhard Chassis Mount: PRO |
| AXI231055 | Servo Horn, Metal 23T: PRO |
| AXI231056 | Servo Horn, Metal 25T: PRO |
| AXI232002 | 6-Bolt Differental Locker |
| AXI232003 | 6-Bolt Heavy Duty Gear Set |
| AXI232006 | Currie F9 Portal Steering Knuckle & Cap: UTB |
| AXI232018 | 12mm Hex Screw Shaft & Spacer (4): Capra |
| AXI232044 | AR45/P Diff Cvrs Black SCX10 III |
| AXI232061 | AR45 Unvrsl Axles (2): SCX10 III |
| AXI232062 | AR45 Strght Axles (2): SCX10 III |
| AXI232067 | Slipper Elimintr Hub&Plate: LCXU |
| AXI232071 | Axl Tube Link Mnt Set & Cap: PRO |
| AXI232072 | Axle Cntr 3rd Mbr Hsng & Cvr:PRO |
| AXI232073 | C Hub Carrier Set: PRO |
| AXI232074 | Mtr Mnt, Trans Case & Link: PRO |
| AXI232075 | Spur Gear, 60T 32P: PRO |
| AXI232076 | Transmission Metal Gear Set: PRO |
| AXI232077 | Spur Gear Shaft Uni Set: PRO |
| AXI232078 | Motor Mount and Posts: PRO |
| AXI232079 | Transmission Shaft Set: PRO |
| AXI232080 | U.D. Shaft, Fork & Slider: PRO |
| AXI232081 | Axle Tube Set, Front, Steel: PRO |
| AXI232082 | Axle Tube Set, Rear, Steel: PRO |
| AXI233003 | Shock O-Ring Set: UTB |
| AXI233034 | Molded Shock Parts Set: PRO |
| AXI233035 | Shock Shaft 3mm x 58mm (2): PRO |
| AXI233036 | Shock Set Complete (2): PRO |
| AXI233037 | Spring, Shock, 12mm x 36mm .13 Red |
| AXI234003 | Pivot Ball, Stainless Steel 12.75mm (4) |
| AXI234004 | Susp Pivot Ball, Stainless Steel 7.5mm (10) |
| AXI234036 | M4 Straight Rod End: PRO |
| AXI234037 | S.S. M4x5mmx50.7mm Link (2): PRO |
| AXI234038 | S.S. M4x5mmx77.4mm Link (2): PRO |
| AXI234039 | S.S. M4x5mmx80.1mm Link (2): PRO |
| AXI234040 | S.S. M4x5mmx84.4mm Link (2): PRO |
| AXI234041 | S.S. M4x5mmx105.6mm Link (2): PRO |
| AXI234042 | S.S. M4x5mmx111mm Link (2): PRO |
| AXI234043 | S.S. M4x5mmx118.2mm HC Lnk 2: PRO |
| AXI234044 | Str Lnk S.S. M4x5mmx129.4mm:PRO |
| AXI235110 | M3 x 16mm Button Head Screw (10) |
| AXI235230 | M2.5 x 18mm Cap Head Screw (10) |
| AXI236106 | Shim Set 9.5x16x.1,.3,.5mm (6ea) |
| AXI236172 | Screw Shaft M3 x 2.0 x 12mm (10) |
| AXI236173 | M2.5 x 8mm Pin (6) |
| AXI236177 | Screw Shaft M4x3.0x20mm (10) |
| AXIC0005 | Button Head Screws, M3 x 6mm |
| AXIC0012 | Button Head Screws, M3 x 25mm |
| AXIC0013 | AXA013 Cap Hd M2x6mm Blk Oxide |
| AXIC0041 | AX30041 Hook/lp Strap 16x200mm |
| AXIC0114 | Button Head Screws, M3 x 8mm |
| AXIC0115 | Button Head Screws, M3 x 10mm |
| AXIC0116 | Button Head Screws, M3 x 12mm |
| AXIC0146 | Flat Head Screw, M3 x 12mm |
| AXIC0147 | Flat Head Screw, M3 x 16mm |
| AXIC0221 | 5 x 11 x 4mm Bearings |
| AXIC0286 | AXA0286 Screw Shaft M4x2.5×12 |
| AXIC0392 | E-Clips, 2mm (10) |
| AXIC0795 | AX31586 Wb8-hd Std Driveshafts |
| AXIC1009 | AXA0109 Hex Skt Oversize M3x10mm |
| AXIC1028 | AX31028 Pin 2.0x11mm (6) |
| AXIC1053 | Nylock Nut, M3 (10) |
| AXIC1059 | AXA1059 Body Clip 6mm Black (10) |
| AXIC1119 | Button Head Screws, M3 x 35mm (10) |
| AXIC1148 | AX31148 Wb8-hd Drvshft Coupler |
| AXIC1180 | Button Head Screws, M3 x 18mm (10) |
| AXIC1181 | Button Head Screws, M3 x 20mm (10) |
| AXIC1185 | Flat Head Screw, M3 x 10mm (10) |
| AXIC1542 | Button Head Screws, M2.5 x 12mm (10) |
| AXIC3066 | Cap Head Screws, M2 x 8mm (10) |
| AXIC3151 | AX31051 Nylon Lock H |
| AXIC4403 | AX31403 Bttn Hd Scrw M3x4x10mm (6) |
| AXIC4406 | 7 x 14 x 3.5mm Bearings |
| AXIC4407 | 5 x 14 x 5mm Bearings (2) |
| LOS235012 | Set Screws M4 x 4mm Cup Point (10) |
| LOS235029 | Cap Head Screws, M2 x 4mm (10) |
| LOS237001 | 10 x 15 x 4mm Bearings (2) |
| LOSA6106 | E-Clips, 4mm (12) |
| TLR5900 | Button Head Screws, M3 x 5mm (10) |
| ARA721322 | Button Head Screws, M3 x 20mm (10) |
| TLR5961 | Flathead Screws, M3 x 8mm (10) |
OPTIONAL PARTS
| Part # | |
| AXI230052 | Body Set: PRO |
| AXI331000 | Carbon Chassis Rail Set: PRO |
| AXI332007 | Aluminum C-Hub L/R: PRO |
| AXI332008 | Brass Steering Knuckle, L/R: PRO |
| AXI332009 | Brass Rear Axle Cap, L/R: PRO |
| AXI332010 | Machined Aluminum Motor Mnt: PRO |
| AXI334003 | Carbon Servo On Axle Mount: PRO |
