LETO 11 & 11.5 Wet
CANOPY WITH SOLID STEM
Overview
Read and follow these instructions before installing or maintaining this product
- This product is suitable for DRY INDOOR LOCATIONS ONLY
- Make sure this product is NOT on the same circuit as inductive loads, (e.g. fluorescent bulbs, discharge bulbs, ventilation fans, etc…)
- Allow air to flow freely around the fixture
- Do not switch on line voltage until all wiring is complete
- Incorrect wiring will result in irreparable damage to LED and power supply
- This product should only be installed by a licensed electrician
Warranty
- This product must be installed in accordance with all applicable installation codes and ordinance
- Limited five (5) years warranty
- Warranty is void in the eventuality of unauthorized modifications and/or improper use Garantie
Installation

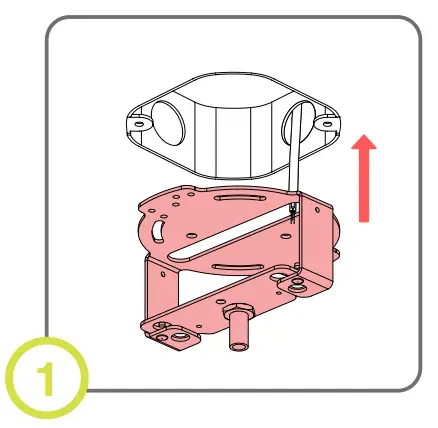

Attach bracket to junction box. Leave wiring accessible.

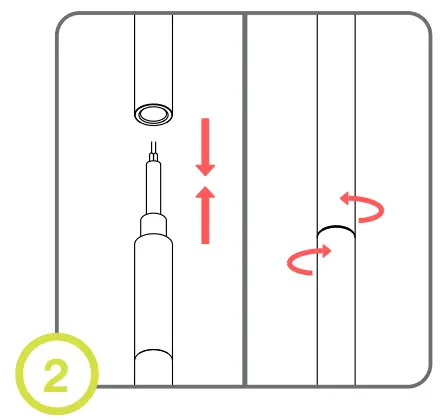

If you only have one stem, skip to step 3. Add loctite to threads. Feed the wires through the other stem and screw each stem together.

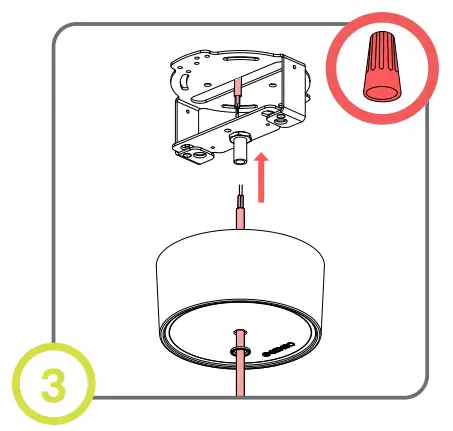

Pass wire through washer and canopy. Make electrical connections.

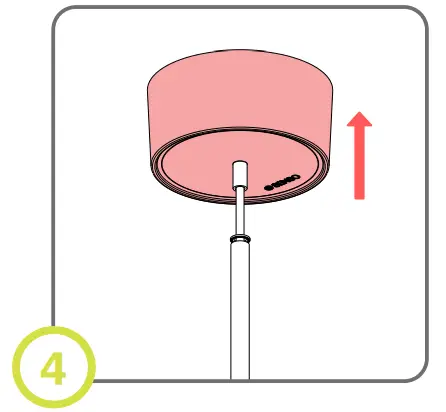

Slide canopy past stem and hold against ceiling.

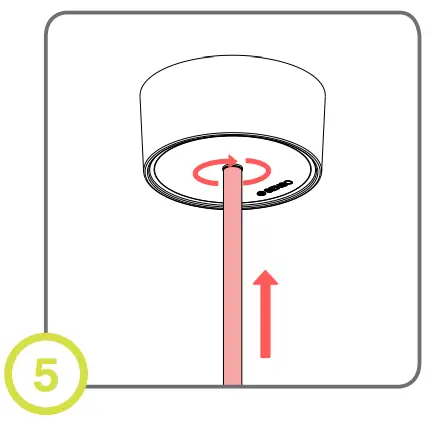

Add loctite to threads. Push feed cable into canopy and thread stem.

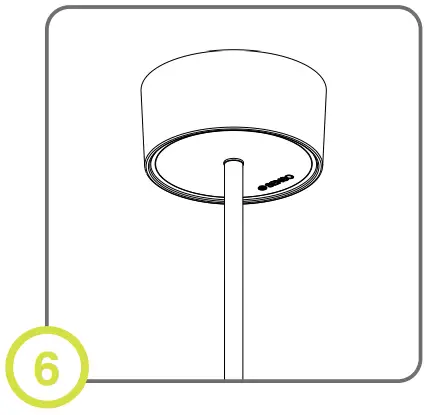

Apply silicone around edge before finishing install.
Rev July 6, 2020
403-216-7043 | [email protected]
