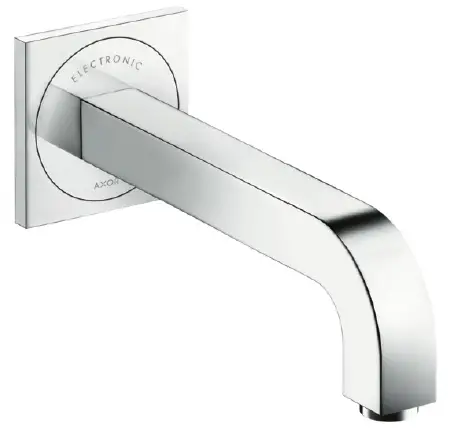

AXOR 39118310 Citterio Electronic Basin Mixer For Concealed
Description
product features
- spout 221 mm long
- Spray pattern: normal spray
- Maximum flow rate (at 3 bar): 5 l/min
- Min. operating pressure: 1 bar
- Max. operating pressure: 10 bar
- temperature adjustable via iBox
- infrared sensor technology
- automatic environmental adjustment of the infrared sensor
- adjustable optical range of the infrared sensor (5 settings)
- 230 V / 50 Hz mains connection
- hygiene rinse activatable (automatic water flow)
- frequency of hygiene rinse: 24 h
- flushing time hygiene rinse: 10 s
- permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)
- cleaning mode: manual flow stop for cleaning
- Noise class: I
- dirt filters in the connection hoses
- for an ideal function please note a minimum distance of 140 mm from the center of the aerator to the back rim of the wash basin
- if running with a pump, please specify a universal (negative head) pump
Article Details
Price excl. VAT £ 1,325.00
Technology

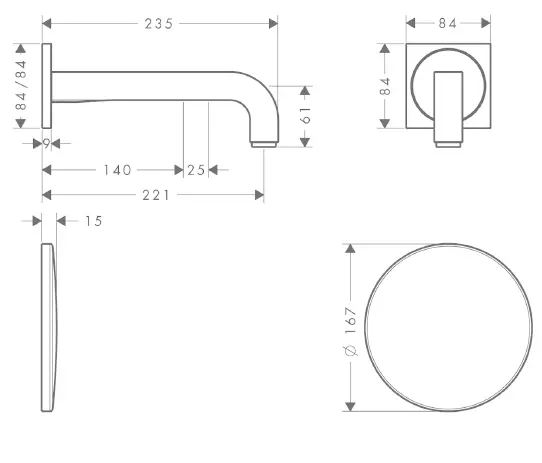

Scale drawing
AXOR Citterio Electronic basin mixer for concealed installation wall-mounted with spout 221 mm Surfaces: brushed redgold___Art. no. : 39118310

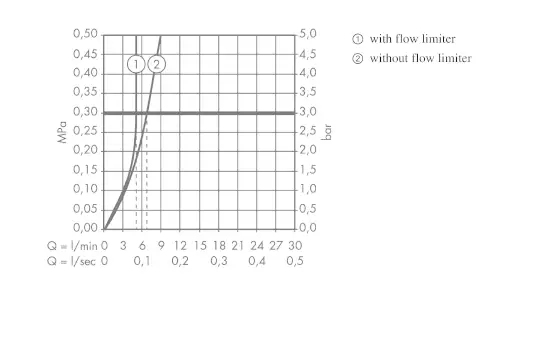

Flowchart

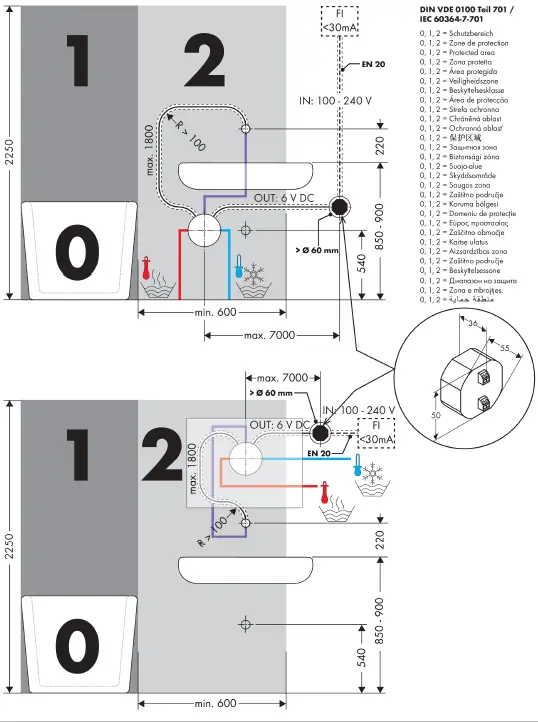

Installation examples
More details online on the website_www.hansgrohe.co.uk_We look forward for your visit
