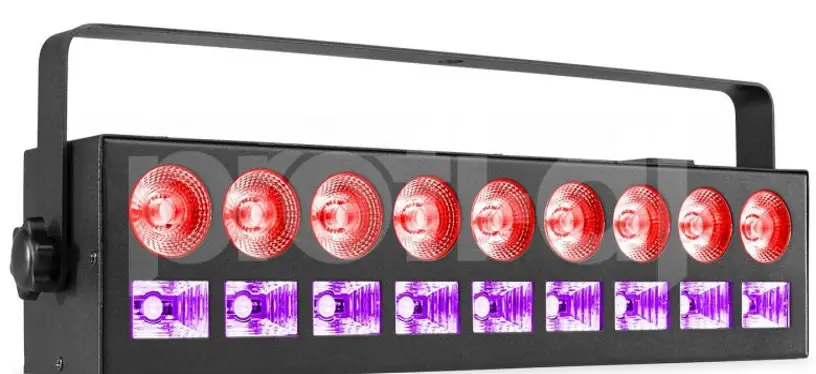

LCB99 LED Bar Light
User Guide
150.711 V1
LCB99 LED BAR
POWER SUPPLY
The label on the backside of the unit is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.
WARNING Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire. The unit may be set up on a stable and even surface.
RIGGING

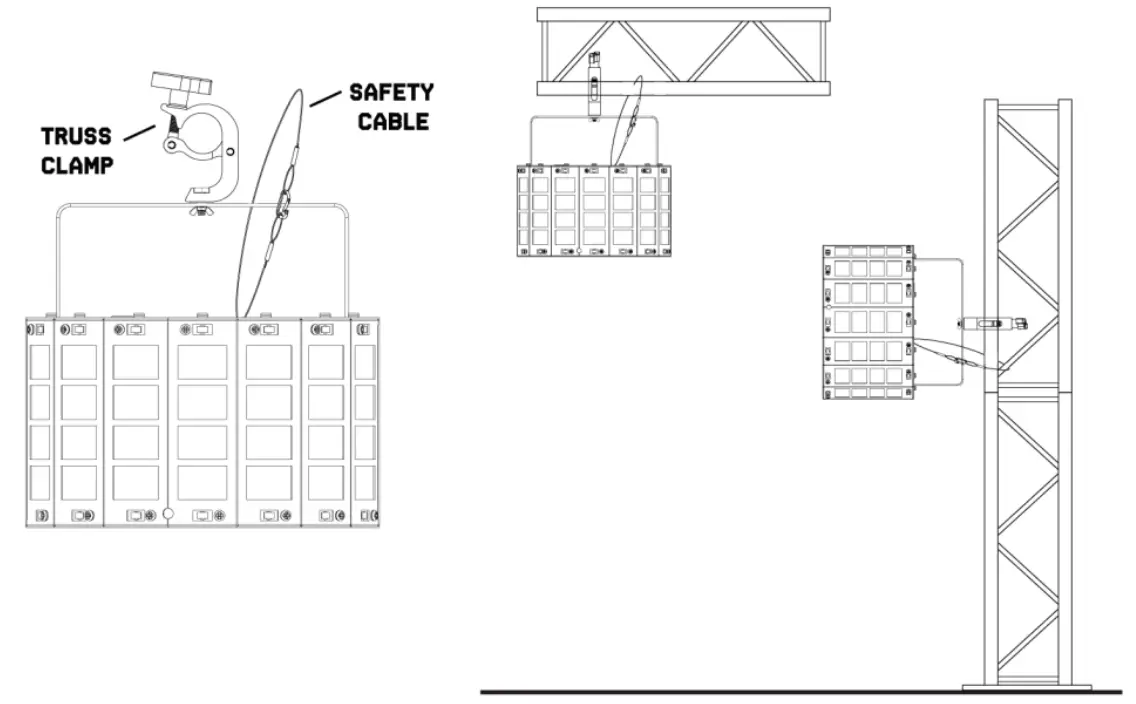

By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see the below picture. For fixing, certified clamps with the correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times the unit’s weight. Secure the unit with a safety cable so that it cannot fall down.
When carrying out any installation, always comply with European and national guidelines concerning rigging, truss, and all other safety issues. Always let the installation be checked out by an authorized dealer!
DMX512 CONTROL

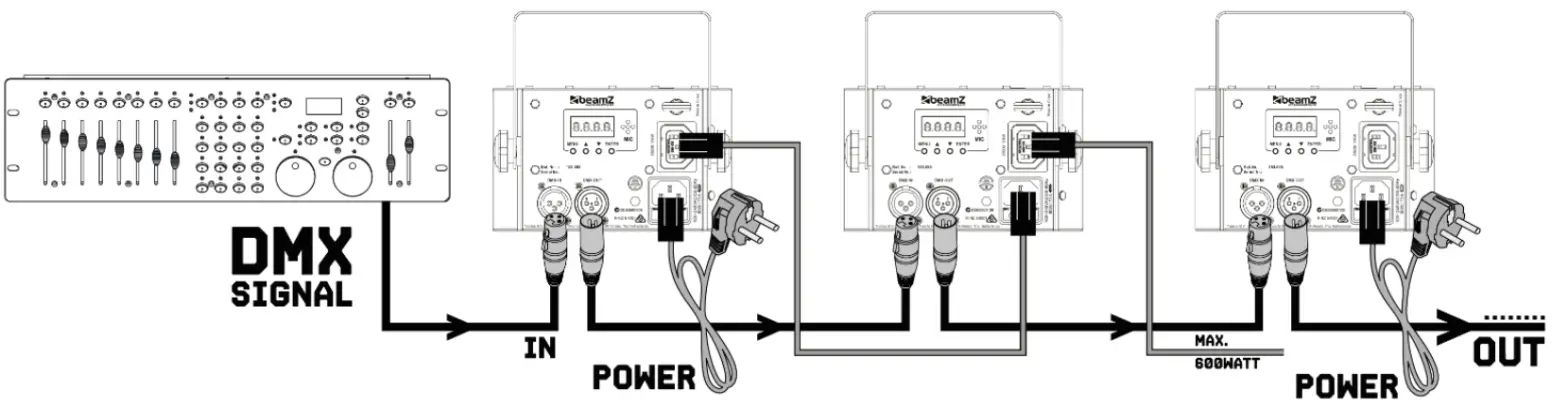

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.

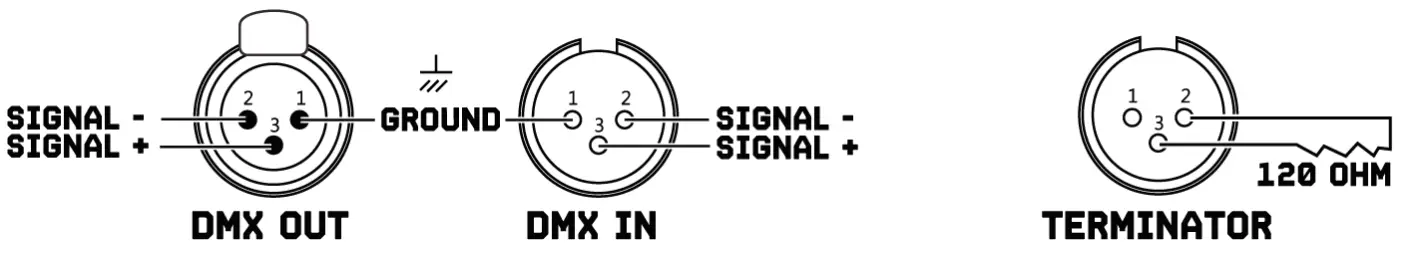

CAUTION At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.
| MENU | DESCRIPTION | ||
| DMX | A001-Axxx | Auto-run mode | |
| AUTO | Aul-32 | Pre-program | |
| HOPPING | FF01-99 | Program with hopping effect | |
| FADE | CC01-99 | Program with fade effect | |
| JUMP | EE01-99 | Program with jump effect | |
| STROBE | F000-255 | Strobe from slow to fast | |
| COLOUR | r000-255 | Red manual adjustment | |
| g000-255 | Green manual adjustment | ||
| 6000-255 | Blue manual adjustment | ||
| u000-255 | White manual adjustment | ||
| 1000-255 | UV manual adjustment | ||
| AUTO | Auto | Autorun | |
| SOUND | SOLD | uoL1-9 | Sound sensitivity adjustment |
| bAon / bAof | Sound mode on/off |
DMX CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Master dimmer | 000-255 | Dimming 0-100% |
| 2 | 000-255 | Red. 0-100% | |
| 3 | 000-255 | Green. 0-100% | |
| 4 | Colour | 000-255 | Blue. 0-100% |
| 5 | 000-255 | White. 0-100% | |
| 6 | 000-255 | UV. 0-100% | |
| 7 | Strobe | 000-009 | No function |
| 010-255 | Strobe. slow to fast ( CHI must be on and select the color CH2 till CH6) | ||
| 000-010 | No function | ||
| 011-070 | Program with hopping effect | ||
| 071-130 | Program with fade effect | ||
| 131-190 | Program with pulse effect | ||
| 191-255 | Sound mode ._ |
