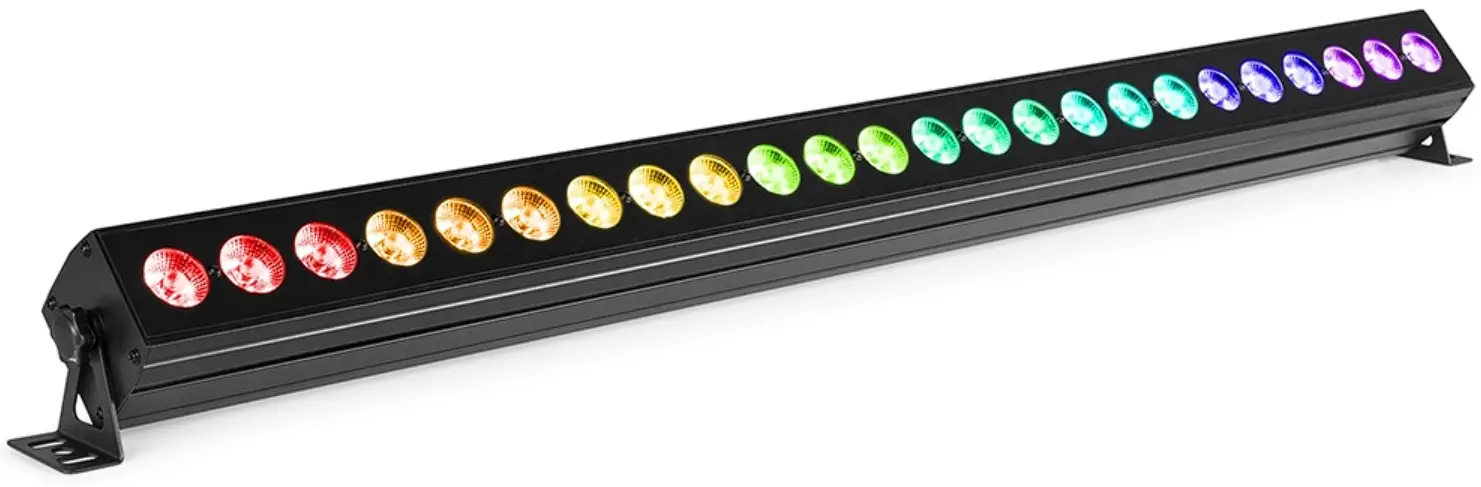

beamZ LCB246 LED Bar
| MENU | DESCRIPTION | |
| ADDR | A001-Axxx | OMX address setting |
| CHND | 8Ch | Select OMX channel work mode |
| 11Ch | ||
| 20Ch | ||
| 38Ch | ||
| 74Ch | ||
| SLND | NASt | Master s lave mode |
| SL1 | ||
| SL2 | ||
| SOUN | So 0 -16 | Select sound program |
| SE 99-0 | Adjus t sound program sensitivity | |
| AUTO | Au 0 -16 | Select automatic program |
| SP 0-9 | Adjust automatic program speed | |
| COLO | Co 1 -15 | Select colour chase |
| NANU | rEd | Manual colour setting |
| GrEE | ||
| bluE | ||
| Uhlt | ||
| ANbE | ||
| Uu | ||
| DISP | □SI P | Display inverse |
| VER | uXX | Software version |
COLOR CHASE TABLE
| VALUE | DESCRIPTION |
| 000-007 | No function |
| 008-022 | Colour chase 1 |
| 023-037 | Colour chase 2 |
| 038-052 | Colour chase 3 |
| 053-067 | Colour chase 4 |
| 068-082 | Colour chase 5 |
| 083-097 | Colour chase 6 |
| 098-112 | Colour chase 7 |
| 113-127 | Colour chase 8 |
| 128-142 | Colour chase 9 |
| 143-157 | Colour chase10 |
| 158- 172 | Colour chase 11 |
| 173-187 | Colour chase 12 |
| 188- 202 | Colour chase 13 |
| 203-217 | Colour chase 14 |
| 218- 232 | Colour chase 15 |
| 233-247 | Colour chase 16 |
| 248-255 | Sound active |
DMX CHANNELS
8 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Colour | 000-255 | Red 0-100% |
| 2 | 000-255 | Green 0-100% | |
| 3 | 000-255 | Blue 0-100°/o | |
| 4 | 000-255 | White 0-100% | |
| 5 | 000-255 | Amber 0-100% | |
| 6 | 000-255 | UV 0-100% | |
| 7 | Colour Macro | 000-255 | See “Colour chase table” |
| 8 | Speed | 000-255 | Chase speed slow to fast |
11 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Dimmer | 000-255 | Dimmer0-100% |
| 2 | Strobe | 000-255 | Strobe, slow to fast |
| 3 | Colour | 000-255 | Red 0-100% |
| 4 | 000-255 | Green 0-100°/o | |
| 5 | 000-255 | Blue 0-100% | |
| 6 | 000-255 | White 0-100% | |
| 7 | 000-255 | Amber 0-100% | |
| 8 | 000-255 | UV 0-100% | |
| 9 | Program | 000-255 | Auto program |
| 10 | Colour Macro | 000-255 | See “Colour chase table” |
| 11 | Speed | 000-255 | Chase speed slow to fast |
20 CHANNELS
| CHANNEL | FUNCTION | VALUE | DESCRIPTION |
| 1 | Section 11 Dimmer | 000-255 | Dimmer 0-100% |
| 2 | Section 11 Strobe | 000-255 | Strobe, slow to fast |
| 3 | Section 11 Colour | 000-255 | Red 0-100°/o |
| 4 | 000-255 | Green 0-100% | |
| 5 | 000-255 | Blue 0-100% | |
| 6 | 000-255 | White 0-100% | |
| 7 | 000-255 | Amber 0-100% | |
| 8 | 000-255 | UV 0-100% | |
| 9 | Section 11 Program | 000-255 | Auto program |
| 10 | Section 2I Dimmer | 000-255 | Dimmer 0-100% |
| 11 | Section 2I Strobe | 000-255 | Strobe, slow to fast |
| 12 | Section 2I Colour | 000-255 | Red 0-100% |
| 13 | 000-255 | Green 0-100% | |
| 14 | 000-255 | Blue 0-100% | |
| 15 | 000-255 | White 0-100% | |
| 16 | 000-255 | Amber 0-100% | |
| 17 | 000-255 | UV 0-100% | |
| 18 | Section 2I Program | 000-255 | Auto program |
| 19 | Colour Macro | 000-255 | See “Colour chase table” |
| 20 | Speed | 000-255 | Chase speed slow to fast |
