LED LIGHT BAR

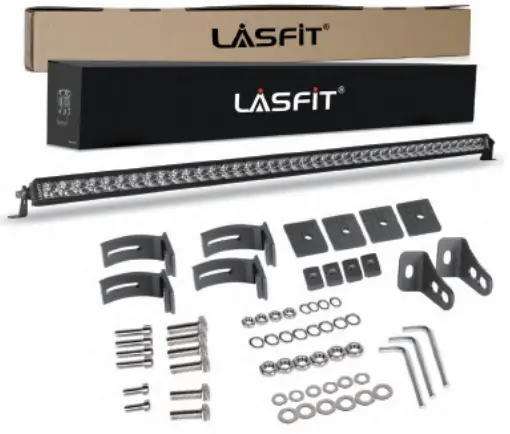

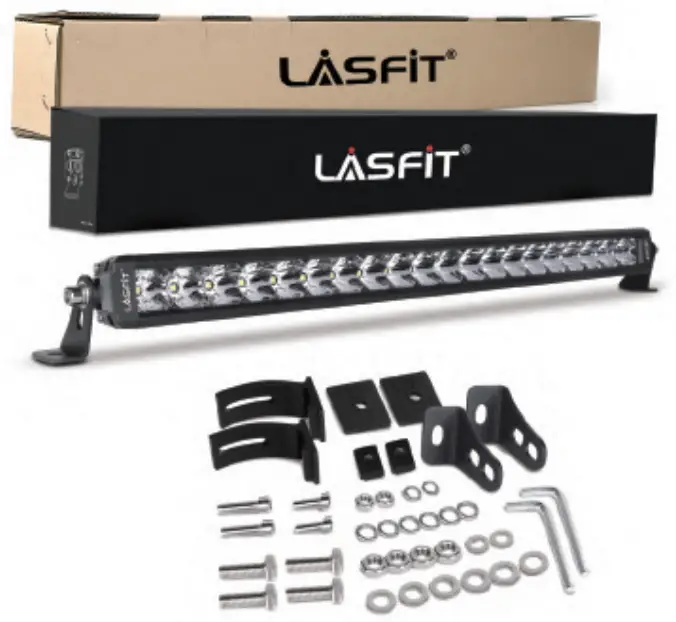

KIT INCLUDES
| Size (inch) 12″ 22″ 32″ | Items | Package |
| • LED Light Bar xl • Side Mount Accessories: M825mm Bolt x2 MS Nut x2 08mm Flat Washers x4 d8mm Spring Washer x4 Side Mounting Bracket x2 M616mm Hex Socket Cap Screws x2 M8 Allen key xl • Bottom Mount Accessories: M825mm Bolt x2 MS Nut x2 d8mm Flat Washers x2 b8mm Spring Washer x2 M622mm Hex Socket Cap Screws x2 M6 Nut x2 d6mm Flat Washers x2 <t>6mm Spring Washer x2 Bottom Mounting Bracket x2 Anti-Vibration Rubber Pad x2 Gel Pads x2 M6 Allen key xl |  |
| Size (inch) 42″ 52″ | Items | Package |
| • LED Light Bar xl • Side Mount Accessories: M825mm Bolt x2 MS Nut x2 08mm Flat Washers x4 d8mm Spring Washer x4 Side Mounting Bracket x2 M616mm Hex Socket Cap Screws x2 MS Allen key xl • Bottom Mount Accessories: M8’25mm Bolt x2 MS Nut x2 08mm Flat Washers x2 d8mm Spring Washer x2 M622mm Hex Socket Cap Screws x2 M6 Nut x2 06mm Flat Washers x2 d6mm Spring Washer x2 Bottom Mounting Bracket x2 Anti-Vibration Rubber Pad x2 Gel Pads x2 M6 Allen key xl |  |
Note: A wiring harness is not included in the package. You can order a wiring harness from Lasfit if needed.”
PRODUCT SPECIFICATION
| Brand: | Lasfit |
| Color: | White, Amber |
| Size(inch): | 12″, 22″, 32″, 42″, 52″ |
| Wattage: | 12″-30W, 22″-60W, 32″-90W, 42″-120W, 52″-150W |
| Raw Output(Lumens): | 12″-5200LM, 22″-10500LM, 32″-15700LM, 42″-20900LM, 52″-26100LM |
| Measured Output(Lumens): | 12″-3220LM, 22″-6020LM, 32″-8560LM, 42″-11290LM, 52″-14230LM |
| Beam Pattern: | Spot and Flood Combo Beam |
| Color Temperature: | 6000K (White), 2000K (Amber) |
| LED Chips: | Osram’s OSCONIQ® P 3737 LED |
| Output Voltage: | 9-36V |
| Waterproof Rating: | IP67 |
| Connector Type: | DT Port |
| Optical Accessories: | Reflective Bowl |
| Warranty: | 3-Year Hassle-Free Warranty+45 Days Money-Back Guarantee |
| Material: | 6063 Aviation Aluminum; Osram Led Chips; PC Lens. |
| Install Positions: | 12″ (Versatile); 22″&32″(Bumper/Grille); 42″&52″(Windshield/Roof). |

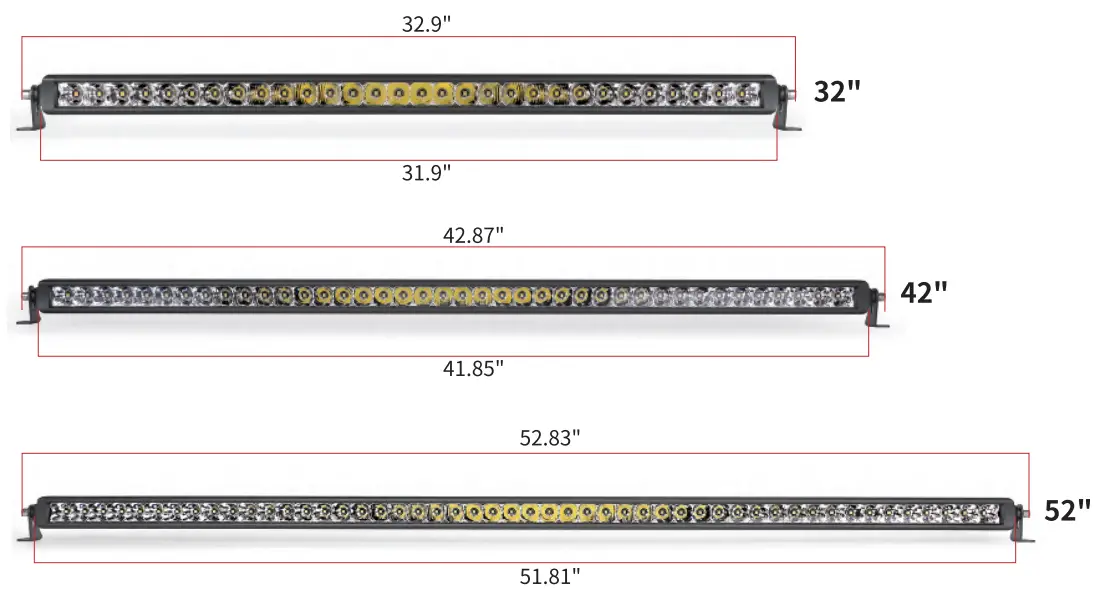

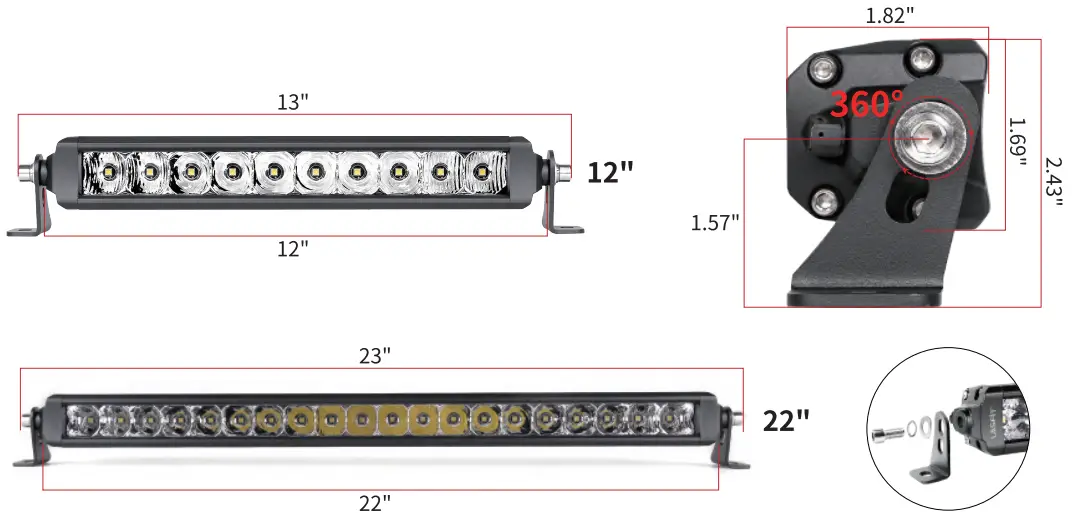

PRODUCT DIMENSIONS
| 12″.22″LED Light Bar Dimension | 32″,42″,52″LED Light Bar Dimension |
 |  |
KEY FEATURES
Superior Brightness Guide You Off The Road
- High luminous efficiency Osram LED chips
- Spot/flood combo beam
- High transmittance PC lens
Beginner-Friendly Installation
- Plug and play DT Port connector
- Adjustable mounting bracket to 360°
- Dual options for side and back mount
Unique Design Built For Off-Road
- Sleek, low-profile, slim, and single-row design
- Durable die-cast aluminum structure
- IP67 waterproof and dustproof
INSTALLATION MANUAL
Step 1. Determine The Mounting Location And Measure The Size.
One way to ensure the best performance of your light bars is to choose the best mounting location for them. Common mounting locations include:
Bumper Mount: front bumper/rear bumper
Grille Mount: upper grille/lower grille
Roof Mount: rooftop/rear roof
Windshield Mount: lower windshield/above the windshield
Note: The perfect mounting options often depend on your specific vehicle, personal preferences, mounting brackets, technical abilities, and most importantly, the accurate measurement results.

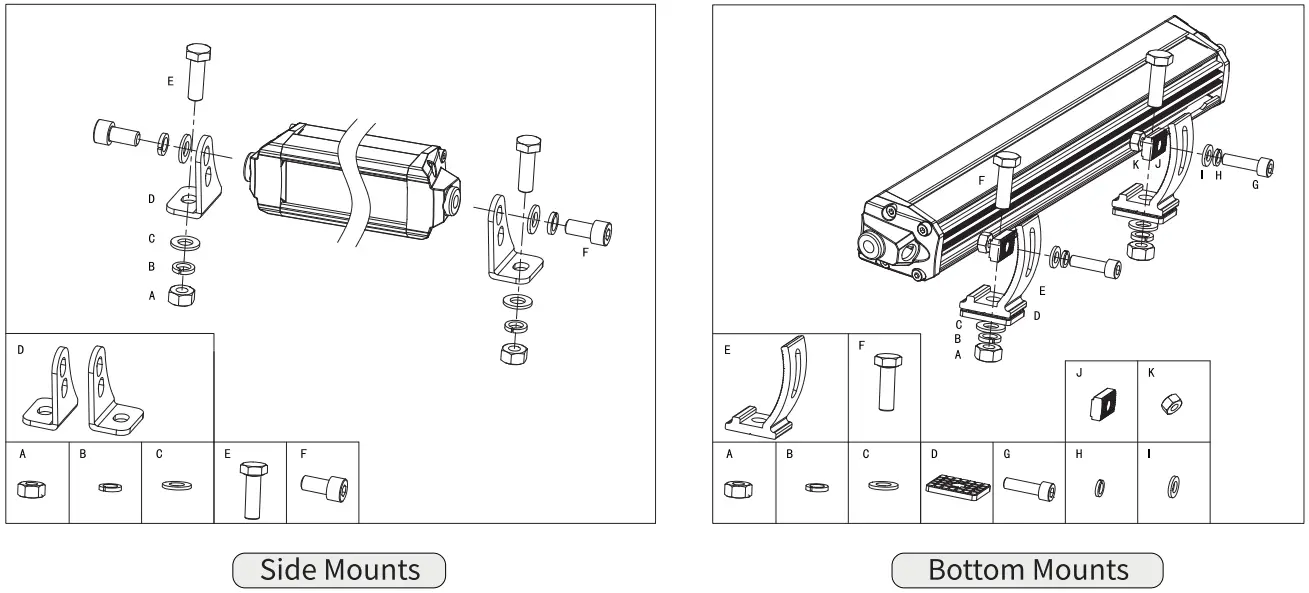

Step 2. Mounting Brackets With The Provided Hardware.
The light bar comes in two different mounting styles, you can choose to install it from the side or from the back.
Note: Our kits come with universal mounts, Custom Modification might be needed to mount them.
We have some Vehicle-specific Brackets for you to choose from, you can check on lasfit.com.

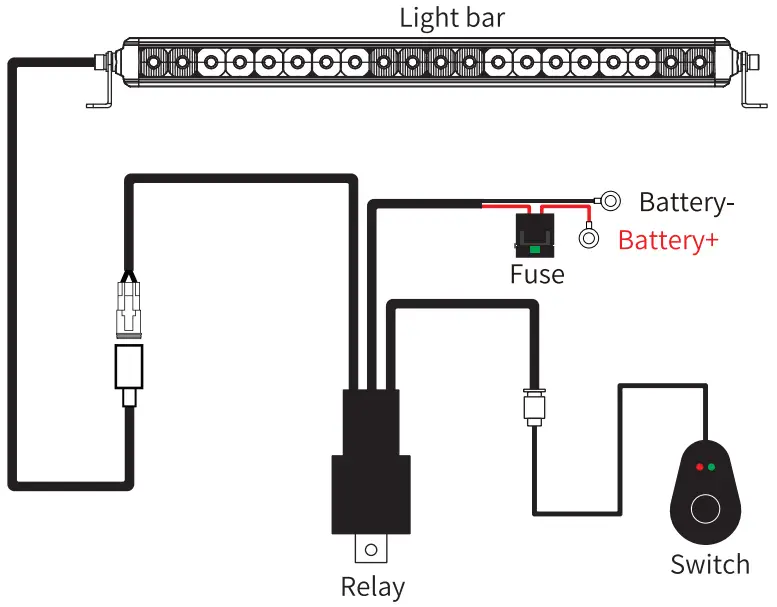

Step 3. Connect The Power Cable And Wiring Harness.
3.1 Connect the light bar plug to the DT-Port connector included with the harness.

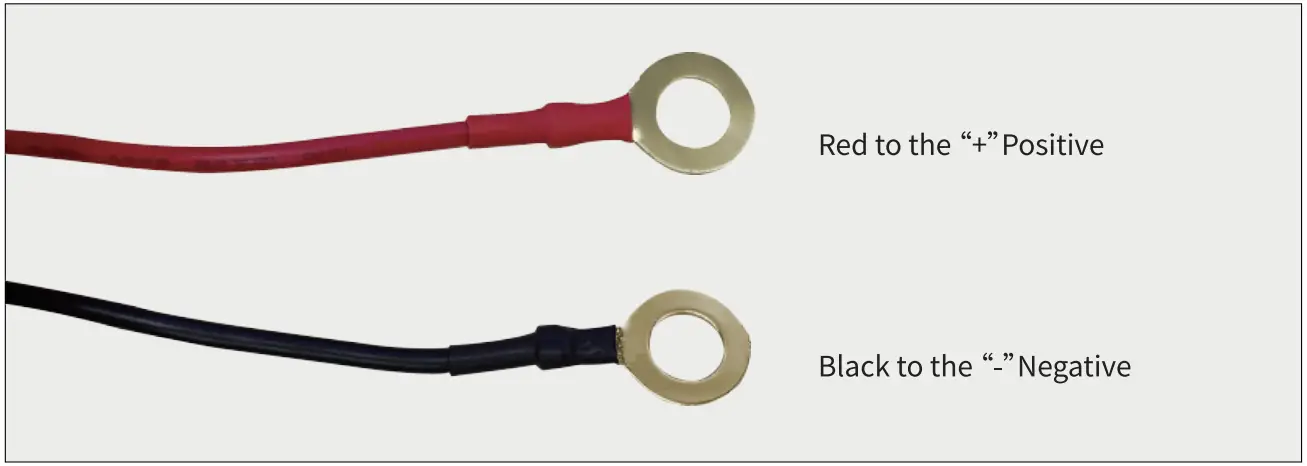

3.2 Connect the red wire to the positive supply and the black wire to the negative or common ground.
3.4 Pass the wiring harness through the firewall and leave part of the switch segment in the vehicle.
3.5 Press the switch to test if the lights are working properly.
3.6 Adjust the light to the desired angle and then secure by tightening all mounting screws.
FAQ
– A: Please follow the below troubleshooting process to find out if it is a quality issue:
– Step 1. Check and make sure positive and negative are properly connected.

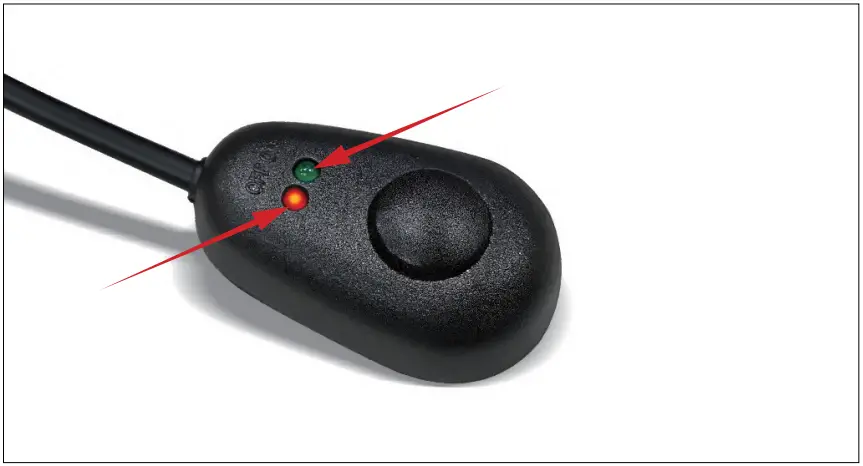

– Step 2. Check and see if the LED light on the switch light up, if no light, check the battery connection and fuse.
– When positive”+·· and negative”-” are connected correctly. The green or red light will be on.
– Step 3. Press the on/off switch you should hear a “click” sound from the relay.
– If you can’t hear a “click” sound, the relay has defected. If you can hear a “click” sound from the relay, use a multimeter to check the DT connector.
– (Make sure the light is green, which indicates it is ON and sending power to the DT plug)
– A: When you drive on continuous rainy days or trail in extremely inclement weather for a long time, the water vapor in the air may condense into moisture to the interior of the lampshade due to the difference in temperature and humidity outside, so this is normal to see the moisture inside. Please follow the below steps to keep moisture out of the light bar:

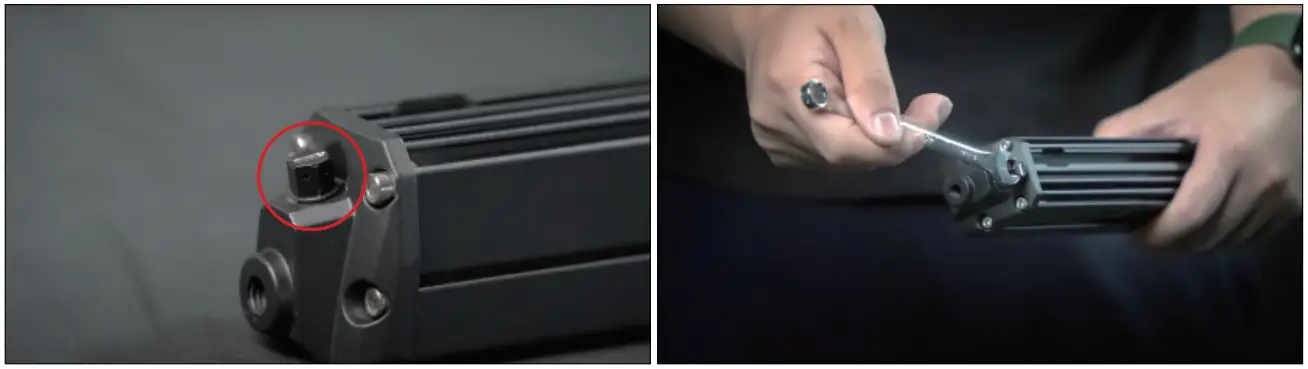

– Step 1: Please remove the breather hole with a5/16 wrench behind the light bar.
– Step 2: Let the light bar stay on for more than 30 minutes and wait for the condensation to disappear.
– Step 3: Then put the exhaust valve screw back before turning off the light bar, that will be fine after finishing.
OUR GUARANTEES
 | 45 Days Money-Back Return/Exchange |
 | 3 Year Hassle Free Warranty |
 | Free Shipping |
 | Customer Support Team in Ontario, California |
Email: [email protected]
Call: (909) 758-7900 Mon. – Fri. 9:00 am-5:30 pm (PST)
Location: 2235 E 4th St Ste F Ontario, CA 91764 United States
