LASFIT 1678180140 LED Rock Light
Accessories
- Rock Light x4

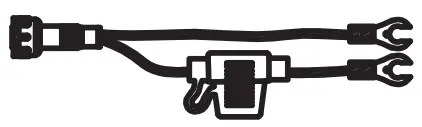

- Fuse x1
- Screw x8
- insulated dust cap x4

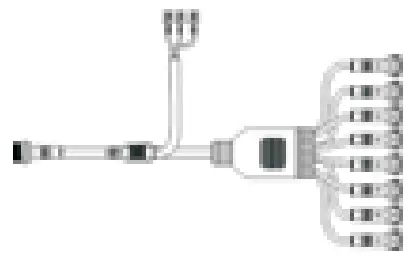

- 1 with 8 pod cable X1
- Rubber Mounting Pad x4
- Switch x1
- Screw Driver x1

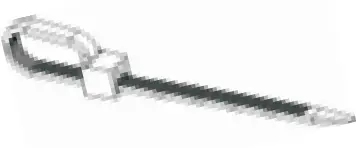

- ZipTies x26
Instruction

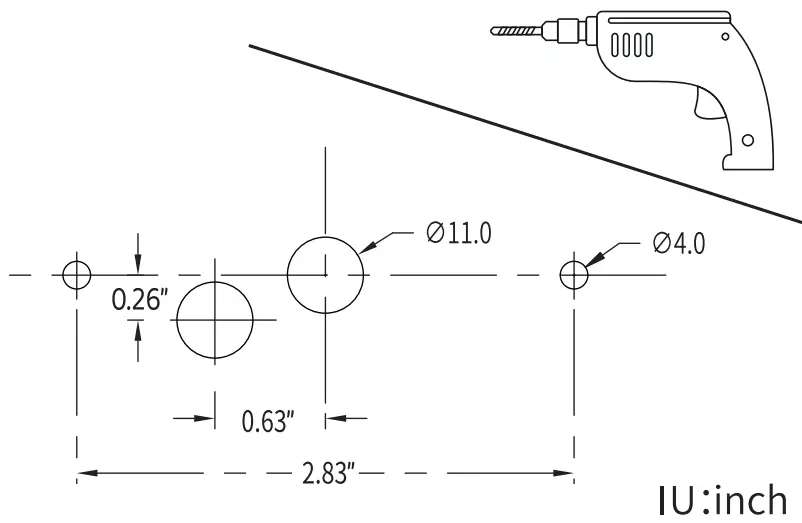

- Drill holes in the mounting position

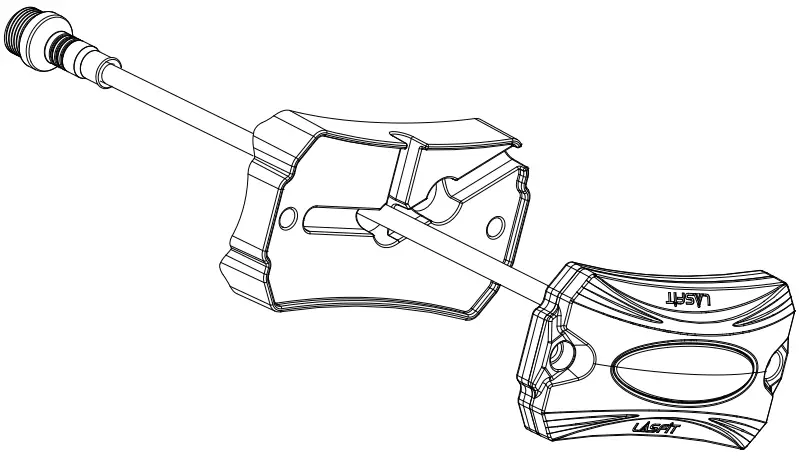

- Route the harness through the rubber mounting pad
- Tighten the screws on both sides

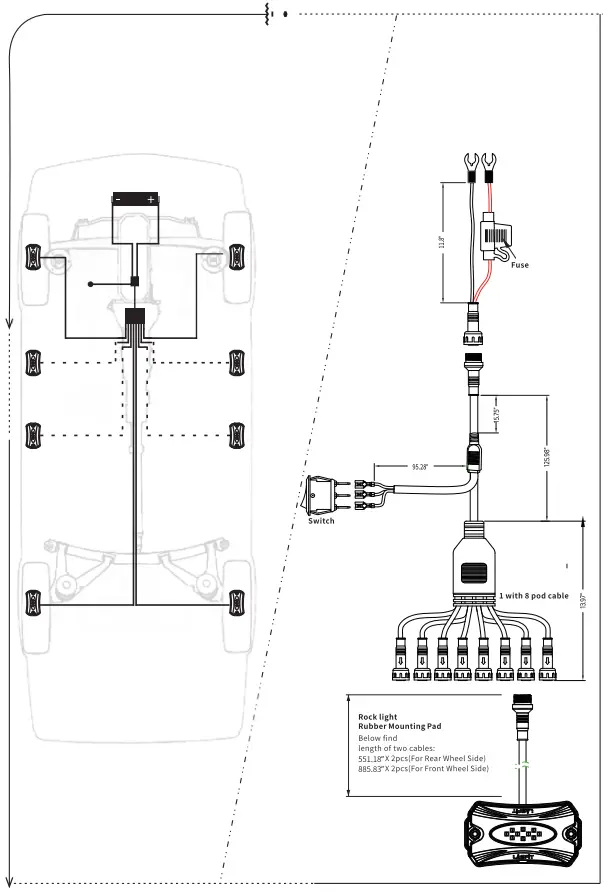

- Wiring diagram

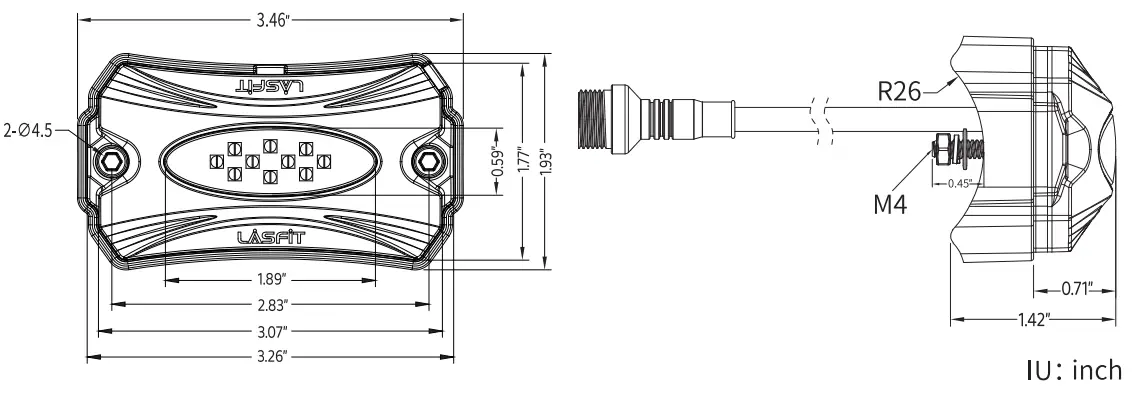

Dimension
Specifications
| Input Voltage: 9-24V | IP Rating: IP68 |
| Weight: 0.48Lbs/Pod | LED Chinps: l0pcs/Pod |
| Input Power: 6W/Pod | Current Draw: 500mA± 10% |
| Material: Die-Cast Aluminum | |
| Operating Temperature: -104° to-185°F | |
| Lumen{Max): 250(White), 190(Yellow) | |
| Color Temperature: 6200K(White), 1900K(Yellow) | |
