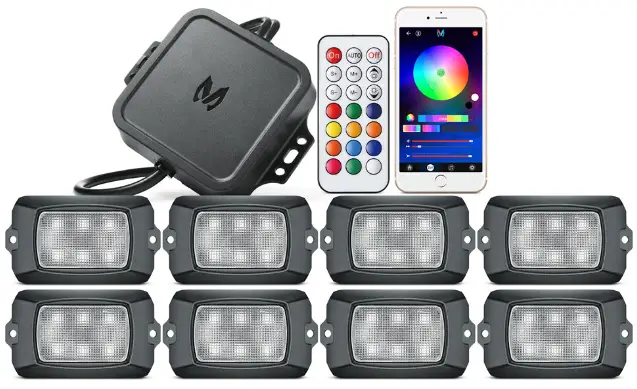

MICTUNING Q1 RGBW LED Rock Lights User Manual
Introduction
Thank you very much for purchasing MICTUNING product.
Mounting All Rights Reserved
Accessories
| Accessories | 4 Pods | 8 Pods | Accessories | 4 Pods | 8 Pods |
 | 4 | 8 | Hat  | 4 | 8 |
 | 1 | Curved | 2 | 4 | |
 | 1 |  | 1 | 1 | |
 | 1 | 1 |  | 8 | 16 |

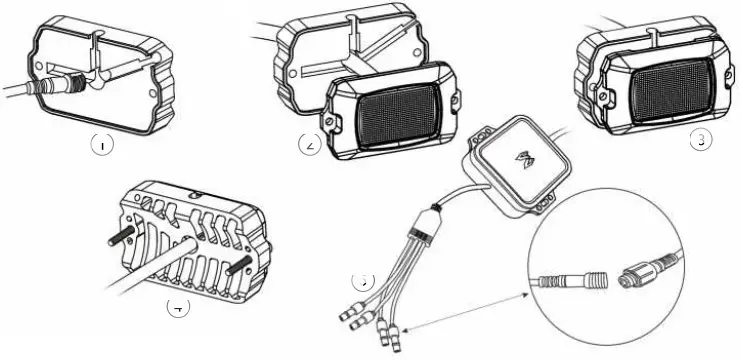

Installation Steps

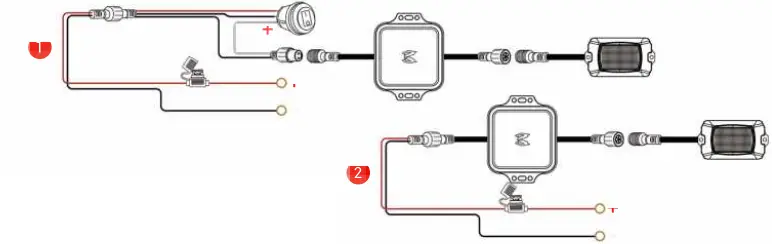

Wiring Diagram
Kindly Remember: Keep the control box away from the engine.

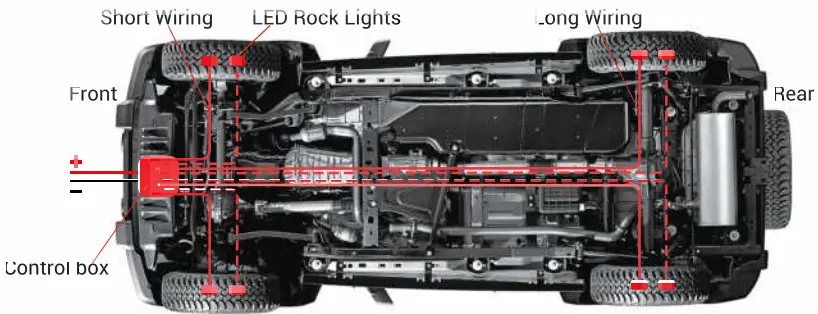

Installation Diagram
Short wiring and long wiring divided, be more environmentally friendly and save resources.
Technology Parameter
- Input Voltage: DC9-32V
- Total Brightness Level: 8 grade
- Operating Temperature: -20 °C — 50 °C
- Output Power: 5A(max)
- Control Mode: Mobile phone
- IP Grade: IP68
- Gray Scale: 256*256*256
