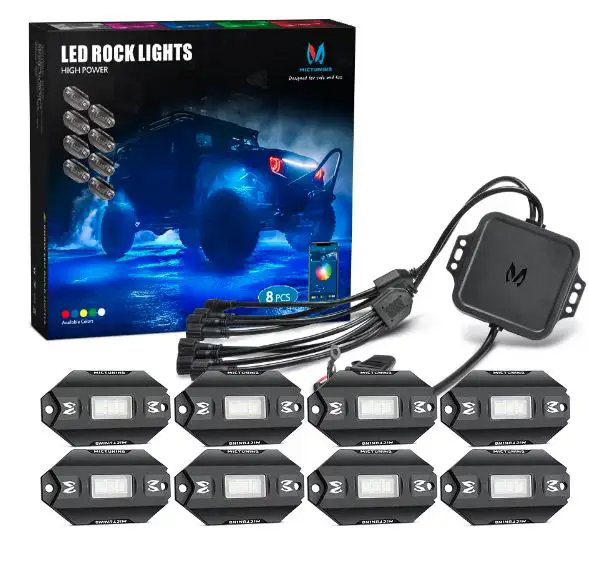

MICTUNING MIC-LRL-438 C2 RGBW LED Rock Light

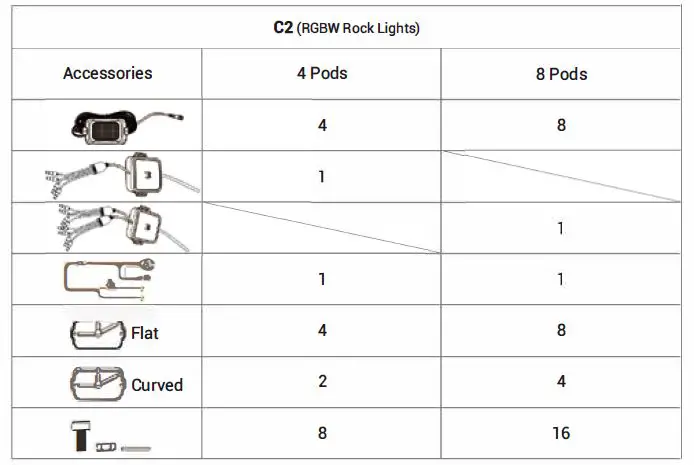

C2 (RGBW Rock Lights)

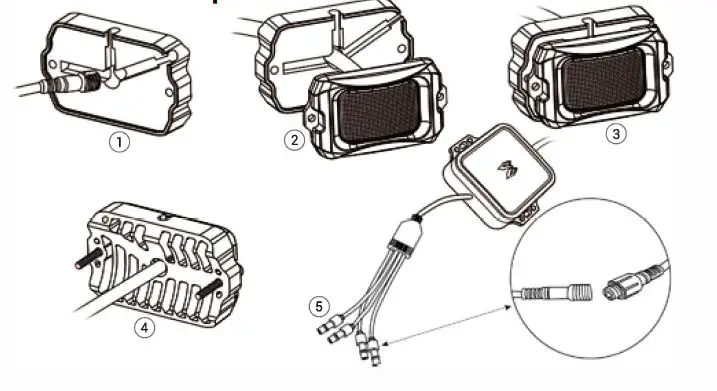

C2 Installation Steps

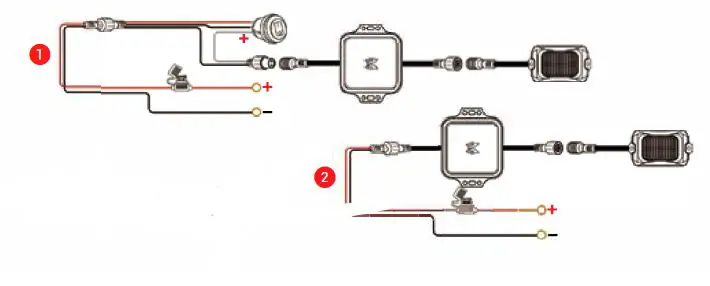

C2 Wiring Diagram
Kindly Reminder: keep the control box away from the engine.

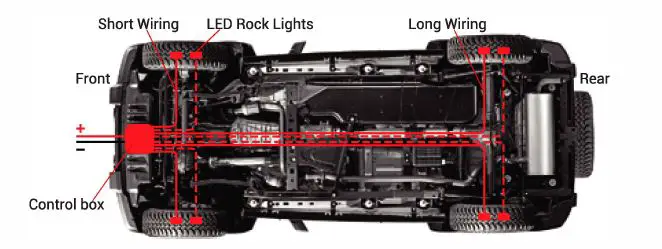

Installation Diagram
Short wiring and long wiring divided, be more environmentally friendly and save resources.
Technology Parameter
- Input Voltage: DC9-32V
- Output Power : 5A(max)
- Control Mode: Mobile phone
- Gray Scale: 256*256*256
- Total Brightness Level: 8 grade
- Operating Temperature: -20 •c – 50 •c
- IP Grade: IP68
Thank you very much for purchasing the MICTUNING product. MICTUNING® All Rights Reserved
