HEISE LED HECHASE4KT Chasing LED Rock Light
Contents

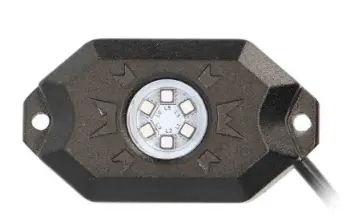

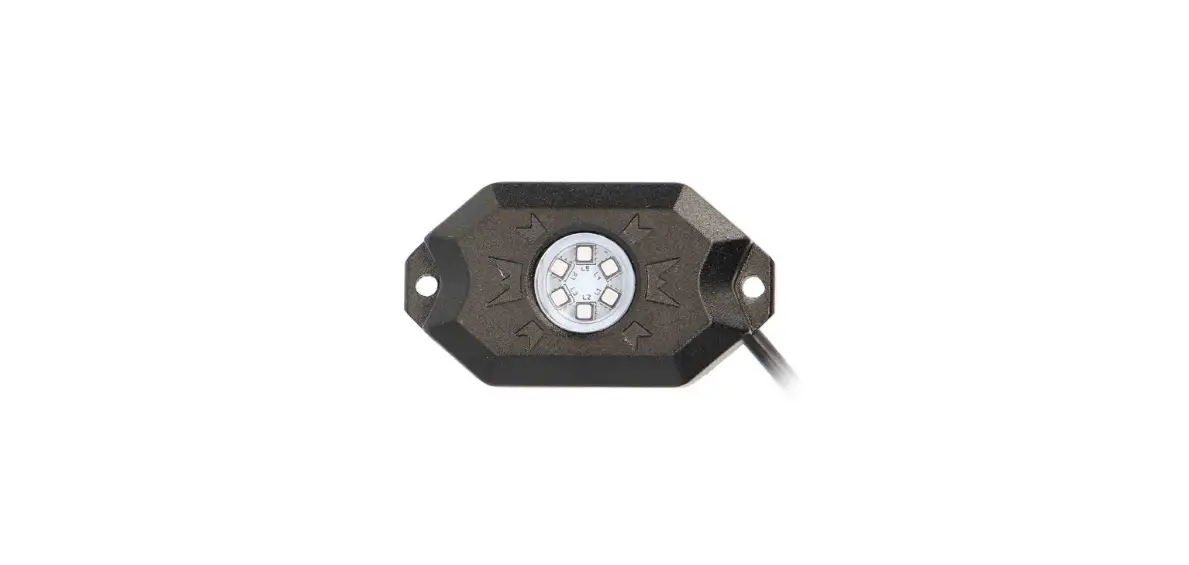

- LED rock light
- Rubber mounting
- PRO RGB controller
- RF remote
HE-CHASE-4KT
HE-CHASE-8KT
Mounting
- Back of mounting pod has 3 cable routing options
- Curved mounting pod for installation on the tubular frame
- Flat mounting pod
Installation Instructions
Review the vehicle and locate suitable places to mount the LED rock lights. Avoid locations that are hot, move, pinch points, the gas tank, and gas lines.

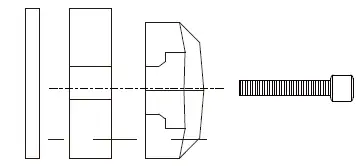

- Each rock light will have mounting hardware options for both flat and curved surfaces
- Using the appropriate mounting base, mount the rock light to a safe and secure location.

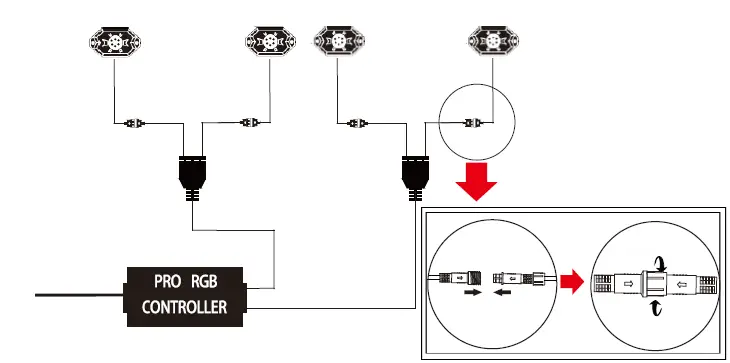

- Route the cable from the rock light back to the pro controller, avoiding the locations previously mentioned. Secure the cable every 12 inches or as necessary.
- The controller has a left and a right channel. Connect the rock light cable to the appropriate channel.
- Repeat the process for the remaining rock lights
- Mount the pro controller, then make the following connections: Red: Switched +12v (use an in-line 10A fuse to protect the circuit)
Black: Chassis Ground
Green: Driver turn signal (+12v)
Yellow: Passenger turn signal (+12v)
White: Brake wire (+12v) - Download app. Test functionality with remote and app. Test turn signals and brake functions.
