THOR-35
Installation Manual
Thor-35 LED Track Light
| Variants | Item No. | Lamp Base | |
| Balk | What | ||
| 22418 | 22422 | THOR-35-3-36D | LED Track light, 36° beam angle. 3000K warm white. |
| 22419 | 22423 | THOR-35-3-36D | LED Track light, 36° beam angle. 4000K neutral white. |
Thank you for purchasing your new LED THOR-35, Please take the time to read and understand the instruction sheet below. Failure to do so may void warranty.
Specifications
| Voltage: | 240V AC | Lumen (±5%): | Warm White 3000K – 2950lm Neutral White 4000K – 2990lm | Dimmable: | Yes* |
| Power: | 35W | Beam Angle: | 36° | Operating Temp: | -20°C~50°C |
| IP Rating: | IP20 | CCT: | 3000K – 4000K | Lifespan: | 50,000hrs |
| CRI: | ≥90 | ||||
| *Fully dimmable with suitable dimmers | |||||

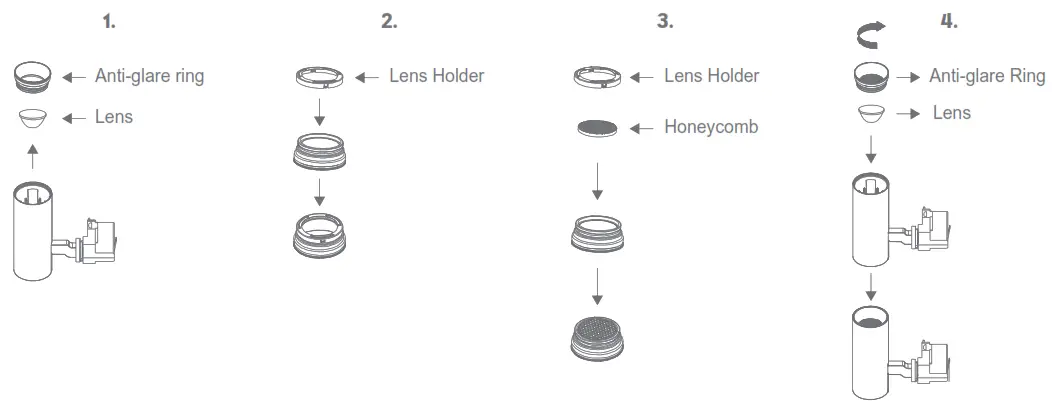

 | Honeycomb Installation 1. Unscrew the baffle anticlockwise, and remove from fitting. 2. Take out the lens holder. 3. Place the honeycomb reflector into the baffle followed by the lens holder. 4. Screw baffle back into fitting in a clockwise direction. |
Note:
- The lamp must be installed by professional electrician
- Ensure the power supply is switched off before fitting this product
- Do not touch the lamp when in use
- Keep away from hot steam and corrosive gas
29-31 Richland St. Kings grove. Sydney NSW 2208 Australia
Phone: 02 9554 9600
Fax: 02 9554 9433
[email protected]
www.domuslighting.com.au
