FAGERHULT 51743-504 LED Track Light

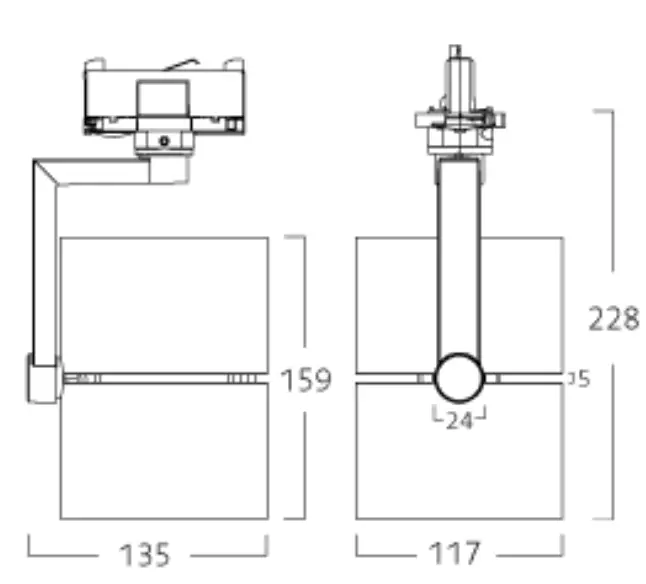

Dimensions

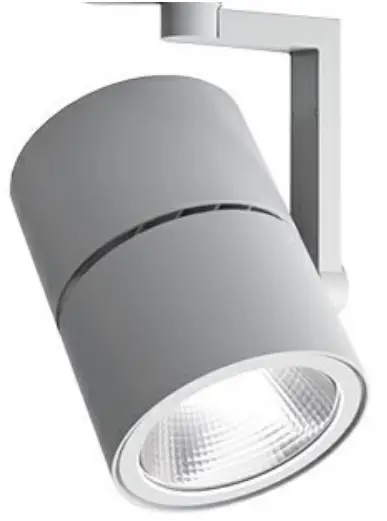

Touch Midi
Touch is a stylish and timeless luminaire that will fit smoothly into any retail environment. The integrated driver gives clean feeling and the shop ceiling will not be cluttered with drivers aimed in different directions.
Installation Track mounted 3-phase track, Control track or track.
Design Hour sin g in pow der coated aluminum, white (RAL 9016) or black (RAL 9017). In targeted driver.
Dimming DALI/phase pulse control
Miscellaneous 930 LED is Below Black Body Locus (B B B L), other color temperate re on Black Body Locus.
DESIGN | |
| Colour | Grey |
| Weight, kg | 1.3 |
| RAL | 7038 |
TECHNICAL DATA | |
| Installation | Control Track |
| IP rating | 20 |
| Protective class | 1 |
| Light control | DALI/Phase-pulse |
ELECTRICAL DATA | |
| Rated supply voltage, V | 230 |
| Effect, W | 31 |
LIGHTING DATA | |
| Light distribution | Wide Beam |
| lm/W | 102 |
| LED driver, h/max failure % | 50 000 /10 |
| CRI | 90 |
| Light source | LED |
| Lumen output | 3158 |
| Lumen maintenance L90 B50, h | 100 000 |
| SDCM | 3 |
| CCT, K | 3000 |
| Beam angle, | ° 40° |
