65654CTT Track Spotlight LED

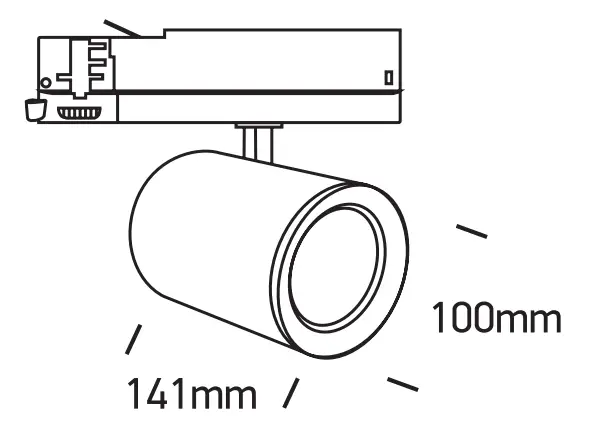

Instruction Manual40W | 230V | 50/60Hz | IP20 | Adjustable | Aluminium Complete with 1000mA driver.

65654CTT Track Spotlight LED

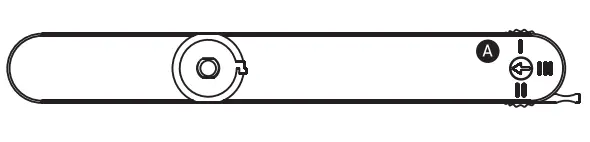

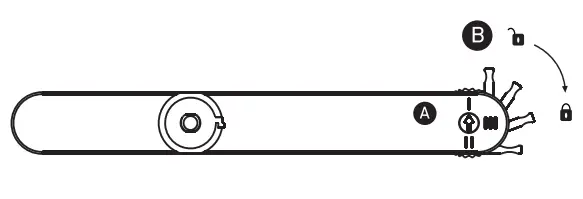

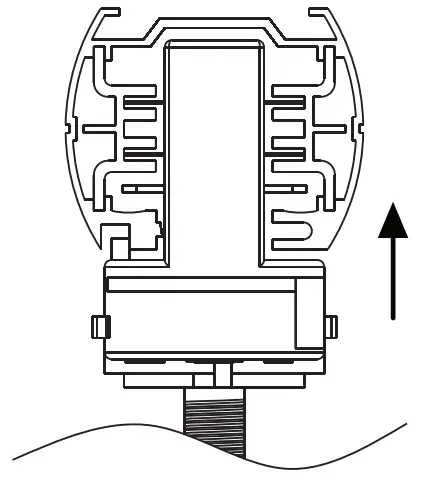

1. To mount the track adaptor into the track system, first check that the selector knob A is at OFF position and the adaptor lock B is disengaged.
2. When installing the adaptor into the track, ensure that it is orientated correctly.

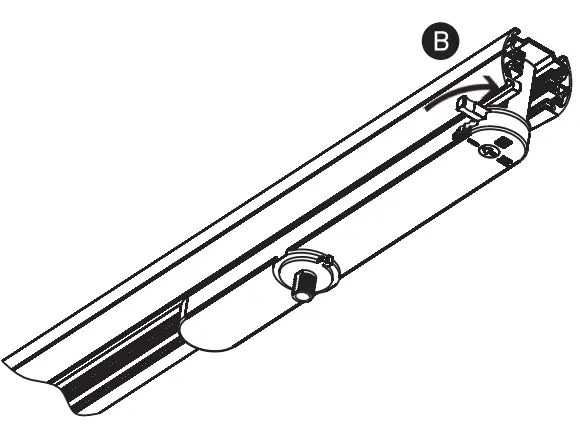

3. Rotate adaptor lock B clockwise 90° to connect the adaptor to the neutral circuit.

4. Rotate selector knob A to the position of desired circuit.

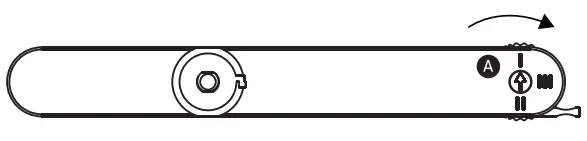

   4A. Circuit 1: Rotate the knob A 90° clockwise from the starting position OFF, to connect circuit 1.

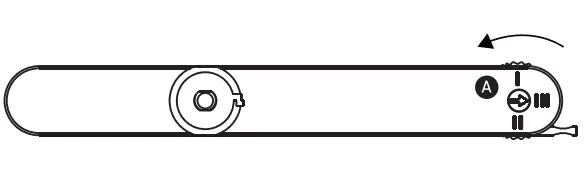

   4B. Circuit 2: Rotate the knob A 90° anti-clockwise from the starting position OFF, to connect circuit 2.

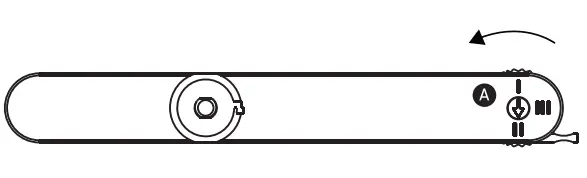

   4C. Circuit 3: Rotate the knob A 180° clockwise from the starting position OFF, to connect circuit 3.

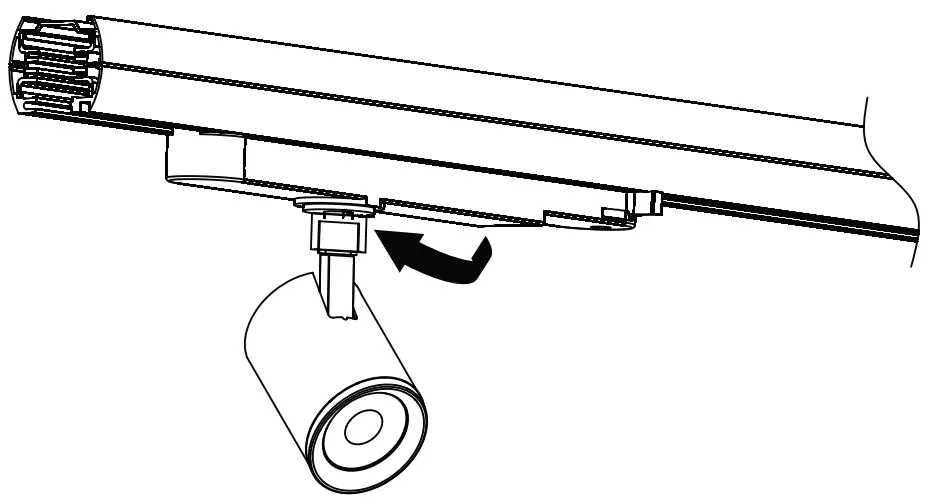

5.

Warnings:

1. Make sure that the product is installed properly before connecting to electricity.
2. Do not cover the fitting.
3. Maintenance and installation should only be carried out by a professional electrician.
