5GHUB EG91 LTE CAT 1 Module SMT WorldWide User Manual
5GHUB EG91 LTE CAT 1 Module SMT WorldWide

Purpose of the Document

The purpose of this document is to explain the technical specifications and manual for using the miniPCIe EG91 LTE Cat 1 module.

Document History

VersionAuthorDateDescription
A5G HUB10.01.2022Initial Document





Package Content

LTE Cat 1 miniPCIe Package:

  • EG91-NA miniPCIe card.

Download

Download and Install LTE&GNSS modem driver for Windows OS: https://github.com/5ghub/5G-NB-IoT/tree/master/Driver

Download and Install QNavigator and QCOM tools for Quectel EG91 here: https://github.com/5ghub/5G-NB-IoT/tree/master/Tools

Arduino software can be downloaded from the following website:
5G-NB-IoT/KitSketches at master · 5ghub/5G-NB-IoT (github.com)

To use the board with Arduino IDE and starts running Arduino projects and sketches, install the following software:

Install Arduino IDE for Windows from the following web site https://www.arduino.cc/en/Main/Software

Download and install Arduino library (5G-NB-IoT_Arduino.zip) here: https://github.com/5ghub/5G-NB-IoT

All the following software can be installed from the GitHub location here: https://github.com/5ghub/5G-NB-IoT

LTE cellular connectivity on Windows OS for BG95

General Description

Overview

EG91 miniPCIe is a series of LTE category 1 module adopting standard PCI Express Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications and delivers 10Mbps downlink and 5Mbps uplink data rates.

EG91 miniPCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces, and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M applications such asindustrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.

Key Features

  • LTE category 1 module optimized for broadband IoT applications
  • Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage
  • Standard PCI Express® MiniCard form factor (miniPCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
  • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
  • Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
  • LTE FDD: B2/B4/B5/B12/B13
  • WCDMA: B2/B4/B5

Data Rate

  • LTE
    LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
  • UMTS:
    DC-HSDPA: Max 42Mbps (DL)
    HSUPA: Max 5.76Mbps (UL)
  • WCDMA:
    Max 384Kbps (DL)/Max 384Kbps (UL)
  • GSM:
    EDGE: Max 296Kbps (DL)/Max 236.8Kbps (UL)
    GPRS: Max 107Kbps (DL)/Max 85.6Kbps (UL)

Interfaces

  • USB 2.0 with High Speed up to 480Mbps
  • Digital Audio through PCM
  • 1.8V/3.0V (U)SIM Interface
  • LED_WWAN# for Network Status Indication
  • W_DISABLE# for Disabling RF Function
  • UART × 1
  • PERST# for Module Resetting
  • Solder Pads for Main Antenna, Rx-diversity and
  • GNSS Antennas

Software Features

  • USB Serial Driver:
    Windows 7/8/8.1/10, Linux 2.6/3.x/4.1~4.15,
    Android 4.x/5.x/6.x/7.x/8.x/9.x
  • RIL Driver:
    Android 4.x/5.x/6.x/7.x/8.x/9.x
  • NIDS Driver:
    Windows 7/8/8.1/10
  • ECM Driver*③:
    Linux 2.6/3.x/4.1~4.15
  • Gobinet Driver:
    Linux 2.6/3.x/4.1~4.15
  • Linux qmi wwan Driver:
    3.x (3.4 or later)/4.1~4.15

Protocols

  • TCP/UDP/PPP/FTP/FTPS/HTTP/HTTPS/NTP/PING/QMI/NITZ MMS/SMTP/SSL/MQTT/FILE/CMUX */SMTPS*

General Features

  • Temperature Range: -40°C ~ +80°C
  • Dimensions: 30.0mm x 51.0mm x 3.5mm
  • Weight: Approx. 9.8g
  • Mini PCIe Package
  • Supply Voltage: 3.0V~3.6V, 3.3V Typ.
  • 3GPP E-UTRA Release 12
  • Bandwidth: 1.4/3/5/10/15/20MHz
  • 3GPP TS 27.007

Approvals

  • Carrier:
    Vodafone (Global)
    Deutsche Telekom/Telefónica (Europe)
    Verizon/AT&T/T-Mobile/U.S. Cellular (North America)
    Rogers/Bell*/Telus* (Canada)
    SKT/KT*/LGU+* (South Korea)
    NTT DOCOMO/SoftBank/KDDI (Japan)
  • Regulatory:
    GCF (Global)
    CE (Europe)
    FCC/PTCRB (North America)
    IC (Canada)
    Anatel (Brazil)
    KC (South Korea)
    NCC (Taiwan)
    JATE/TELEC (Japan)
    RCM (Australia/New Zealand)
    FAC (Russia)
    NBTC (Thailand)
    ICASA (South Africa)
  • Others:
    RoHS Compliant
    WHQL

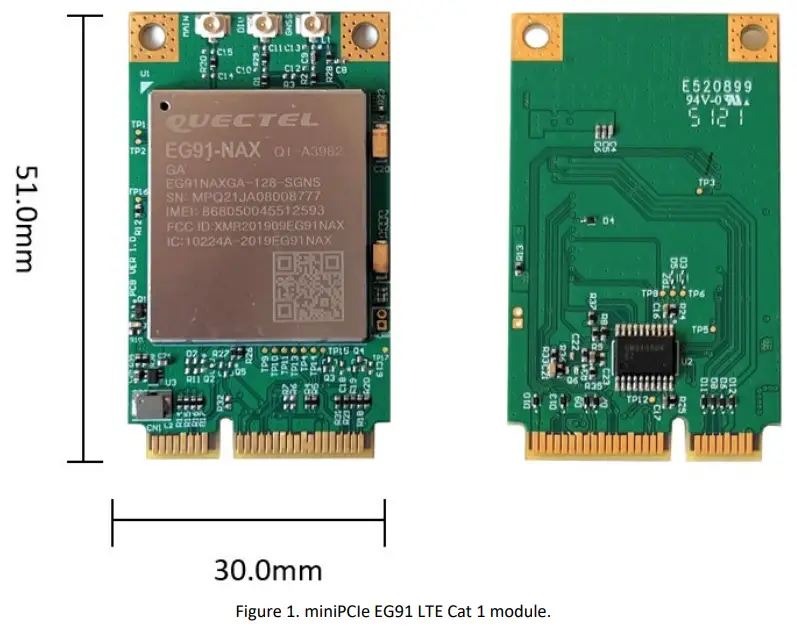

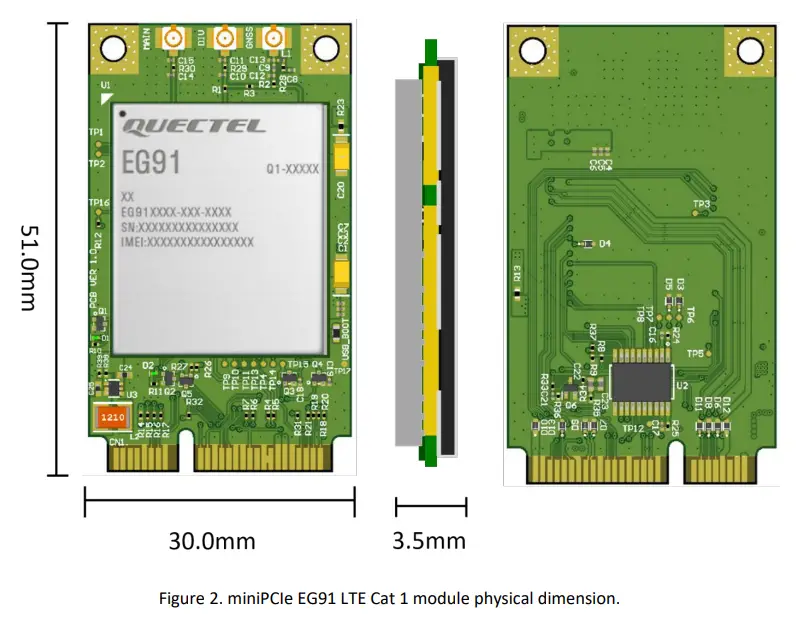

Overview Diagrams

Overview Diagrams
Overview Diagrams

Functional Diagram

The following figure shows the block diagram of EG91 Mini PCIe
Functional Diagram

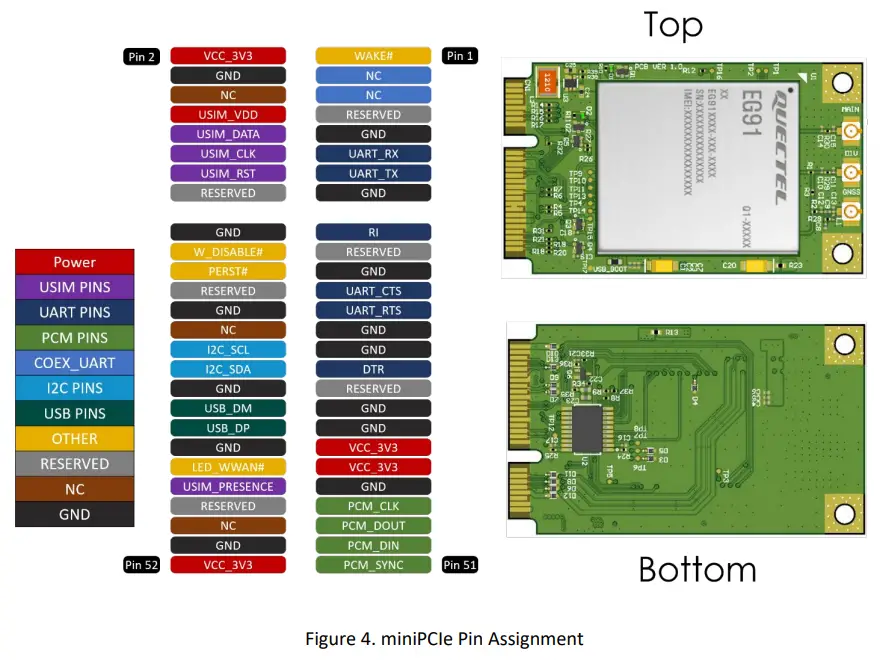

miniPCIe PIN Diagram and Assignment

The physical connections and signal levels of EG91 miniPCIe comply with PCI Express Mini Card Electromechanical Specification.

  • Power supply
  • (U)SIM interface
  • USB interface
  • UART interfaces
  • PCM and I2C interfaces
  • Control and indication pins
    miniPCIe PIN Diagram and Assignment

Pin Description

Pin #Pin NamePin DirectionPin Functionality
1NC
2VCC_3V3I3.0V~3.6V, typically 3.3V DC supply
3NC
4GND Mini card ground
5NC
6NC Not connected
7RESERVED Reserved
8USIM_VDDOPower supply for the (U)SIM card
9GND
10USIM_DATAIData signal of (U)SIM card
11UART_RXIUART receive data
12USIM_CLKOClock signal of (U)SIM card
13UART_TXOUART transmit data
14USIM_RSTOReset signal of (U)SIM card
15GND
16RESERVED
17RIORing indication
18GND
19RESERVED
20W_DISABLE#IAirplane mode control
21GND
22PERST#IFundamental reset signal
23UART_CTSIUART clear to send
24RESERVED
25UART_RTSOUART request to send
26GND
27GND
28NC
29GND
30I2C_SCLODI2C serial clock
31DTRDISleep mode control
32I2C_SDAODOD I2C serial data
33RESERVED
34GND
35GND
36USB_DMIOUSB differential data (-)
37GND
38USB_DPIOUSB differential data (+)
39VCC_3V3I3.0V~3.6V, typically 3.3V DC supply
40GND
41VCC_3V3I3.0V~3.6V, typically 3.3V DC supply
42LED_WWAN#OCLED signal for indicating the network status of the module
43GND
44NC (U)SIM card insertion detection
45PCM_CLKIOPCM clock signal
46RESERVED
47PCM_DOUTOPCM data output
48NC
49PCM_DINIPCM data input
50GND
51PCM_SYNCIOPCM frame synchronization
52VCC_3V3PI3.0V~3.6V, typically 3.3V DC supply

Power Saving

Sleep Mode
EG91 Mini PCIe can reduce its current consumption to a minimum value in sleep mode. There are three preconditions must be met to make the module enter sleep mode.

  • Execute AT+QSCLK=1 to enable sleep mode
  • Ensure the DTR is kept at high level or be kept open
  • The host’s USB bus, which is connected with the module’s USB interface, enters suspendstate

Airplane Mode

When the module enters airplane mode, the RF function will be disabled, and all AT commands related to it will be inaccessible.
