5GHUB NB-IOT & GNSS Starter Kit User Manual
Purpose of the Document
The purpose of this document is to explain the technical specifications and manual for using the starter kit with NB-IoT & GNSS hardware board.
Document History
Version | Author | Date | Description |
A | 5G HUB | 04.28.2020 | Initial Document |
| A | 5G HUB | 02.27.2021 | Minor update and add downloadable software |
Package Contents
- SoftwareArduino software can be downloaded from the following website:
https://github.com/5ghub/5G-NB-IoT/tree/master/KitSketches- To use the board with Arduino IDE and starts running Arduino projects and sketches, install the following software:
Install Arduino IDE for Windows from the following website:
https://www.arduino.cc/en/Main/Software - Download and Install LTE&GNSS modem driver for Windows OS:
https://github.com/5ghub/5G-NB-IoT/tree/master/Driver - Download and Install QNavigator &QCOM tools for Quectel BG96 here:
https://github.com/5ghub/5G-NB-IoT/tree/master/Tools - Download and install Arduino library (5G-NB-IoT_Arduino.zip) here: https://github.com/5ghub/5G-NB-IoT
All the following software can be installed from the GitHub location here: https://github.com/5ghub/5G-NB-IoT
LTE cellular connectivity on Windows OS YouTube tutorials: 5G NB-IoT Kit YouTube
- To use the board with Arduino IDE and starts running Arduino projects and sketches, install the following software:
Hardware
Item # | Name | Quantity |
1 | 5G NB-IoT Hardware Board | 1 |
| 2 | LTE & GPS Antenna | 1 |
3 | 4*4 Matrix Keypad | 1 |
| 4 | 5V Relay | 1 |
| 5 | Step Motor | 1 |
6 | Temperature Sensor LM35 | 1 |
7 | Motor | 1 |
| 8 | IR Receiver | 1 |
| 9 | Vibration Sensor SW-520D | 2 |
10 | Jumper Cap | 4 |
11 | Key Switch(yellow) | 5 |
| 12 | DHT11 Module | 1 |
13 | Clock Module | 1 |
14 | Big Sound Module | 1 |
| 15 | Water Module | 1 |
16 | Photocell | 3 |
17 | Active Buzzer | 1 |
| 18 | SN74HC595 | 1 |
19 | 3-color LED | 1 |
| 20 | 7 Segment | 1 |
21 | 4-7 Segment | 1 |
22 | Passive Buzzer | 1 |
| 23 | B10K Variable | 1 |
24 | Flame | 1 |
| 25 | SG90 Servo | 1 |
26 | 1602 Display | 1 |
| 27 | 8*8 Matrix | 1 |
28 | 830 Breadboard | 1 |
| 29 | Joystick | 1 |
30 | RFID Module | 1 |
| 31 | Remote Control | 1 |
32 | Blue LED | 10 |
| 33 | Red LED | 10 |
34 | Green LED | 10 |
| 35 | 330R Resistance | 10 |
36 | 220R Resistance | 10 |
| 37 | 10K Resistance | 10 |
38 | 1K Resistance | 10 |
| 39 | Jumper Wire | 1 |
40 | F-M Dupont Wire | 1 |
| 41 | 2.54mm 40Pin | 1 |
General Description
Overview
The is a full starter kit used with NB-IoT & GNSS hardware board. The kit includes sensors, actuators, motors, keypad, LCD and display, and motors. The Kit enables you to perform many electronics projects using Arduino. The kit includes more than 30 Arduino sketches & projects ready for running on the NBIoT &GNSS hardware board. This kit can be used as Do-It-Yourself (DIY).
Key Features
- NB-IoT & GNSS Hardware board
- More than 40 hardware components for building different Arduino projects.
- Ready-made Arduino sketches to exercise the Arduino projects.
- Kit are packages in small firm package of size 240 x 160 x 60 mm
Overview Diagrams

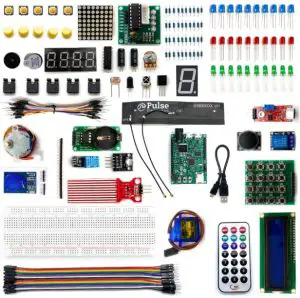

Figure 1. Kit Hardware Components

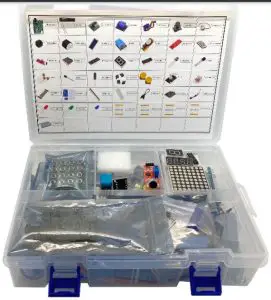

Figure 2. Firm Package for the Kit

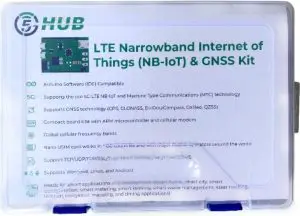

Figure 3. Package Top View
References
- Arduino IDE, https://www.arduino.cc/en/Main/Software
- Arduino IDE, https://www.arduino.cc/en/Guide/ArduinoZero
- Microchip, “Low-Power, 32-bit Cortex-M0+ MCU with Advanced Analog and PWM”
