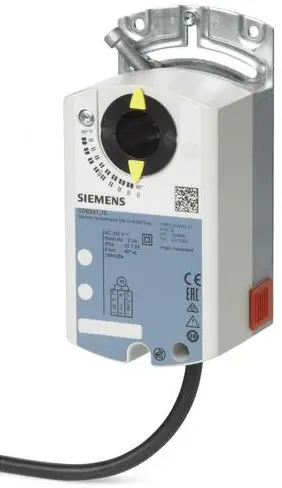

SIEMENS A5W00027551 Acvatix Actuators Instruction Manual

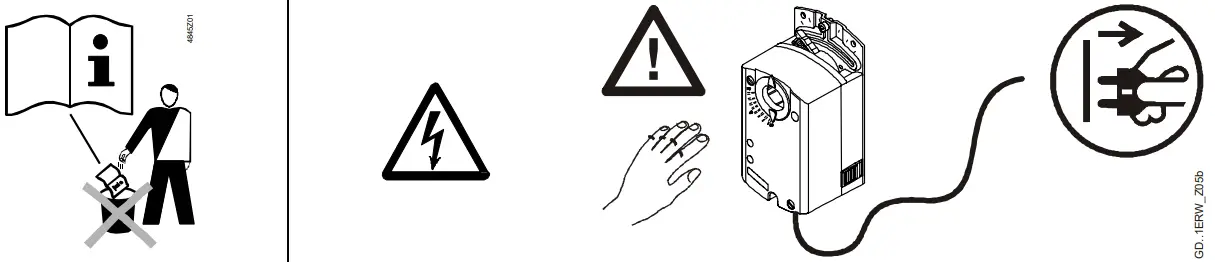

Safety Instruction
Notes / Warnings

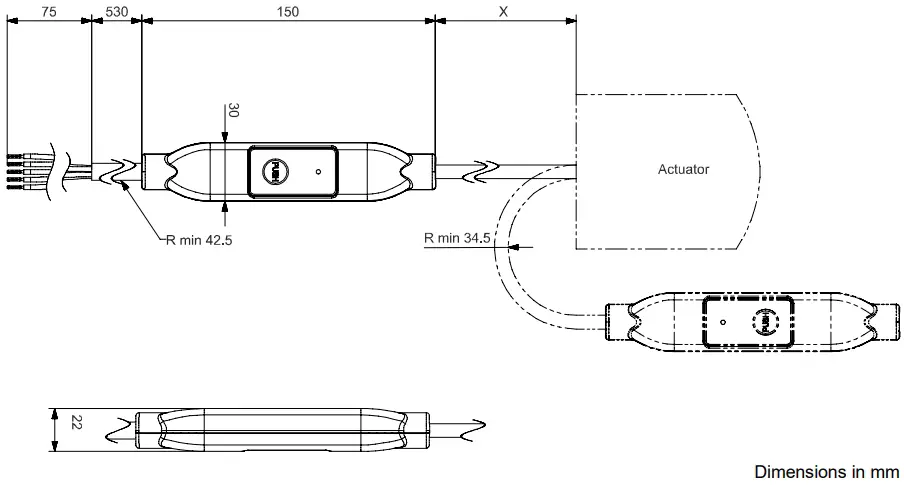

Dimensions
| For G..161../MO | X = | 220 |
| For S..6../MO | X = | 250 |

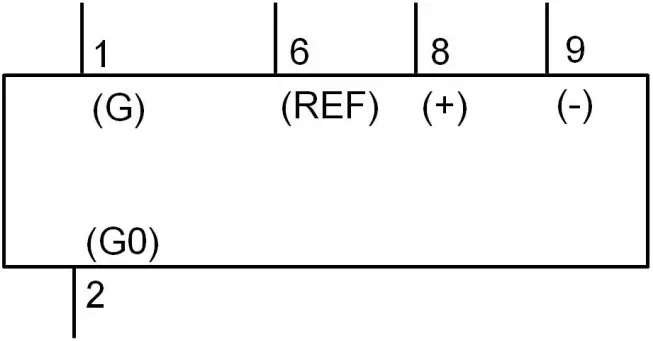

Wiring diagrams
AC 24 V / DC 24 V
Modulating control Modbus RTU
| G..A161.9E/MO | AC 24 V / DC 24 V |
| G..B161.9E/MO | AC 24 V / DC 24 V |
| SA..61../MO | AC 24 V / DC 24 V |
| SK..62/MO | AC 24 V |
| Code | No. |
| G | 1 |
| G0 | 2 |
| REF | 6 |
| + | 8 |
| – | 9 |
| Wire designations | |
| Cable Color Abbr. | Meaning |
| red RD | System potential AC 24 V ~ / DC 24 V ⎓ *) |
| black BK | System neutral |
| purple VT | Reference (Modbus RTU) |
| grey GY | Bus (Modbus RTU) |
| pink PK | Bus (Modbus RTU) |
(*) DC 24 V available with G..A161.9E/MO, G..B161.9E/MO, and SA..61../MO
Further information
G..161.9E/MO A6V12513940 | SA..61../MO A6V101037195 | SK..62/MO A6V12057657 |
 |  |  |
