SuperStorage 2029P-E1CR48L SuperStorage

Super X11DSC+
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 2 DIMMs, 12 HDDs and 1 NIC or SIOM card).
Drivers & Utilities BIOS IPMI Tested Memory Manuals OS Certification Matrix Drive Options NVMe Options

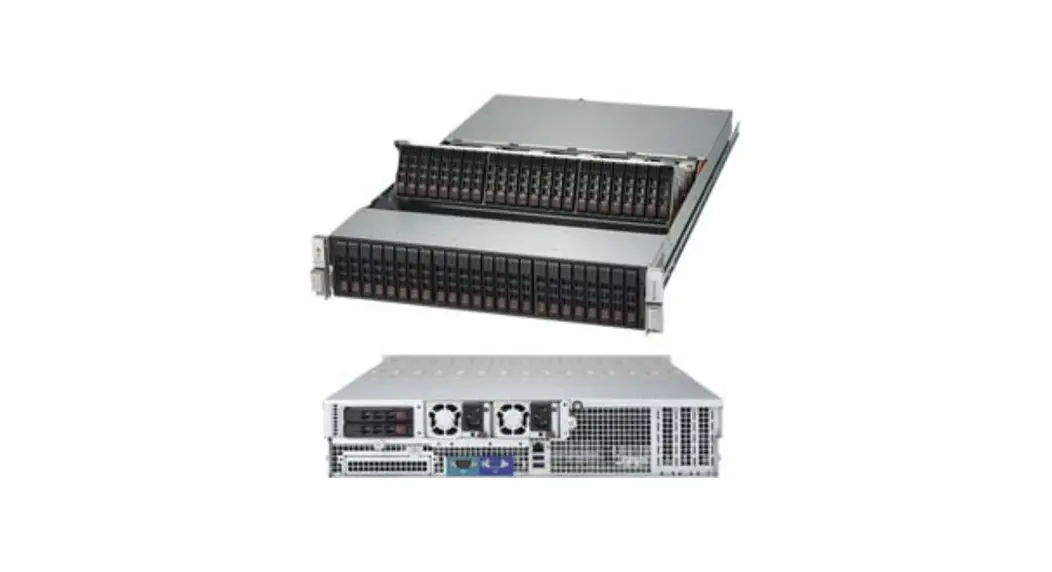

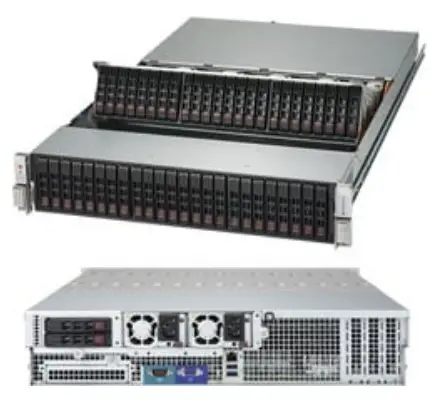

Note: Image above may show a varied configuration of optional parts.
Please refer to parts list for standard parts included.
Key Applications

Corporate Database
Database Processing & Storage
Enterprise Server
HPC, Data Center
iSCSI SAN

Key Features

Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8, 1 SIOM card support (flexible networking)
Note: must bundle with Network card
48 Hot-swap 2.5″ SAS3/SATA3 drive bays; 2 hot-swap 2.5″ drive bays (rear)
Broadcom 3008 SAS3, IT mode
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
5x 8cm high-performance PWM fans
1600W Redundant Power Supplies Titanium Level (96%)

Product SKUs

SSG-2029P	SuperStorage 2029P-E1CR48L
E1CR48L	(Black)

Chassis

Form Factor	2U Rackmount
Model	CSE-226STS-R1K62P1

Motherboard
Super X11DSC+
Processor

CPU	Dual Socket P (LGA 3647) 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors , 3 UPI up to 10.4GT/s Support CPU TDP 70-165W ‡
Cores	Up to 28 Cores
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory

Memory	24 DIMM slots
Capacity	Up to 6TB 3DS ECC DDR42933MHz† RDIMM/LRDIMM Supports Intel® Optane™ DCPMM ††
Memory Type	† 2933 /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset	Intel® C621 chipset
SAS	SAS3 (12Gbps) via Broadcom 3008; IT Mode
SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10, 50
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video	ASPEED AST2500 BMC

Input / Output

Serial ATA	8 SATA3 (6Gbps) ports
LAN	1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (rear) 1 Type A
Video	1 VGA D-Sub connector port
Serial Port / Header	1 Fast UART 16550 port / 1 Header

Dimensions

Width	17.2″ (437mm)
Height	3.5″ (89mm)
Depth	30.2″ (767mm) Cable Management Arm installed: 35.2″ (895mm)
Gross Weight	65 lbs (29.5 kg)
Available Colors	Black

Front Panel

Buttons	• Power On/Off button • System Reset button
LEDs	• Power status LED • Hard drive activity LED • Network activity LEDs • System Information LED • Power fail LED

Expansion Slots
PCI-Express

2 PCI-E 3.0 x16 slots
1 PCI-E 3.0 x8 slot
1 SIOM card support (must bundle with network card)

Drive Bays
Hot-swap

48 Hot-swap 2.5″ SAS3/SATA3 drive bays
2 Hot-swap 2.5″ SATA3 drive bays (rear)

Backplane
SAS3 12Gb/s direct attached storage backplane, w/ 24x SAS3 2.5″ drive slots
System Cooling
Fans

5x 8cm high-performance PWM fans

System BIOS
BIOS Type

AMI UEFI

Management

Software

Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring

CPU	• Monitors for CPU Cores, Chipset Voltages, Memory. • 4+1 Phase-switching voltage regulator
FAN	• Fans with tachometer monitoring Status monitor for speed control • Pulse Width Modulated (PWM) fan connectors
Temperature	• Monitoring for CPU and chassis environment • Thermal Control for fan connectors

Power Supply

1600W Redundant Power Supplies with PMBus

Total Output Power	1600W/1000W
Dimension (W x H x L)	73.5 x 40 x 203 mm
Input	100-127Vac / 13 – 9A / 50-60Hz 200-240Vac / 10 – 8A / 50-60Hz
+12V	Max: 83.3A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac)
12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	Titanium Level [ Test Report ]

Operating Environment

RoHS	• RoHS Compliant
Environmental Spec.	• Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing)

Parts List – (Items Included)

	Part Number	Qty	Description
Motherboard / Chassis	MBD-X11DSC+	1	Super X11DSC+ Motherboard
Motherboard / Chassis	CSE-226STS-R1K62P1	1	2U Chassis
Add-on Card / Module	AOM-53008M-L8-P	1	Mezz card with LSI 3008 controller
Backplane	BPN-SAS3-226SEL1-N4	2	24-port 2U Simply-Double SAS3 12Gbps single-expander backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
Cable 1	CBL-SAST-0836	2	MINI SAS HD,INT,SAS3 SSD,48CM,32AWG
Cable 2	CBL-SAST-0844	2	SLIMLINE SAS to MiniSAS HD,INT,85CM,30D-41F-14D,no sidebend,32AWG
Parts	MCP-220-82616-ON	1	12G 2.5×2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Heatsink / Retention	SNK-P0067PS	2	1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Power Supply	PWS-1K62A-1R	2	AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 – 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
FAN 1	FAN-0168L4	5	80x80x38 mm, 13.5K RPM, Middle Cooling Fan for SC226S Chassis (48-bay)
Drive Tray(s)	MCP-220-00047-0B	48	Black 3rd Gen hot-swap 2.5″ HDD tray

Optional Parts List

	Part Number	Qty	Description
2x 2.5″ rear SATA drive bay to support (2+2) drive bays	CBL-PWEX-0650 MCP-240-22603-0N MCP-240-22604-0N MCP-220-82616-0N	1 1 1 1	8-pin female to 2 Right Angle big 4-pin female power, 47/62cm 2U Rear Window support (2 + 2) 2.5 HDD 2U Rear plate support (2 + 2) 2.5 HDD Rear Window 12G 2x 2.5″ HDD Module
4 NVMe Drives Support	CBL-SAST-0929 MCP-220-00121-0B	4 4	OCuLink 0.91 to MiniSAS HD,INT,PCIe NVMe SSD, 57CM, 34AWG Black gen-3 2.5 NVMe drive tray
Global Services & Support	OS4HR3/2/1	–	3/2/1-year onsite 24x7x4 service
Global Services & Support	OSNBD3/2/1	–	3/2/1-year onsite NBD service
Software	SFT-OOB-LIC • eStore	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
