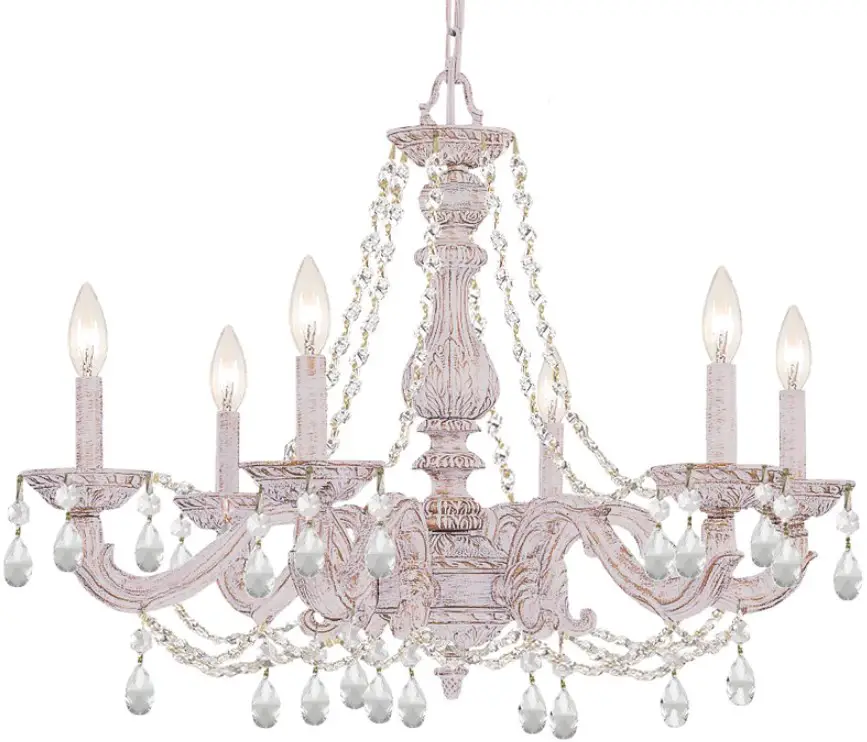

ASSEMBLY INSTRUCTION

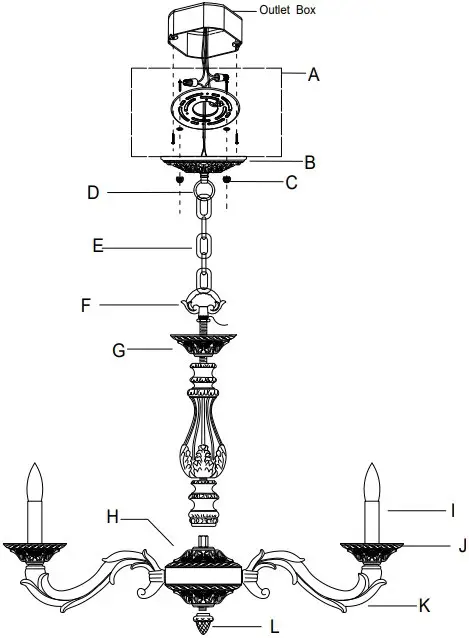

Part Number

• A. (1) – Mounting Hardware
  Wire Connector x 2
  • Mounting Plate x 1
  • Hex Nut x 1
  • Screw x 4
• B. (1) – Canopy (W5″ x H1″); XSN5024AWCAN5IN
• C. (2) – Ball Nut
• D. (1) – Fixture Loop; XSN5024AWTOLOOP
• E. (1) – Chain (4mm x 72″); XSN5026AWCHA4MM
• F. (1) – Center Column Kit Loop; XSN5026AWBOLOOP
• G. (1) – Center Column Kit
  Threaded Nipple; H12 3/8″
  Top Bobeche ; Ø4″, 6pin, 10.3mm center hole
  • XSN5026AWBOB6IN
    Vase ; H8 1/4″.
    Column Kit Parts; H3 3/4″
• H. (1) – Fixture Body Kit
  • Coupling
  • Distributor Box Cover x 2; Ø5″,10.3mm center hole
  • Distributor box ; Ø5″ ,10.3mm center hole
• I. (6) – Candle Sleeve; H4 1/8″
  • XSN5026AWCDL4.125IN
• J. (6) – Bobeche; Ø4″,4pin,10.3mm center hole
  • XSN5026AWBOB4IN
• K. (6) – 9 1/2″ Arms
• L. (1) – Finial; XSN5024AWFIN

HOW TO INSTALL:

Crystal Sets’

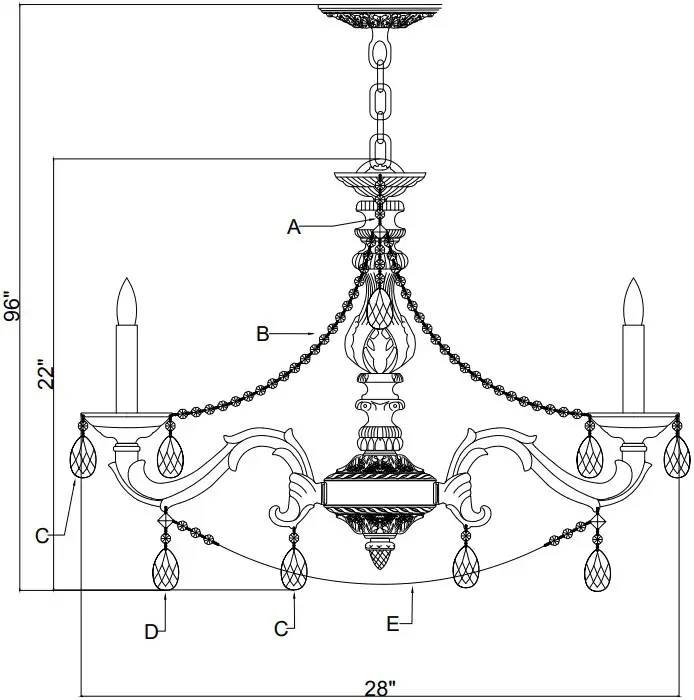

A. 6 Sets. (3)14mm + (1)Square + (3)14mm + AS9-2″
B. 12 Sets. (18)14mm
C. 30 Sets. (1)14mm + AS9-2″
D. 6 Sets. (1)Square + (1)14mm + AS9-2″
E. 6 Sets. (13)14mm

Place the fixture parts on a soft cloth-covered platform before installation of fixture.

WARNING:

Electrical Danger

Turn Power Off

All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes You will need 6- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.USE LED BULBS FOR EXTENDED USE

The fixture is Damp rated

1. Attach the Center column kit to thefixture body kit using the coupling and finial
2. Attach the mounting plate onto the outlet box
3. Decide the desired hanging height and adjust the chain to the correct length.
4. Raise the fixture up and do the wire connection.Attach the canopy over the mounting plate andsecure with fixture loop.
5. Put the candle sleeve onto the socket.
6. Dress the crystals as illustrated.

WARNING: This product can expose you to Lead,which is known to the State of California to cause cancer and/or birth defects or reproductive harm.For more information go to www.p65warnings.ca.gov
