Thule 145258 Ford Escape Roof Rack Kit Instruction Manual

THULE 145258 FORD Escape Roof Rack Kit

Product Information

Product Name: Kit 145258

Compatible Vehicles

• FORD Escape, 5-dr SUV, 20-
• FORD Kuga, 5-dr SUV, 20-

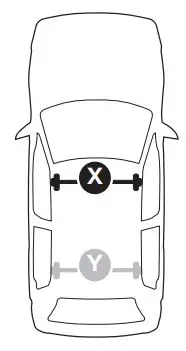

	Evo X (scale)	Edge X (scale)
FORD Escape, 5-dr SUV, 20-	54,5	F
FORD Kuga, 5-dr SUV, 20-	54,5	F

	X (mm/inch)

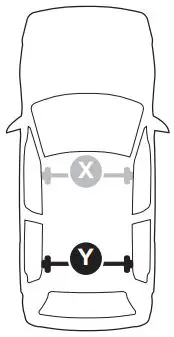

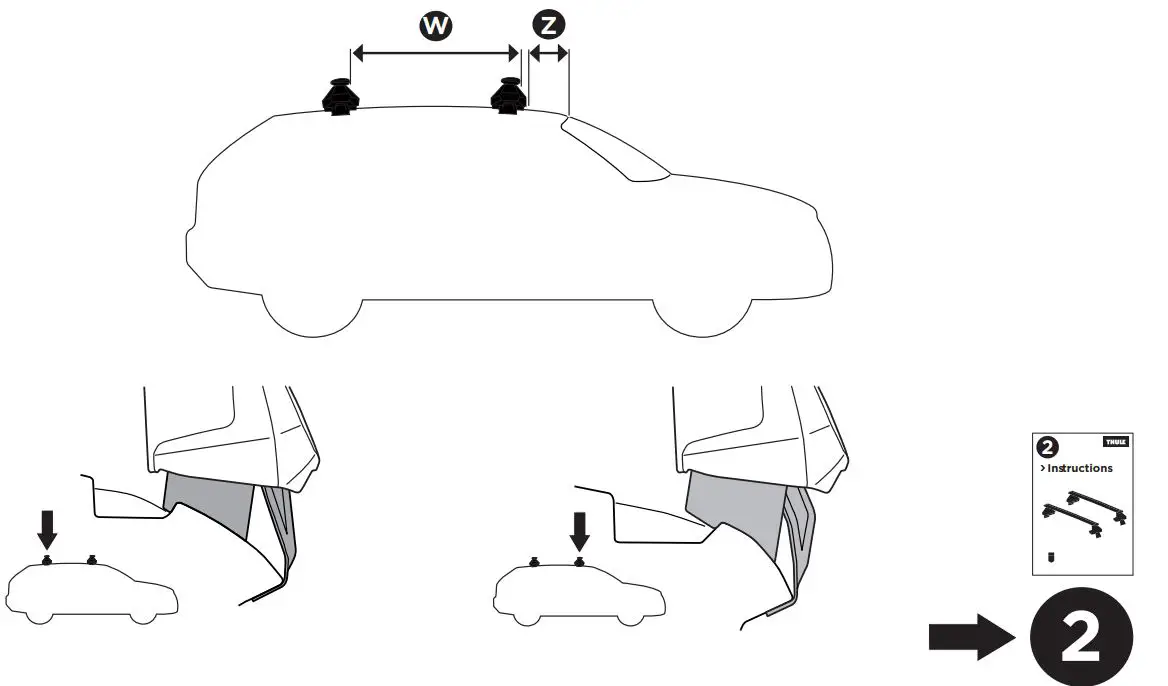

FORD Escape, 5-dr SUV, 20-	1196 mm / 47 1/8“
FORD Kuga, 5-dr SUV, 20-	1196 mm / 47 1/8“

	Evo Y (scale)	Edge Y (scale)
FORD Escape, 5-dr SUV, 20-	48	A
FORD Kuga, 5-dr SUV, 20-	48	A

Kit Components

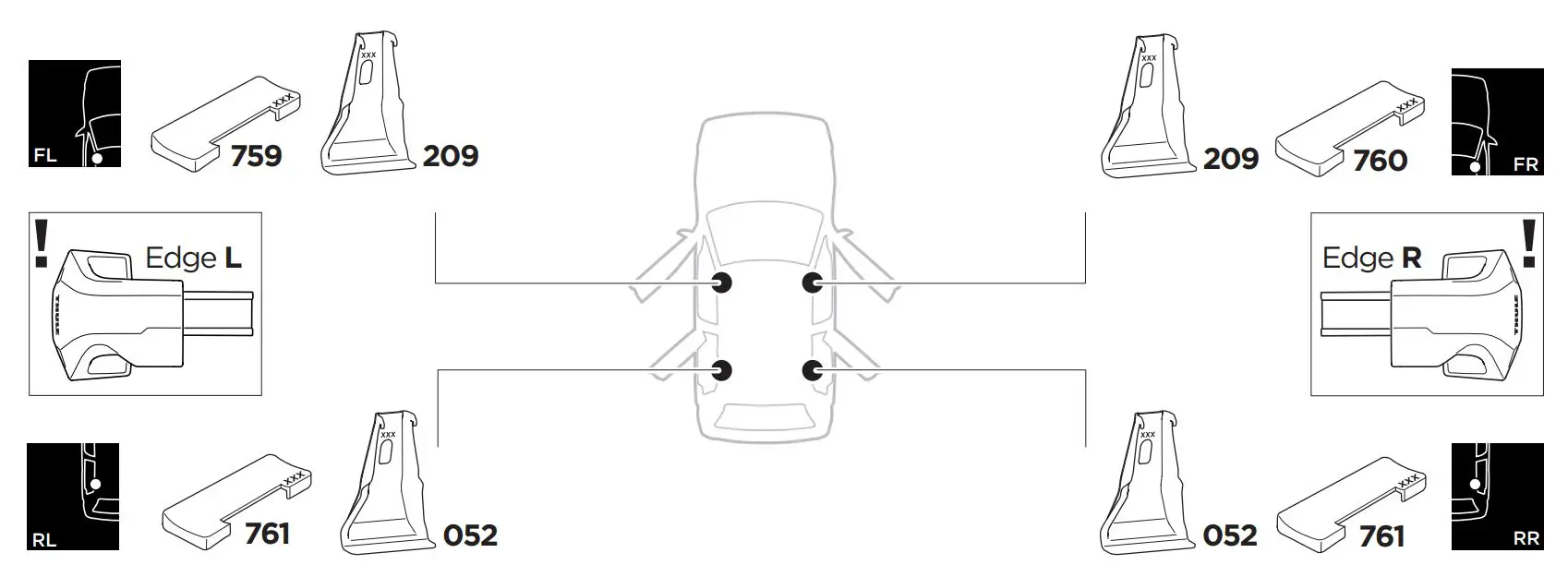

• 1 FL RL
• 1 FL FR
• 1 RL
• 1 RR
• 1 FL
• 1 RL
• 1 FR RR

2 FOOT PACK

• 2 Instructions

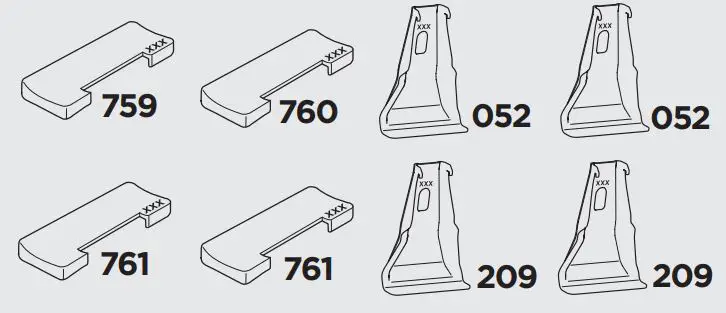

• 759 x2
• 760 x4
• 761 x4

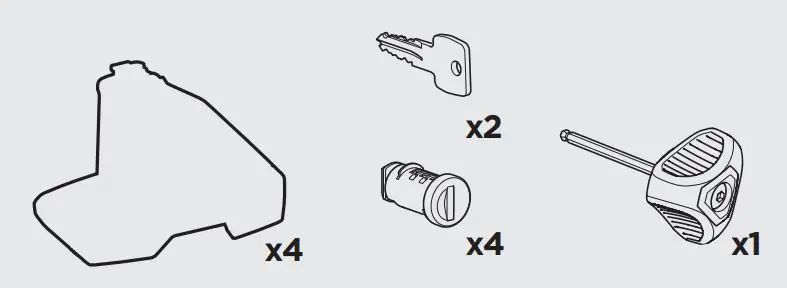

• 052 209 x1
• 052 209 x4
• ISO 11154-E
• 7 kg / 15.4 lbs

• Max Load Capacity: 75 kg / 165 lbs

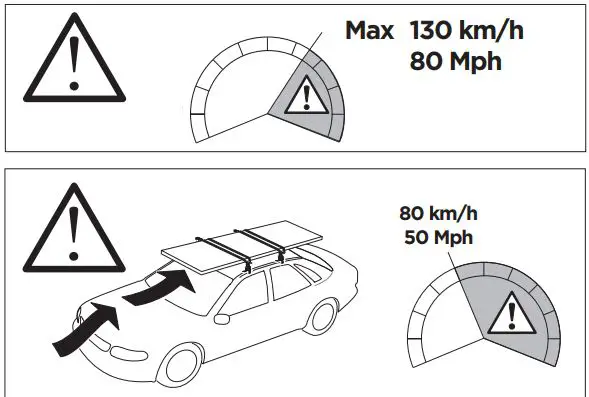

• Max Speed: 130 km/h / 80 mph
• Max Speed with Accessories: 80 km/h / 50 mph

Product Usage Instructions

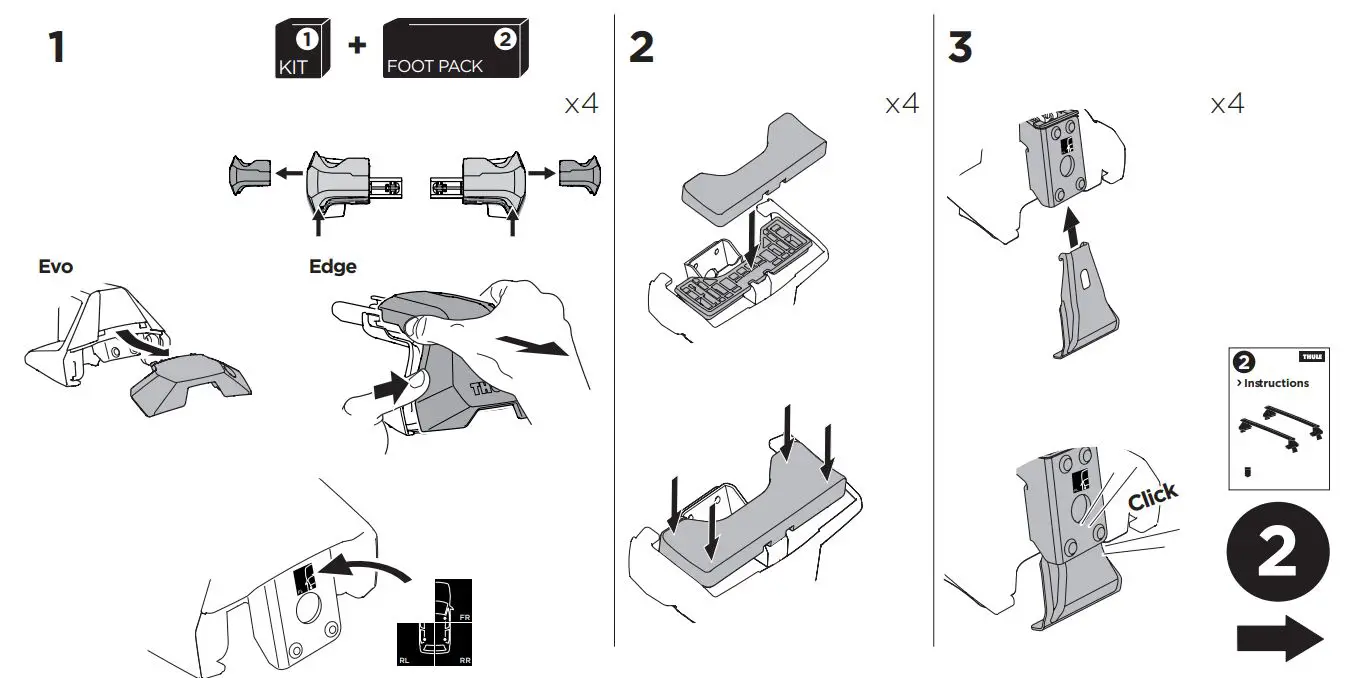

1. Attach the FL RL component to the appropriate location on the vehicle.
2. Attach the FL FR component to the appropriate location on the vehicle.
3. Attach the RL component to the appropriate location on the vehicle.
4. Attach the RR component to the appropriate location on the vehicle.
5. Attach the FL component to the appropriate location on the vehicle.
6. Attach the RL component to the appropriate location on the vehicle.
7. Attach the FR RR component to the appropriate location on the vehicle.
8. Install the 2 FOOT PACK components according to the provided instructions.
9. Follow the instructions provided for additional components (759, 760, 761, 052 209).
10. Ensure that the ISO 11154-E standard is met during installation.
11. The total weight of the load should not exceed 7 kg / 15.4 lbs.
12. Do not exceed the maximum load capacity of 75 kg / 165 lbs.
13. Do not exceed the maximum speed of 130 km/h / 80 mph.
14. If accessories are attached, do not exceed the maximum speed of 80 km/h / 50 mph.

Contact Information

Thule Sweden AB, Borggatan 5, 335 73 Hillerstorp, SWEDEN

• Website: www.thule.com
• Product Reference: 5560041003
• [email protected]
• © Thule Group 2020. All rights reserved.
