CRYSTORAMA 5036-AW-CL-MWP Six Light Chandelier Paris Market

Assembly Instructions

Thank you for purchasing the Crystorama Model #5036-AW-CL-MWP. This product is designed to provide elegant lighting for your home. Please read and follow these assembly instructions carefully to ensure safe and proper installation.

Product Information

• This fixture is damp rated
• Requires six candelabra base bulbs (40 watts recommended, 60 watts max)
• LED bulbs are recommended for extended use
• Crystal sets: 42 sets. (1)14mm + AS9-2
• WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to
  www.p65warnings.ca.gov

Usage Instructions

1. Before installation, turn off power to the area where the fixture will be installed.
2. Place all fixture parts on a soft cloth-covered platform before installation.
3. Attach the center column kit to the fixture body kit using the coupling and finial.
4. Attach the mounting plate onto the outlet box.
5. Decide the desired hanging height and adjust the chain to the correct length.
6. Raise the fixture up and do the wire connection.
7. Attach the canopy over the mounting plate and secure with fixture loop.
8. Put the candle sleeve onto the socket.

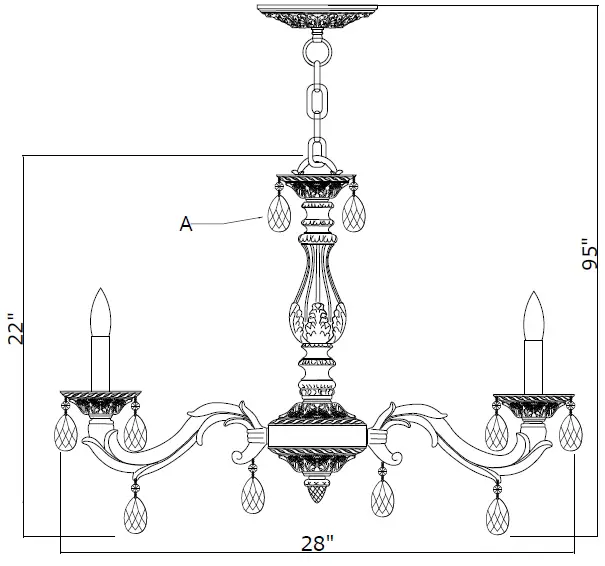

9. Dress the crystals as illustrated.

WARNING: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.

ASSEMBLY INSTRUCTION

• All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.

• You will need 6- Candelabra Base Bulb 40 Watts recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE The fixture is Damp rated

HOW TO INSTALL

Place the fixture parts on a soft cloth-covered platform before installation of fixture.

1. Attach the Center column kit to the fixture body kit using the coupling and finial.
2. Attach the mounting plate onto the outlet box.
3. Decide the desired hanging height and adjust the chain to the correct length.
4. Raise the fixture up and do the wire connection.
5. Attach the canopy over the mounting plate and secure with fixture loop.
6. Put the candle sleeve onto the socket.
7. Dress the crystals as illustrated.

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.p65warnings.ca.gov

Part Number

Part Numbers

1. A. (1) – Mounting Hardware
   1. Wire Connector x 2
   2. Mounting Plate x 1
   3. Hex Nut x 1
   4. Screw x 4
2. B. (1) – Canopy (W5″ x H1″); XSN5024AWCAN5IN
3. C. (2) – Ball Nut
4. D. (1) – Fixture Loop; XSN5024AWTOLOOP
5. E. (1) – Chain (4mm x 72″); XSN5026AWCHA4MM
6. F. (1) – Center Column Kit Loop; XSN5026AWBOLOOP
7. G. (1) – Center Column Kit
   1. Threaded Nipple; H12 3/8″
   2. Top Bobeche ; Ø4″, 6pin, 10.3mm center hole
   3. XSN5026AWBOB6IN
   4. Vase ; H8 1/4″.
   5. Column Kit Parts; H3 3/4″

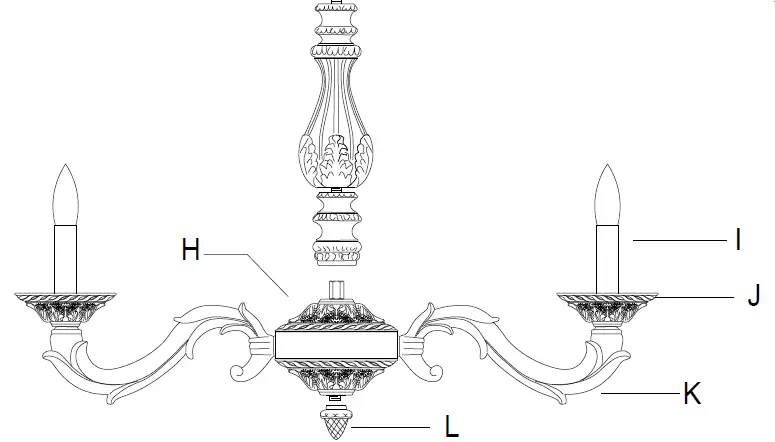

8. H. (1) – Fixture Body Kit
   1. Coupling
   2. Distributor Box Cover x 2; Ø5″,10.3mm center hole
   3. Distributor box ; Ø5″ ,10.3mm center hole
9. I. (6) – Candle Sleeve; H4 1/8″
   1. XSN5026AWCDL4.125IN
10. J. (6) – Bobeche; Ø4″,4pin,10.3mm center hole
    1. XSN5026AWBOB4IN
11. K. (6) – 9 1/2″ Arms
12. L. (1) – Finial; XSN5024AWFIN
