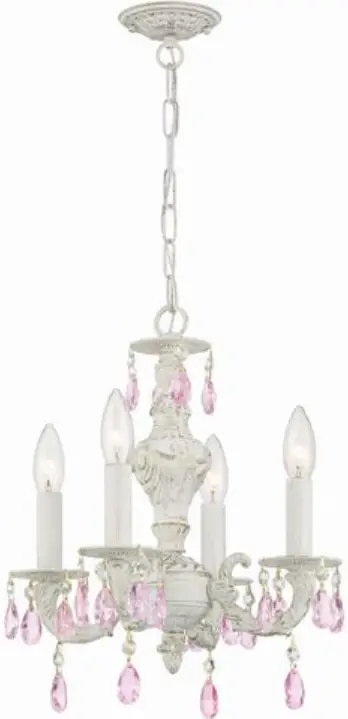

CRYSTORAMA 5024-AW-RO-MWP Paris Market 4 Light Antique White Mini Chandelier
Product Information
The product is a lighting fixture model #5024-AW-RO-MWP manufactured by Crystorama. It requires 4 Candelabra Base Bulbs,with 40 Watts recommended and 60 Watts Max. It is damp rated and comes with a center column kit, fixture body kit, mounting plate,
chain, metal candle sleeve, white PVC candle sleeve, and finial. The crystal set includes 24 sets of crystals with a size of 14mm and AS9-1.5.
The product is designed to be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. The product can expose users to lead, which is known to cause cancer and/or birth defects or
reproductive harm. For more information, visit www.p65warnings.ca.gov.
Product Usage Instructions
Before installation, place the fixture parts on a softcloth-covered platform.
- Attach the center column kit to the fixture body kit using the coupling and finial.
- Attach the mounting plate onto the outlet box.
- Decide on the desired hanging height and adjust the chain tothe correct length.
- Raise the fixture up and do the wire connection. Attach thecanopy over the mounting plate and secure it with a loop.
- Put the metal candle sleeve onto the socket.
- Dress the crystals as illustrated.
Note that LED bulbs are recommended for extended use. The product requires electrical installation by a licensed electrician. Ensure that all electrical components are installed in accordance with the National Electric Code and the appropriate local electrical codes.
Dimension
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 4- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
The fixture is Damp rated
HOW TO INSTALL
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Attach the Center column kit to the fixture body kit using the coupling and finial.
- Attach the mounting plate onto the outlet box.
- Decide the desired hanging height and adjust the chain to the correct length.
- Raise the fixture up and do the wire connection.
Attach the canopy over the mounting plate and secure with loop. - Put the metal candle sleeve onto the socket.
- Dress the crystals as illustrated.
WARNING:This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.For more information go to www.p65warnings.ca.gov

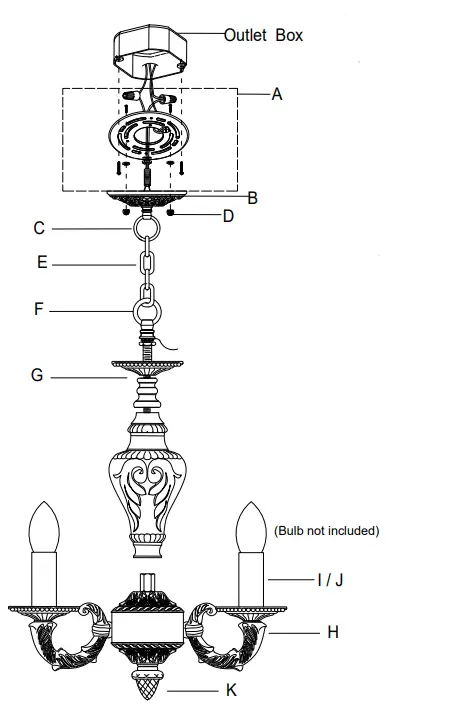

Part Number
- A. (1)-Mounting hardware
Wire connector x2.
Mounting plate x1.
Lock washer x1.
Hex nut x3.
Threaded nipple x1.
Screw x4. - B. (1)-Canopy ; Ø5″ ; 10.3mm center hole.
XSN5024AWCAN5IN - C. (1)-Loop; XSN5024AWTOLOOP
- D. (2)-Ball nut
- E. (1)-Chain(3mmx72″); XSN5024AWCHA3MM
- F. (1)-Fixture loop; XSN5024AWBOLOOP
- G. (1)-Center column kit; XSN5021AWBOB3.375IN
Threaded nipple ; H8 1/4″
Top bobeche ; Ø3 1/8″ ; 4pin ; 10.3mm center hole
XSN5021AWBOB3.375IN
Metal part ; H1.5″
Column vase ; H5 7/8″ - H. (1)-Fixture body kit
Coupling.
Distributor box cover x2 ; Ø3″
Distributor box ; Ø3″ ; 10.3mm center hole.
3.5″Arm x4.
Bobeche x4 ; Ø3 1/8″ ; 4pin, 10.3mm center hole.
XSN5021AWBOB3.375IN - I. (4)-Metal candle sleeve ; H3 1/4″ XSN5021AWCDL3.25IN
- J.(4)-White PVC candle sleeve XSN5021WHCDL3.25IN
- K.(1)-Finial; XSN5024AWFIN
