5024-VB-GT-S Paris Market Four Light Mini Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 4- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE
The fixture is Damp rated
HOW TO INSTALL:
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Attach the Center column kit to the fixture body kit using the coupling and finial.
- Attach the mounting plate onto the outlet box.
- Decide the desired hanging height and adjust the chain to the correct length.
- Raise the fixture up and do the wire connection.
Attach the canopy over the mounting plate and secure with loop. - Put the metal candle sleeve onto the socket.
- Dress the crystals as illustrated.
Crystal Sets
A. 24Sets. (1)14mm+(1)AS9-1.5″
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.p65warnings.ca.gov

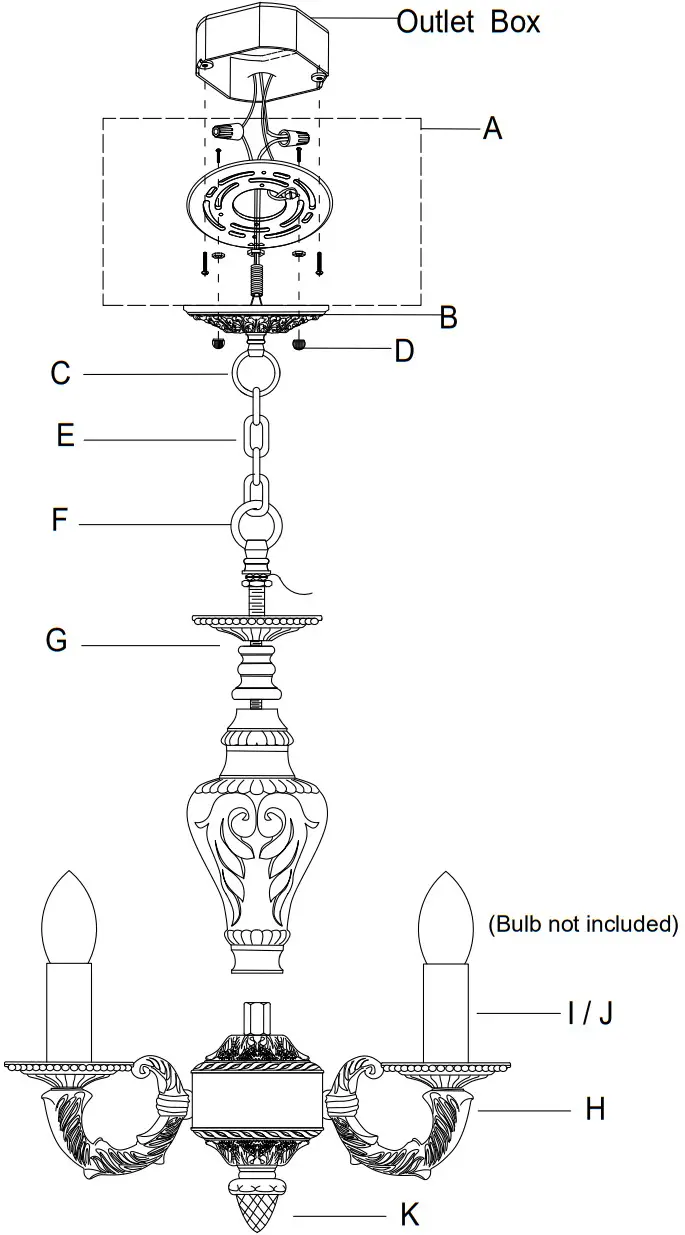

Part Number
Part Numbers
A. (1)-Mounting hardware
Wire connector x2.
Mounting plate x1.
Lock washer x1.
Hex nut x3.
Threaded nipple x1.
Screw x4.
B. (1)-Canopy; Ø5″; 10.3mm center hole.
XSN5024VBCAN5IN
C. (1)-Loop; XSN5024VBTOLOOP
D. (2)-Ball nut
E. (1)-Chain(3mmx72″); XSN5024VBCHA3MM
F. (1)-Fixture loop; XSN5024VBBOLOOP
G. (1)-Center column kit; XSN5021VBBOB3.375IN
Threaded nipple; H8 1/4″
Top bobeche; Ø3 1/8″; 4pin; 10.3mm center hole
XSN5021VBBOB3.3V
Metal part; H1.5″
Column vase; H5 7/8″
H. (1)-Fixture body kit Coupling.
Distributor box cover x2; Ø3″
Distributor box; Ø3″; 10.3mm center hole.
3.5″Arm x4.
Bobeche x4; Ø3 1/8″; 4pin, 10.3mm center hole.
XSN5021VBBOB3.375IN
I. (4)-Metal candle sleeve ; H3 1/4″
XSN5021VBCDL3.25IN
J. (4)-White PVC candle sleeve
XSN5021WHCDL3.25IN
K.(1)-Finial; XSN5024VBFIN
