LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION MODEL #5124-VB
5124-VB Paris Market Four Light Mini Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 4- Candelabra Base Bulb 40 Watts recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE The fixture is Damp rated
HOW TO INSTALL
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Attach the mounting plate onto the outlet box.
- Place the candle sleeve over the socket.
- Decide the desired hanging height and adjust the chain to the correct length.
- Raise the fixture up and do the wire connection. Attach the canopy over the mounting bar and secure with loop and ball nuts.
- Screw the center column kit onto the fixture body kit using the coupling and finial.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.p65warnings.ca.gov

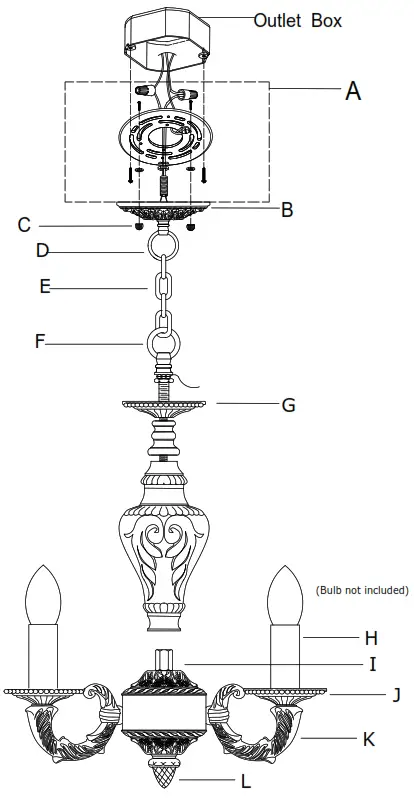

Part Number
Part Numbers
A. (1)-Mounting hardware
Wire connector x2.
Mounting plate x1.
Lock washer x1.
Hex nut x3.
Threaded nipple x1.
Screw x4.
B. (1)-Canopy (W5″xH1″); XSN5024VBCAN5IN
C. (2)-Ball nut
D. (1)-Loop; XSN5024VBTOLOOP
E. (1)-Chain (3mmx72″);XSN5024VBCHA3MM
F. (1)-Center column kit loop;XSN5024VBBOLOOP
G. (1)-Center column kit
Threaded nipple ; H8 1/4″
Top bobeche ; Ø3 1/8″ ; no pin ; 10.3mm center hole
XSN5124BOB3.375IN
Metal part ; H1.5″
Vase ; H5 7/8″
H. (4)-Candle sleeve ; H3 1/4″
XSN5021VBCDL3.25IN
I . (1)-Fixture body kit Coupling
Distributor box cover x2 ; Ø3″ ; 10.3mm center hole Distributor box ; Ø3″
J. (4)-Bobeche ; Ø3 1/8″ ; no pin ; 10.3mm center hole
XSN5124BOB3.375IN
K. (4)-3.5″Arm
L. (1)-Finial; XSN5024VBFIN
