LIGHTING THE WAY FOR SIXTY YEARS
ASSEMBLY INSTRUCTION MODEL #9229-0S
9229-OS Solaris Nine Light Chandelier
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 9 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Screw the center stem onto the swivel on the top of upper frame and then screw the light cluster onto the center stem.
- Attach the lower frame onto the upper frame by aligning the holes on the ring of each frame. Secure together with flat head screws. Make sure the sticker on the upper frame lines up with the sticker on the lower frame.
- Place this candle sleeve over the socket and install the bulb onto the socket.
- Hang the crystal ball on the bottom frame.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P85Warnings.ca.gov.

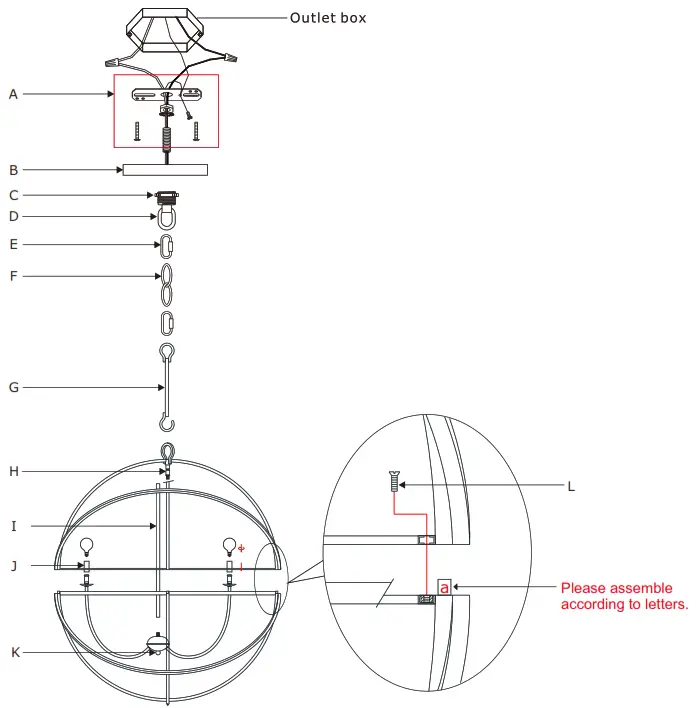

Part Number
A.(1)- Mounting Hardware

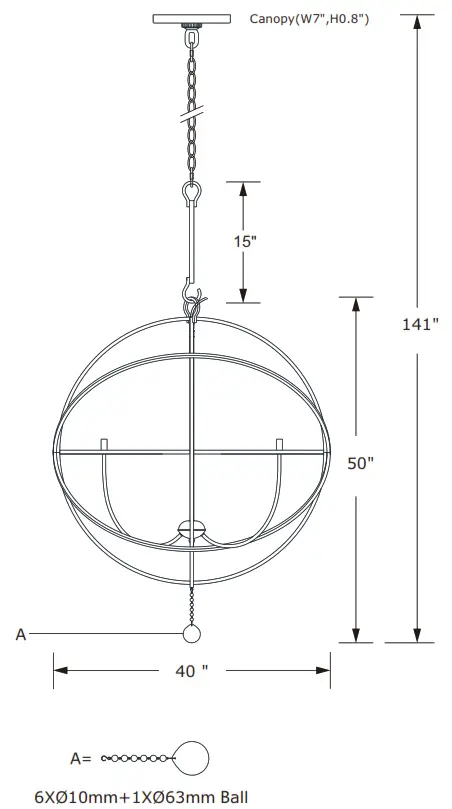

B.(1) – Canopy(W7″, H0.8″) #XRE92290SCAN7IN
C.(1)- Collar Ring
D.(1) – Collar Loop #XRE92200SLOOP
E.(2) – Quick Link
F.(1)- Hanging Chain(72″,4mm)#XRE92200SCHA4MM
G.(1) – Rod (15″,15.9m0XRE92290SROD15IN
H.(1)- Swivel
I.(1)- Center Stem(20.16″,15.3mm) #XRE92290SSTEM20.16IN
J.(9) – Candle Sleeve(W0.66″,H1.50″)#XRE92290SCDL1.50IN
K(1) – Final #XRE92200SFIN
L.(8) – Screw
