CRYSTORAMA 9225-OS Solaris Three Light Mini Chandelier
WARNING
Electrical Danger
Turn Power Off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 3 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED
How to Install
- Do a complete inventory of all parts and components before you start installation.
- Install bulbs (not included).
- Install the mounting plate onto outlet box and secure it with the outlet box screws.

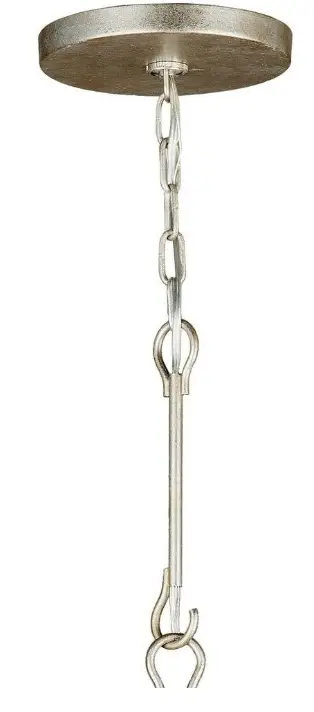

- Take the end of the rod with a hook and attach it to the top of the fixture frame. Open a quick link and attach it to the other end of the rod (the end with a closed loop)
- Thread the collar ring into the canopy.
- 6.Open the other quick link and attach it to the collar loop.
- Connect fixture wires into the outlet box.
- Raise the canopy onto the collar loop and secure it with the collar ring.
- Attach the crystal ball “A” on the bottom of fixture.
- After safely attaching fixture into outlet box, proceed to connecting the power.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

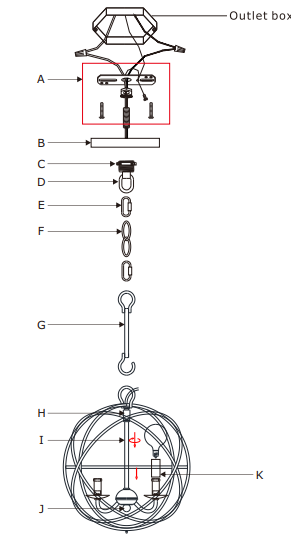

PART NUMBER
Part Number
A.(1) – Mounting Hardware

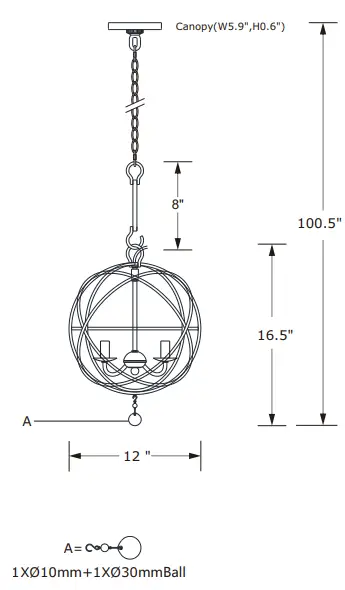

B.(1) – Canopy(W5.9”, H0.6”) #XRE9224OSCAN5.9IN
C.(1) – Collar Ring
D.(1) – Collar Loop
E.(2) – Quick Link
F.(1) – Hanging Chain(72″,4mm) #XRE9220OSCHA4MM
G.(1) – Rod(8″,9.3mm) #XRE9224OSROD8IN
H.(1) – Swivel
I.(1) – Center Stem(6.14″,9.3mm) #XRE9225OSSTEM6.14IN
J.(1) – Final #XRE9224OSFIN
H.(3) – Candle Sleeve(W0.87″,H1.97″) #XRE9224OSCDL1.97IN
