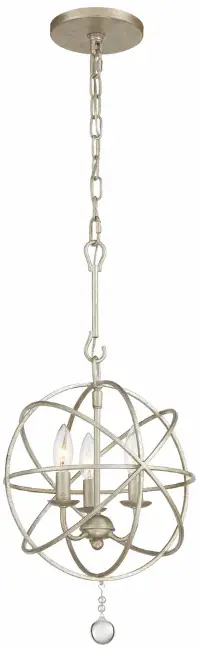

CRYSTORAMA 9225-EB Solaris Three Light Mini Chandelier Instruction Manual

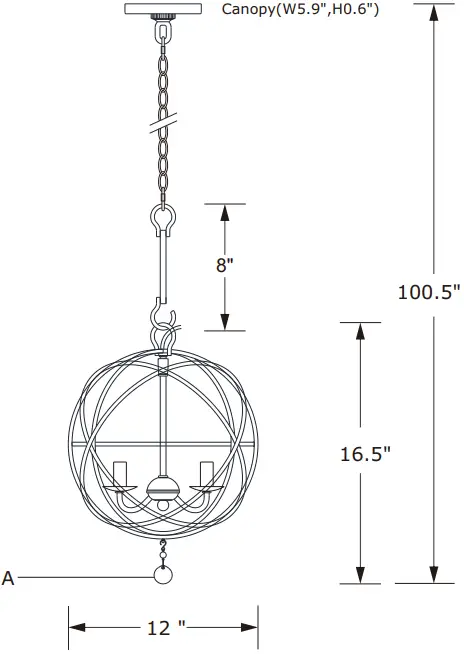

Dimension
A=
1XØ10mm+1XØ30mmBal
Safety Instruction
 |  |
| All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes. | You will need 3 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED |
How To Install
- Do a complete inventory of all parts and components before you start installation.
- Install bulbs (not included).
- Install the mounting plate onto outlet box and secure it with the outlet box screws.
- Take the end of the rod with a hook and attach it to the top of the fixture frame.
Open a quick link and attach it to the other end of the rod (the end with a closed loop. - Thread the collar ring into the canopy.
- Open the other quick link and attach it to the collar loop.
- Connect fixture wires into the outlet box.
- Raise the canopy onto the collar loop and secure it with the collar ring.
- Attach the crystal ball “A” on the bottom of fixture.
- After safely attaching fixture into outlet box, proceed to connecting the power.
WARNING:
This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.
For more information go to: www.P65Wamings.ca.gov

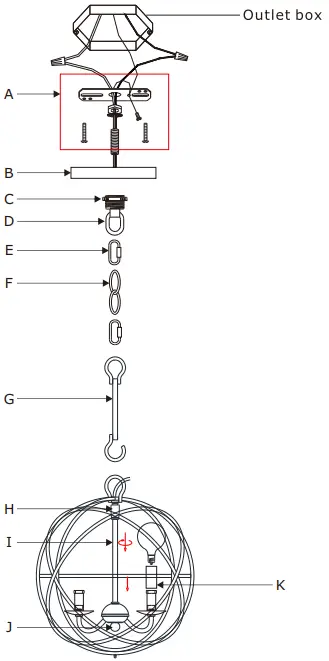

PART NUMBER
- A.(1) – Mounting Hardware
- B.(1) – Canopy(W5.9”, H0.6”) #XRE9224EBCAN5.9IN
- C.(1) – Collar Ring
- D.(1) – Collar Loop
- E.(2) – Quick Link
- F.(1) – Hanging Chain(72″,4mm) #XRE9220EBCHA4MM
- G.(1) – Rod(8″,9.3mm) #XRE9224EBROD8IN
- H.(1) – Swivel
- I.(1) – Center Stem(6.14″,9.3mm) #XRE9225EBSTEM6.14IN
- J.(1) – Final #XRE9224EBFIN
- H.(3) – Candle Sleeve(W0.87″,H1.97″) #XRE9224EBCDL1.97IN
