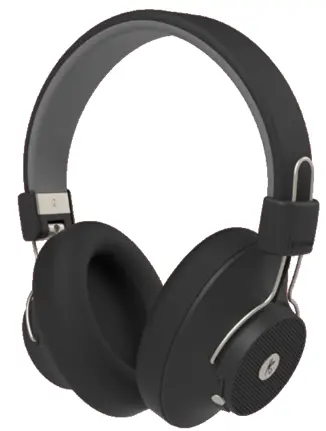

aBEAT Qi
Wireless headphones with ANC
Operation manual
Safety and maintenance instructions
This product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
The declaration of conformity may be consulted at: https://Kreafunk.com/pages/declaration-of-conformity This stylish product is made from 100% recycled plastic.

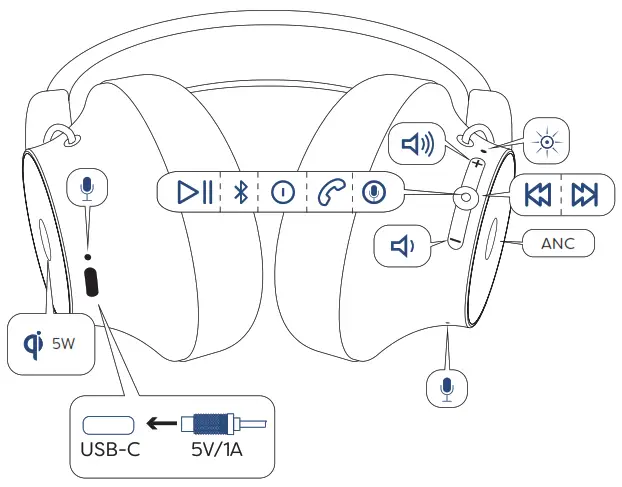

Overview

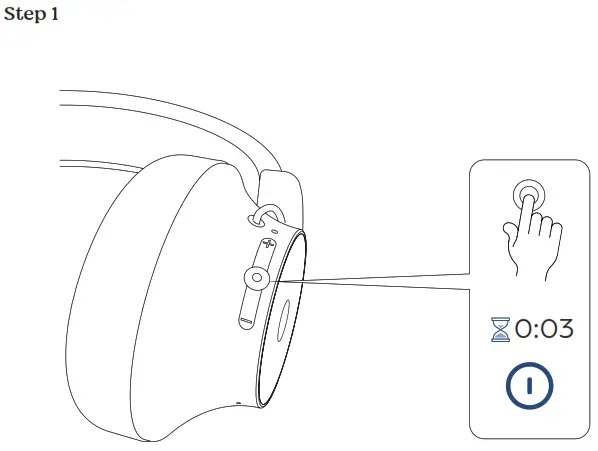

On/off
Listen via Bluetooth

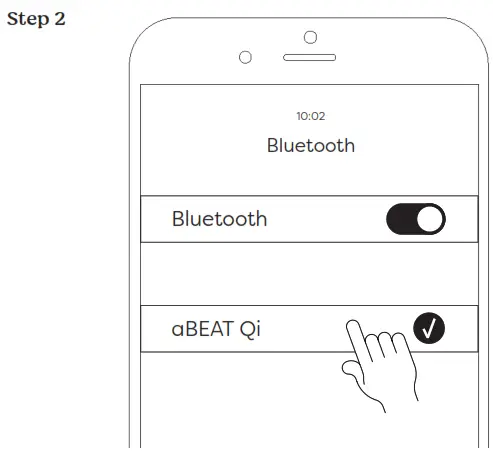

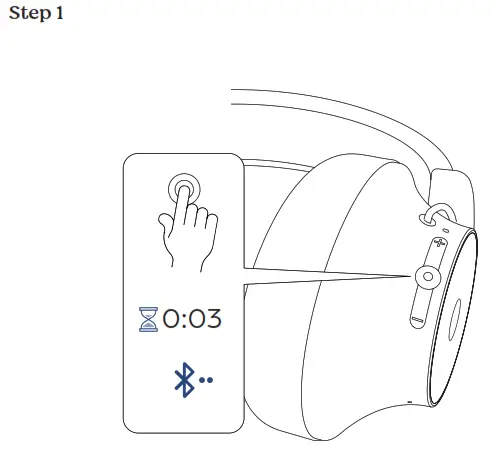

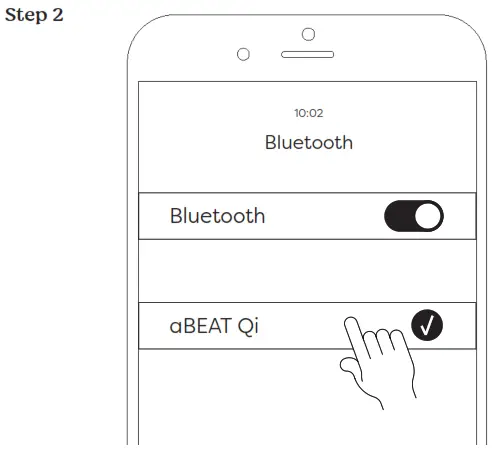

Manual Bluetooth pairing
Listen via Bluetooth

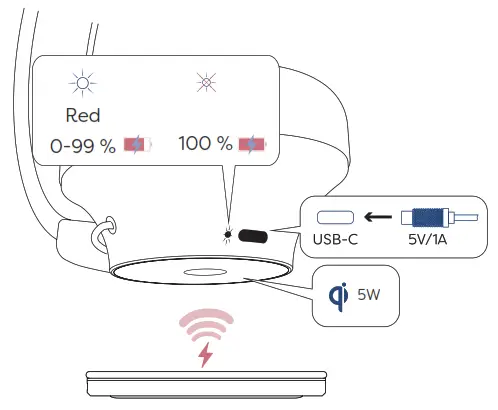

Charging

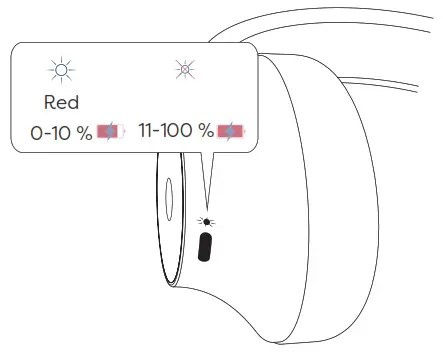

Battery status

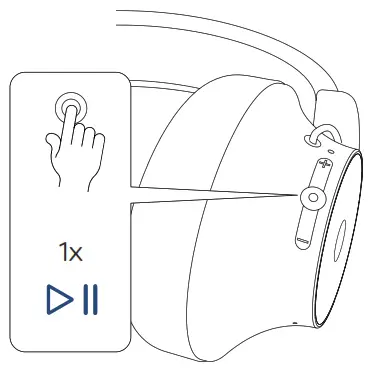

Play/pause

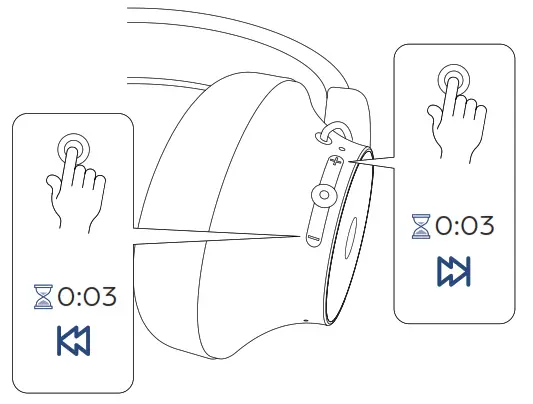

Change track

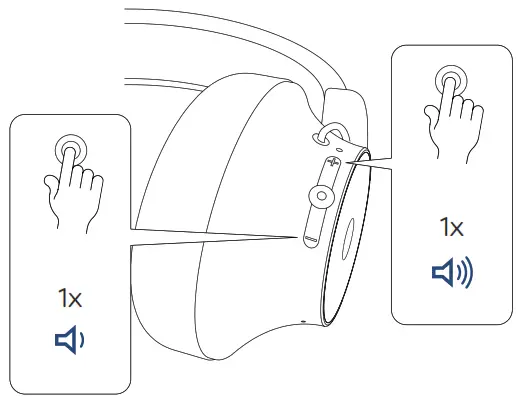

Change volume
Active-noise cancellation (ANC)

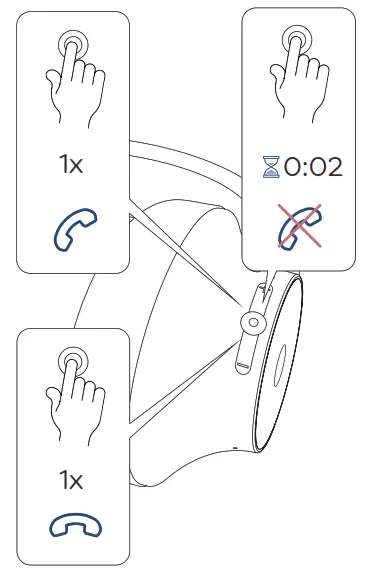

Phone

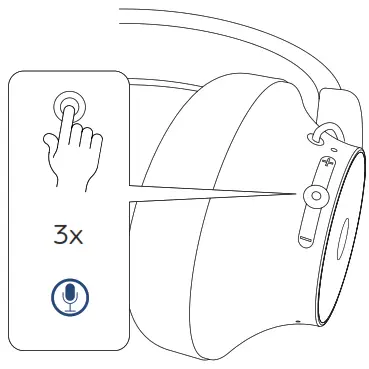

Voice assistant

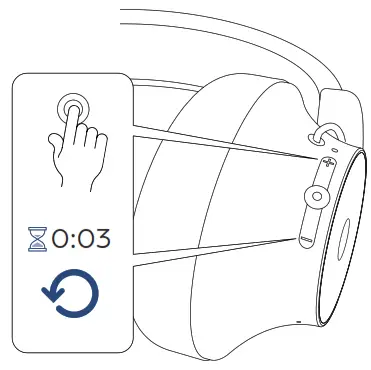

Reset
Technical specifications
- Active noise cancellation (ANC)
- 100% recycled ABS plastic
- Water-resistant (IPX4)
- Dimensions: 158*183*73 mm
- Weight: 200g
- Speaker: Ø40 mm 32Ω
- Playing time: up to 20 hours (with ANC) up to 30 hours (without ANC)
- Charging time: 1.5 hours (USB & Qi)
- Supports Qi wireless charging
- USB-C cable included
- Foldable
- Adjustable fit
- Replaceable ear cushions
- Voice Assistant
- Build in Lithium battery with 500mAh
- Bluetooth: version 5.0
- Range: up to 10m
- Input power: 5V / 1A
- Frequency band: 2402–2480 MHz
- Maximal radio frequency effect: <3 dBm
FCC statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference and
- This device must accept any interference received, including interference that may cause undesired operation.
Important: Changes or modifications to this product not authorized could void the FCC compliance and negate your authority to operate the product.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits for a signed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
FCC ID: 2ACVC-ABEAT
Safety and maintenance instructions
- Please read this operation manual carefully before use.
- The safety and maintenance instructions in this operation manual should be retained for future reference and must be followed at all times.
- Keep the product away from heat sources such as radiators, heaters or other appliances that produce heat.
- Place the speakers in a stable position to avoid fall and cause damage or personal injury.
- Do not expose the product to direct sunlight for longer periods. High temperatures may shorten the life of the product, destroy the battery and distort certain plastic parts.
- Do not expose the product to extreme cold as it may damage the internal circuit board.
- Rechargeable batteries have a limited number of charge cycles. Battery life and number of charge cycles varies by use and settings.
- Avoid liquids getting into the product.
- Before wiping with a dry cloth to clean the speakers, set the power switch to the off position and unplug the power cord from the power outlet.
- Do not throw with or stamp on the product. This may damage the internal circuit board.
- Do not try to disassemble the product. This must only be done by a professional.
- Do not use concentrated chemical products or detergent to clean the product.
- Keep the surface away from sharp things, as these may cause damage to the plastic parts.
- Use 5V / 1A power supplies only. The connection of power supplies with higher voltage may lead to severe damage.
- Do not arbitrarily discard or place the lithium battery near fire or intense heat in order to avoid a risk of explosion.
If you do experience any problems with your product please contact the retailer you purchased the product from. The retailer will provide you with guidance and if that does not solve the problem, the retailer will handle the claim directly with Kreafunk.
Kreafunk ApS
Klamsagervej 35A, st.
8230 Aabyhoej
Denmark
www.kreafunk.com
[email protected]
+45 96 99 00 20
