User Manual

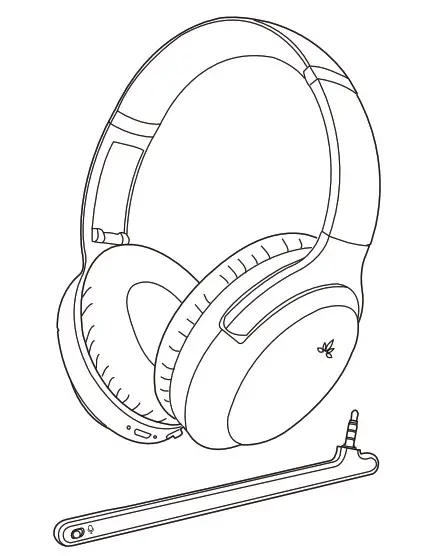

High-end Wireless ANC Headphones
BTHS-AS90P

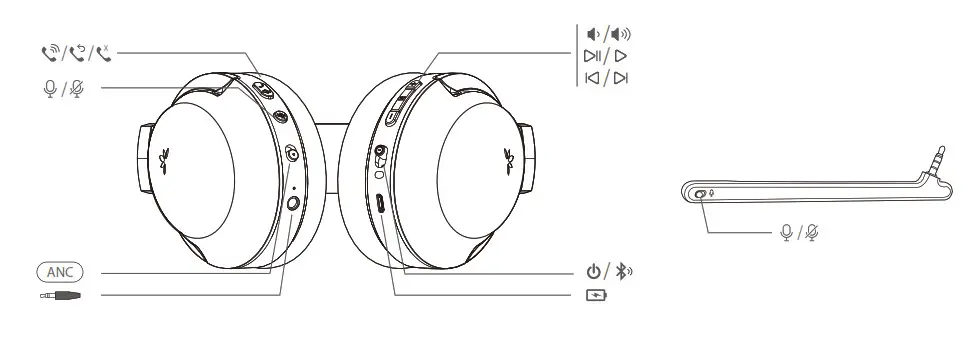

Product Overview
Product specification
- Bluetooth Version: V5.0
- Support profiles: HFP, HSP, A2DP, AVRCP
- Supported audio format(s): SBC, aptX, aptX-LL, aptX-HD
- Driver diameter: 40mm
- Impedance: 32ohm
- Frequency Response: 20Hz-20KHz
- Effective Range: Line of sight approx. 30 ft (10 m)
- Working time: Up to 24 hours music time
- Charging time: approx. 2 hours
- Ear pads inner diameter: 6cm (length)* 3.7cm(width)
- Ear pads outer diameter: 9.5cm (length)* 7.5cm(width)
- Product weight: 230g
Please read this User Guide carefully and keep it handy
For more AS90P product information please see support.avantree.com or search “AS90P” or “Avantree Aria Pro” on www.avantree.com
Basic operation
General function
| Power on |  Slide the power switch towards middle |
| Power off |  Slide the power switch towards |
| Activate / deactivate smart voice assistant | Press  once (wireless connected, non-calling status) |
| Voice prompts off | Press and hold both  and – for 1s to deactivate voice prompts |
| Voice prompts on | Press and hold both and + for 1s to activate voice prompts |
Music Control >
| Play / Pause music | Press  once |
| Volume up / down | Press +/ – once |
| Next / Previous track | Hold + / – for 2s |
Call Control >
| Answer / End a call | Pressonce |
| Reject a call | Hold for 2s with a call coming-in |
| Last number redial | Press twice |
| Mic mute on / off | On the headset – Press once during an active call On boom mic –Mute on  Mute off |
LED indicator
| Working Status | LED indicator |
| ANC ON | ANC indicator* shows GREEN  |
| ANC OFF | ANC indicator* turns OFF  |
| Pairing Mode | Blinks BLUE & RED alternately |
| Connected | Blinks BLUE once every 5s |
| Reconnecting | Blinks BLUE once every 1s |
| Disconnected | Blinks BLUE once every 2s |
| Low battery | Blinks RED once every 10s or indicator solid RED |
| Play audio in SBC Codec | Blinks BLUE once every 5s |
| Play audio in AptX Codec | Blinks WHITE once every 5s |
| Play audio in AptX-LL Codec | Blinks WHITE twice every 5s |
| Play audio in AptX-HD Codec | Blinks WHITE 3 times every 5s |
Activate noise cancellation (ANC)
After power ON, slide ANC switch to “ANC”
to activate the ANC function. The ANC LED light will turn GREEN.
Slide ANC switch opposite to “ANC”
to deactivate ANC function, the ANC LED will turn off.
Note:
You will NOT be able to use the ANC function when the headphones’ battery is low.
If you want to use the ANC function in wired mode, please power ON the headphones first.

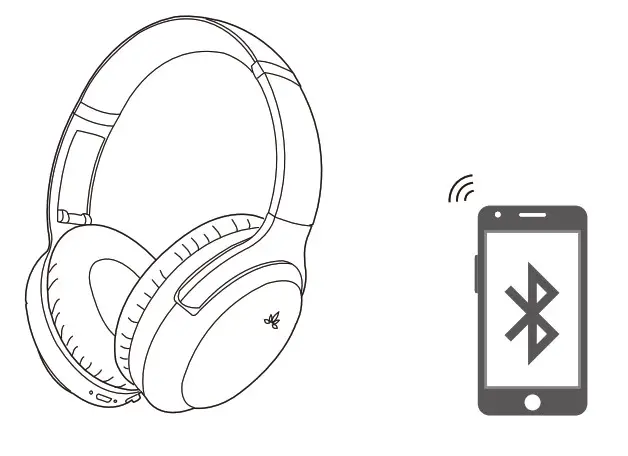

Connect to a Bluetooth device
- Enter headphones into PAIRNG MODE – Slide the power switch to
position
and hold for 3s until the LED flashes BLUE and RED alternately. - On your mobile device – Turn on Bluetooth and select “Avantree AS90P” to connect. If you are using a Bluetooth transmitter, please enter your transmitter into PAIRING MODE (please refer to your transmitter’s user manual).

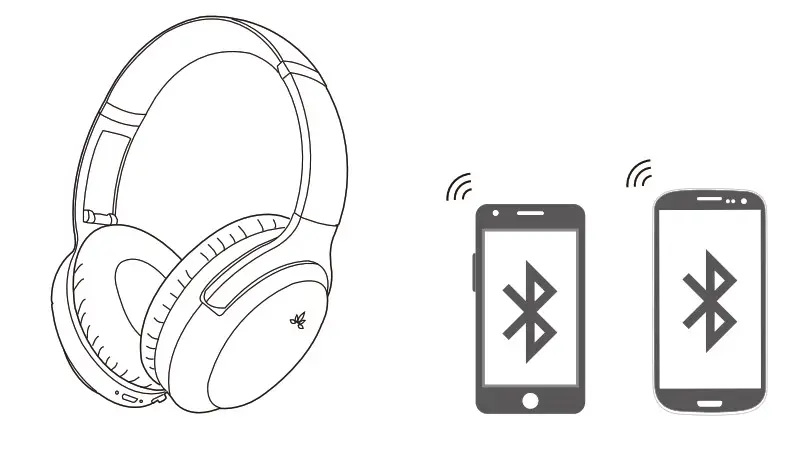

Connect to two Bluetooth devices simultaneously
- Connect AS90P to the FIRST device as shown above.
- Enter the AS90P into PAIRING MODE again and repeat the above steps to connect to the SECOND device.
Note: This feature only works for two mobile devices, such as cellphones and/or tablets. It doesn’t work for PCs or Bluetooth transmitters.
Reconnect to Bluetooth device
Normally, once powered on, the headphones will reconnect to the last connected device automatically within 5-10 seconds.
If it doesn’t, please slide the Power Switch to
position ONCE, OR select “Avantree AS90P” from your device to connect manually. (If you’re using a Bluetooth transmitter, please refer its user manual to reconnect)
Qualcomm® aptX™ HD
aptX-HD audio ensures that your Bluetooth® wireless enabled device can deliver High Deffnition (HD) audio. To take advantage of this feature, please ensure that the audio source device or the transmitter also supports the aptX-HD Latency codec. To check if your device is aptX-HD certified, visit aptX’s website: www.aptx.com.
We recommend Avantree Oasis Plus to ensure compatibility with the AS90P.
Qualcomm® aptX™ Low Latency
aptX-Low Latency delivers high quality 16bit audio while minimizing audio/video syncing issues. To take advantage of this feature, please ensure that the audio source device or the transmitter also supports the aptX-Low Latency codec. To check if your device is aptX-LL certified,visit aptX’s website: www.aptx.com.
We recommend any of the following Avantree Bluetooth transmitters – Oasis Plus, Audikast, Leaf to ensure compatibility with the AS90P.

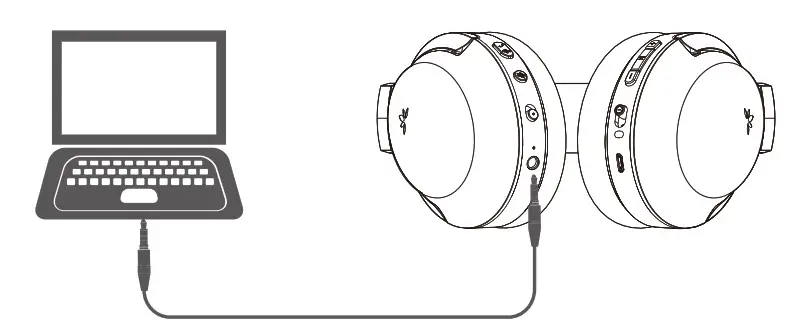

Using as a wired headphone
You may use the supplied 3.5mm audio cable to connect to a non-Bluetooth device.
Note: The control buttons, the built-in mic, and the detachable boom mic DOES NOT work in wired mode.
Note: If you wish to use the ANC function in wired mode, please turn on the headphones first.

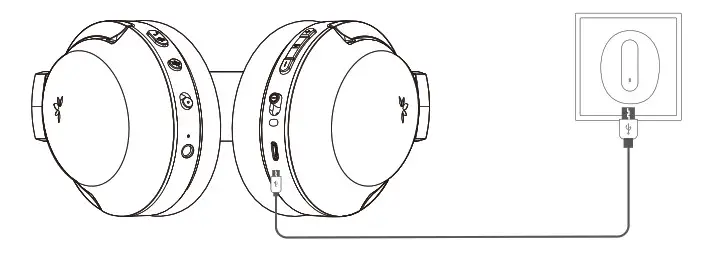

Charging
When the LED starts blinking RED once every 10s or indicator solid RED, or when you hear “beep” / prompts sound, you should recharge your headphones. Please plug it into a USB wall charger (DC 5V / 0.5-2A) or a powered USB port via the micro USB cable that we provided.
Normally it takes 2 hours to fully recharge. The LED indicator on the headphones will remain RED while charging and automatically turn o when the charging is complete.
Clear the headphones pairing history
Turn on the headset (Non-calling Status.) Press and hold both + and – for 5 seconds until the LED blinks PINK for 2 seconds. Now the pairing history has been cleared. The headphones will enter PAIRING MODE automatically (LED blinks Blue and Red alternately) and you’ll be able to pair it with the target Bluetooth device again.
Troubleshooting
No sound with PC?
- Set Avantree AS90P as the default device or output device on the PC.
- When using AS90P to make VOIP calls through apps, please set AS90P Hands-Free as Microphone and Speakers device.
No sound with Bluetooth transmitter when watching TV?
- Ensure Bluetooth transmitter and headphones are connected properly.
- Check to ensure audio source is functioning properly
– AUX & RCA output on TV – test with wired headphones
– OPT output on TV – Set audio format to “PCM/LPCM” or turnoff Dolby/DTS - Change your TV audio out setting to “External speakers /Headset.”
Headphones do not pair with Bluetooth device?
- Ensure that the AS90P is in Pairing mode – LED flashing BLUE and RED alternately.
- For Bluetooth transmitters, please ensure that the transmitter is in Pairing mode – you may refer to its user manual.
- For Smart phones, tablets and PC
- Turn the Bluetooth off and then on again.
- Delete “Avantree AS90P” headphones from your device’s Bluetooth list and try to pair again.
- Clear the headphone’s pairing history and pair again.
