Avantree Bths-as90ta-sgl Personalized Audio Wireless Hd Headphones User Manual

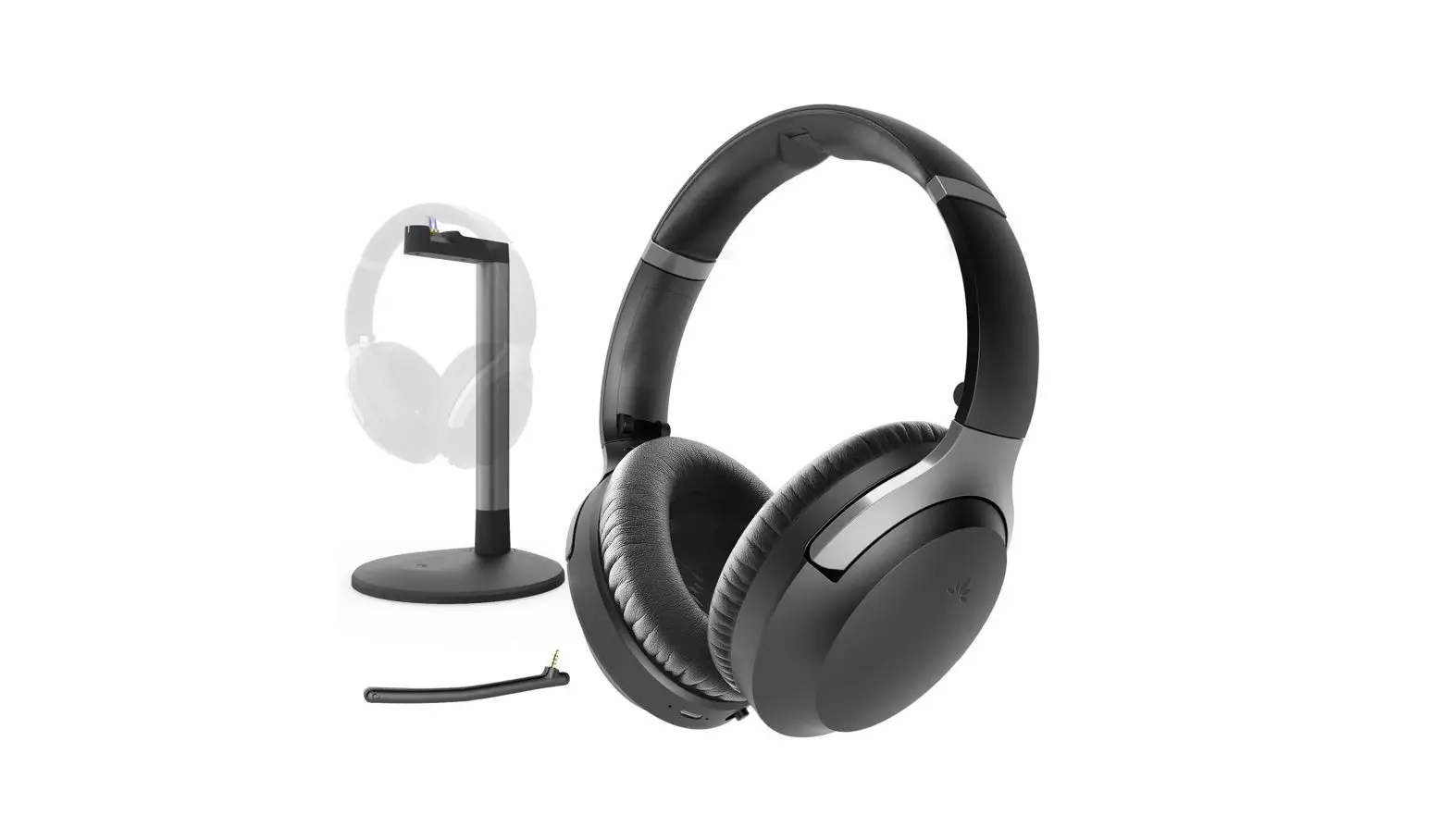

Personalized Audio Wireless HD Headphones

Model: BTHS-AS90TA-SGL

User Manual

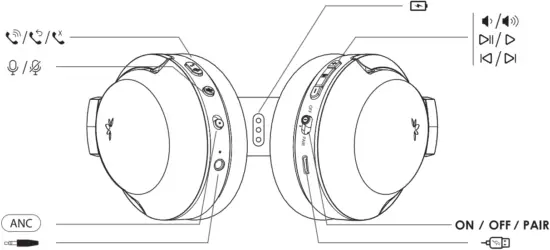

Product Overview

Product Additional Optional Accessories

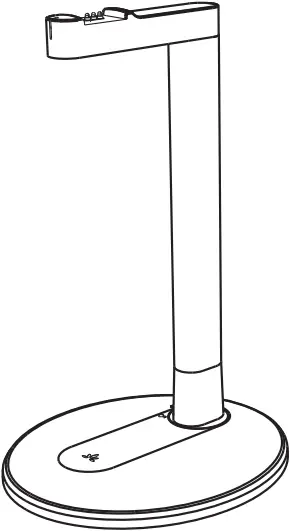

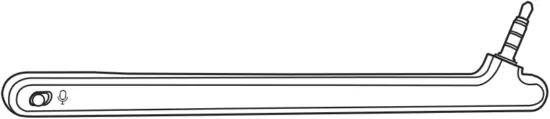

Detachable boom mic      Aria Me Charging Holder

Any questions? Please visit:

support.avantree.com
(User Manuals, FAQ, Video Tutorials and more)

Email support: [email protected] (Response Time: 1 working day)
Live chat: www.avantree.com

Basic Operations

	Power ON – Slide the power switch to middle position Power OFF – Slide the power switch to Pairing Mode – Slide power switch to and hold 3s until LED flashes BLUE & RED alternately.
	Play / Pause music – Press once Volume up / down – Press once Next / Previous track – Hold for 2s		Answer / End a call – Press once Last number redial – Press twice Reject a call – Hold for 2s during an incoming call Activate / Deactivate Voice Assistant – Press once
	Activate ANC – (Power ON status) Deactivate ANC –

Note: Availability of some functions may be device dependent.

Note: When headphones streaming audio with activated Custom Profile in Bluetooth Mode, LED turns WHITE from BLUE.

Bluetooth Pairing

• Enter the headphones into Pairing Mode. (On 1st use, it will enter PAIRING MODE automatically when turned ON.)
• Activate Bluetooth on your phone and select “Avantree Aria Me S” from menu. Once paired you’ll hear “connected.”

Reconnection

Normally, when the next time you turn on Avantree Aria Me S, it will automatically reconnect the last paired device. Alternatively, Slide the power switch to right once then release to enter into its Reconnection Mode.

Use with PC/Laptop

• Set the headphones into Pairing Mode as above.
• Activate Bluetooth function on your PC/ Laptop, search & select “Avantree Aria Me S” to pair and connect.
• Once connected, please set “Avantree Aria Me S” as the default Sound Output/ Playback and input / Microphone device. (For VOIP calls such as Skype and Zoom, please set “Avantree Aria Me S Hands-free Headset” as microphone and speaker device in their respective Audio Setting menus.)

Please contact us at [email protected] if you have trouble setting up.

Custom Audio Function

Please ensure your headphones are CONNECTED via Bluetooth to your phone!

• Install the “Avantree Audio” app from Google Play or the Apple App store
• Launch the app and follow the on-screen instructions to register or login to your account
• Select “Avantree Aria Me S” from the list of Avantree devices. The app will display “Connected” once the headphones and app are successfully connected
• Tap on the navigation menu “” and select “CREATE AUDIO PROFILE” then follow the instructions to perform a 2-3 minute hearing test. To ensure a consistent result we recommend you complete the test in one sitting. Once you complete the hearing test and save it as a custom ‘profile’, it will be auto-uploaded onto the headphones and the Custom Audio Function of the headphones will be activated.

To switch profiles,tap on “MY AUDIO PROFILES” via the navigation menu ““and select your desired profile. Tap “APPLY” then “START” to upload and activate the profile on the headphones.

Turn Custom Audio Profile ON/OFF

While playing audio in Bluetooth mode, toggle the custom audio processing ON/ OFF by pressing and holding for 2s until you hear “Custom Profile ON”/”Custom Profile OFF”. You can check the headphones audio processing state by the LED indicator while streaming audio:
Custom Audio Profile ON – LED flashes WHITE
Custom Audio Profile OFF – LED flashes BLUE
Note: Once the Custom Audio Profile is uploaded and activated, all the audio received via Bluetooth will be processed using your personal hearing profile. This works even if you connect your headphones to another phone or even a Bluetooth enabled PC.

Any questions please contact [email protected] directly or search Aria Me S (AS90TA-S) on www.avantree.com; www.youtube.com to get the latest product info.

Using as a wired headphone

Use the supplied 3.5mm audio cable to connect to a non-Bluetooth device, or if the headphone battery is depleted.
Notes:

• If you wish to use the ANC function in wired mode, please check the battery level and turn on the headphones first.
• The button controls, microphone and custom audio functions do NOT work in wired mode.

Charging

Please charge the headphones when you hear the “low battery” voice prompt, or when the LED indicator shows RED. Please plug it into a USB wall charger (DC 5V / 0.5-2A) or a powered USB port via the USB Type C cable that we provided.

Normally it takes 2 hours to fully recharge. The LED indicator on the headphones will remain RED while charging and automatically turn off when charging is complete.

Note: Contact us at [email protected] for a FREE USB wall charger (for US / UK / EU ) if you need one.

Z-PKQG- AS9OTA-S-V1
